Graco XP70 User Manual

Parts
3A0420ZAF 75

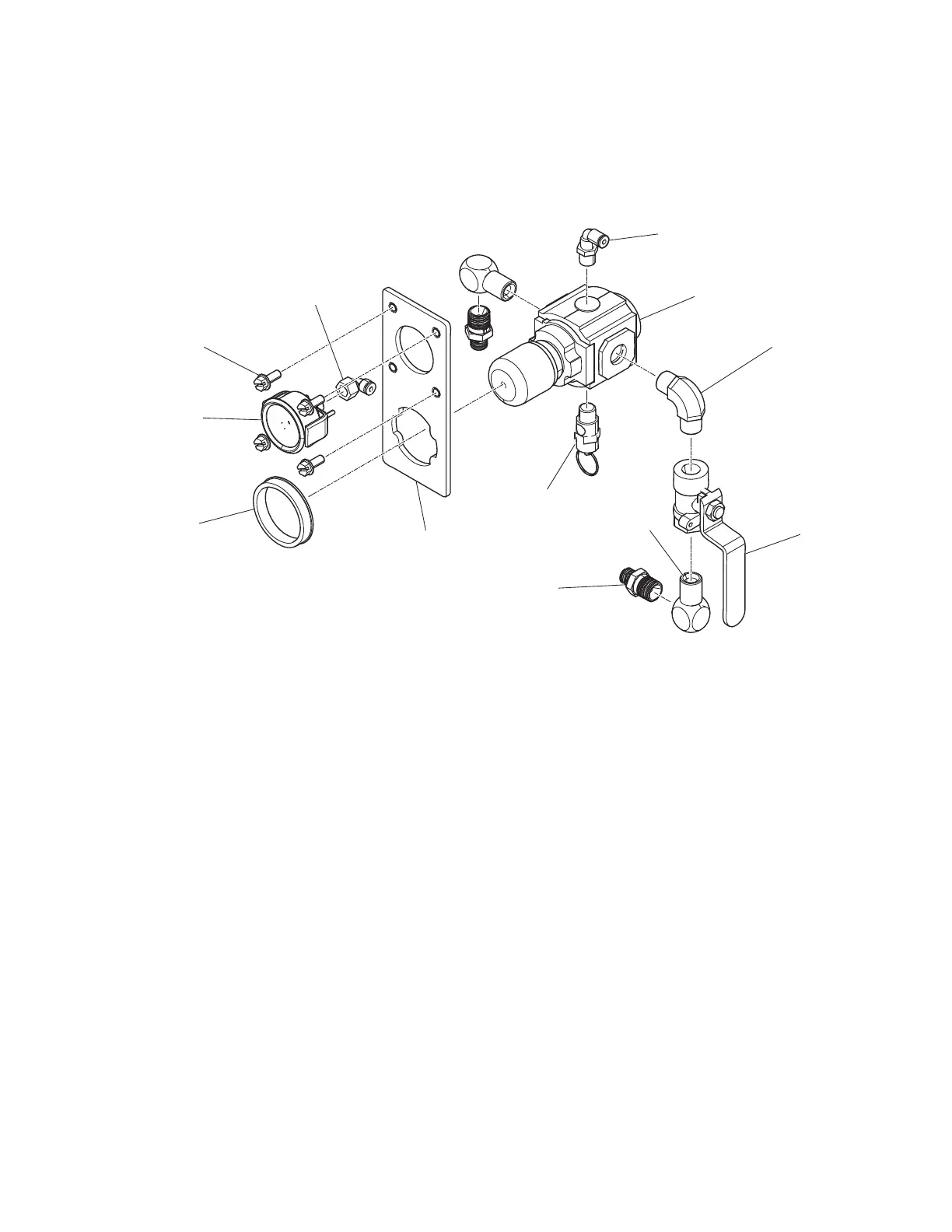

Solvent Air Control Parts
24F126
Parts List
WLD












Ref. Part Description Qty.
551 - - - - - PANEL, air controls, slvt, painted
1
552 15T500 GAUGE, pressure, air, pl mnt, 1/8
1
553 15T536 REGULATOR, air, 3/8 npt
1
554 16F810 NUT, regulator, steel
1
555 114362 VALVE, ball, air
1
556 15T498 FITTING, 90 , swvl, 5/32 t x 1/8 fnpt
1
558 113498 VALVE, safety, 110 psi
1
559 15T937 FITTING, elbow, swivel 1/4 npt x 5/32 t
1
560 155699 FITTING, elbow, street
2
561 164672 ADAPTER
2
563 054753 TUBE, nylon, rd, black
0.75
568 108296 SCREW, mach, hex wash hd
4
569 109544 FITTING, elbow, pipe, male
1

Graco XP70 Specifications

General

Fluid Output	2.0 gpm (7.6 lpm)
Fluid Delivery	2.0 gpm (7.6 lpm)
Maximum Fluid Working Pressure	7250 psi (500 bar)
Maximum Air Input Pressure	100 psi (7 bar)
Fluid Outlet Size	3/8 in npsm(m)
Wetted Parts	Stainless Steel, PTFE, UHMWPE
Maximum Pressure	7250 psi (500 bar, 50 MPa)
Hose Length	50 ft
