Graco XP70 - Park and Shutdown Procedures

Operation
42 3A0420ZAF

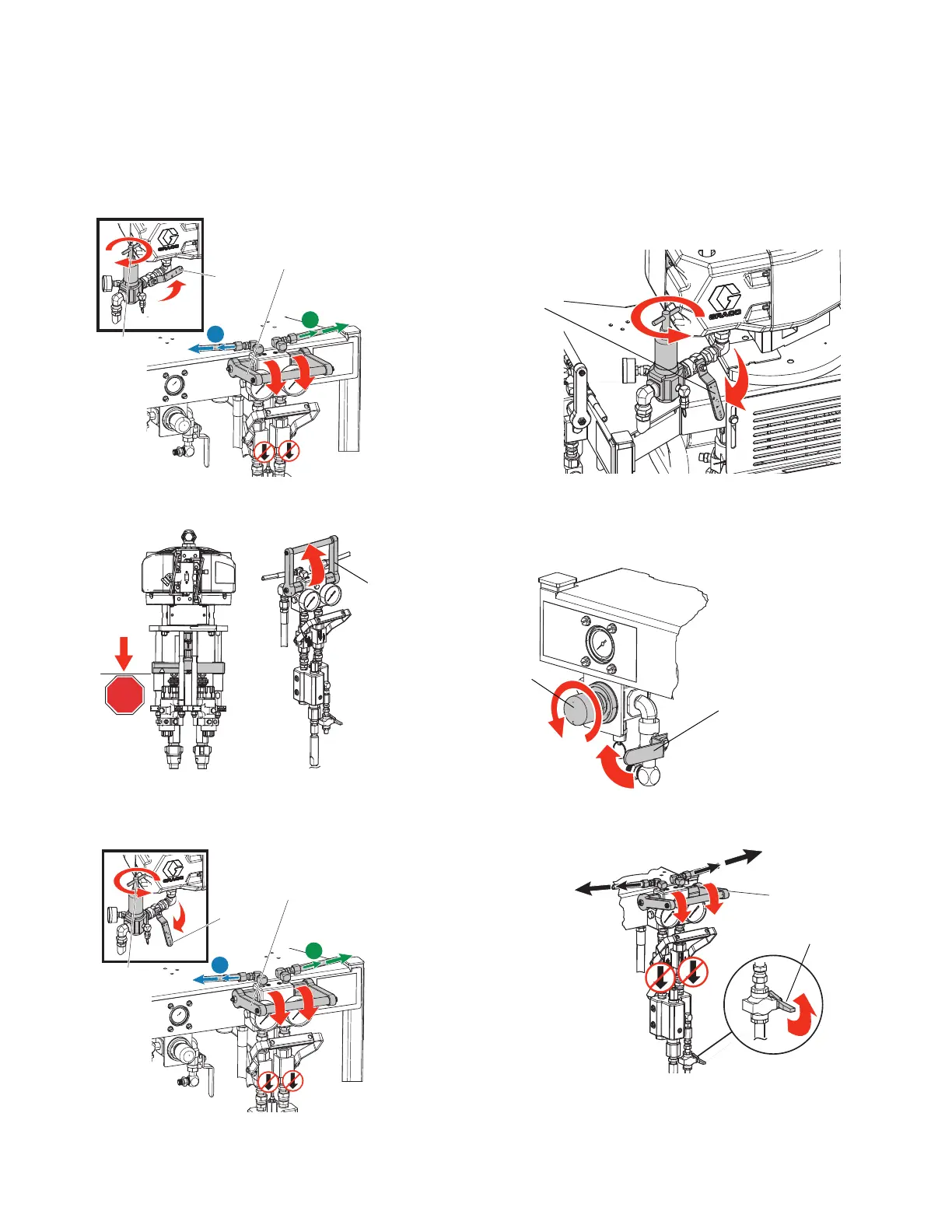

Park
1. Lower to open the circulation handle (FC) and adjust
the air regulator (MB) so that the pump runs slowly.
2. Lift to close the circulation handle (FC) when the
pump is at the bottom of the stroke.
3. Close the motor air valve (MA) and turn the air
regulator (MB) counterclockwise. Lower to open the
circulation handle (FC).
Shutdown
1. Flush mix manifold, hoses, and gun. Follow Flush
Mix Manifold, Hose, and Spray Gun, page 37.
2. Make sure the main air shutoff valve (MA) is closed.
3. Make sure the solvent air valve (DA) is closed and
the solvent air regulator (DB) is turned fully
counterclockwise.
4. Close solvent flush valve (FD) and lower
re-circulation handle (FC).
WLD
B
A
$&
&%
&$
MA
FC
MB
WLD
0
STOP
AC
FC
FC
WLD
B
A
$&
&%
&$
MA
MB
FC
WLD
MA
WLD
DB
DA
WLD
$&
FC
FD
