Graco XP70 - 45:1 Solvent Flush Pump Kit 262393 (Optional)

Component Identification
3A0420ZAF 19
45:1 Solvent Flush Pump Kit 262393 (optional)
Pump
Air Controls

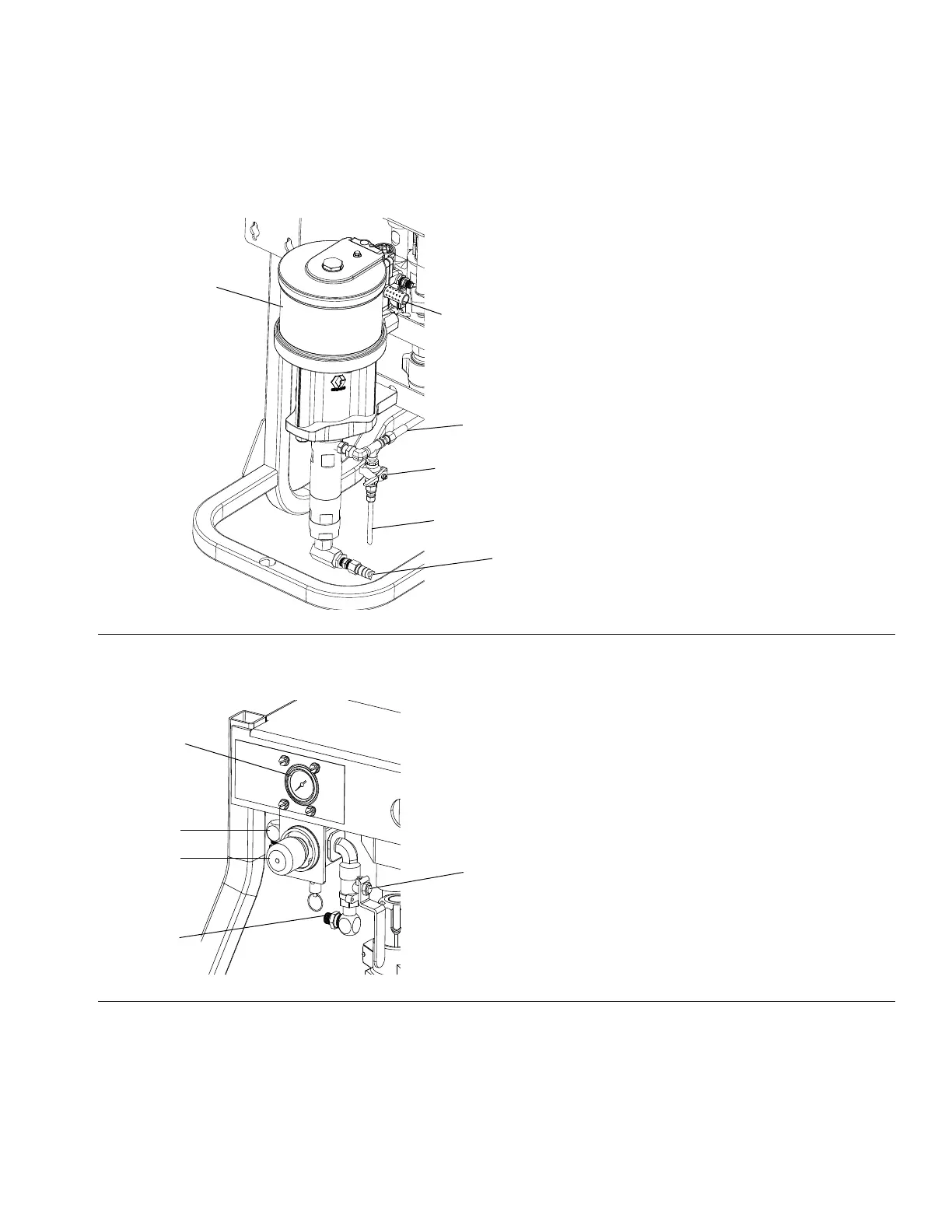

FIG. 5: Solvent Flush Pump Kit Pump
Key:
BA Solvent flush pump (Merkur Pump)
BB Fluid Inlet
BD Muffler
BE Prime/Flush/Sample valve
BF Fluid Outlet Hose
BG Circulation hose
BA
BB (suction hose not shown)
BD
BG
BF
r_571100_3a0420a_4a-2
BE
FIG. 6: Solvent Flush Pump Kit Air Controls
Key:
DA Solvent Pump Air Shutoff Valve (Relieving)
DB Solvent Pump Air Pressure Regulator
DC Solvent Pump Air Pressure Gauge
DD Air Outlet
DE Air Inlet
DC
DB
DA
r_571101_3a0420a_5a-2
DD
DE
