Parts
3A0420ZAF 77

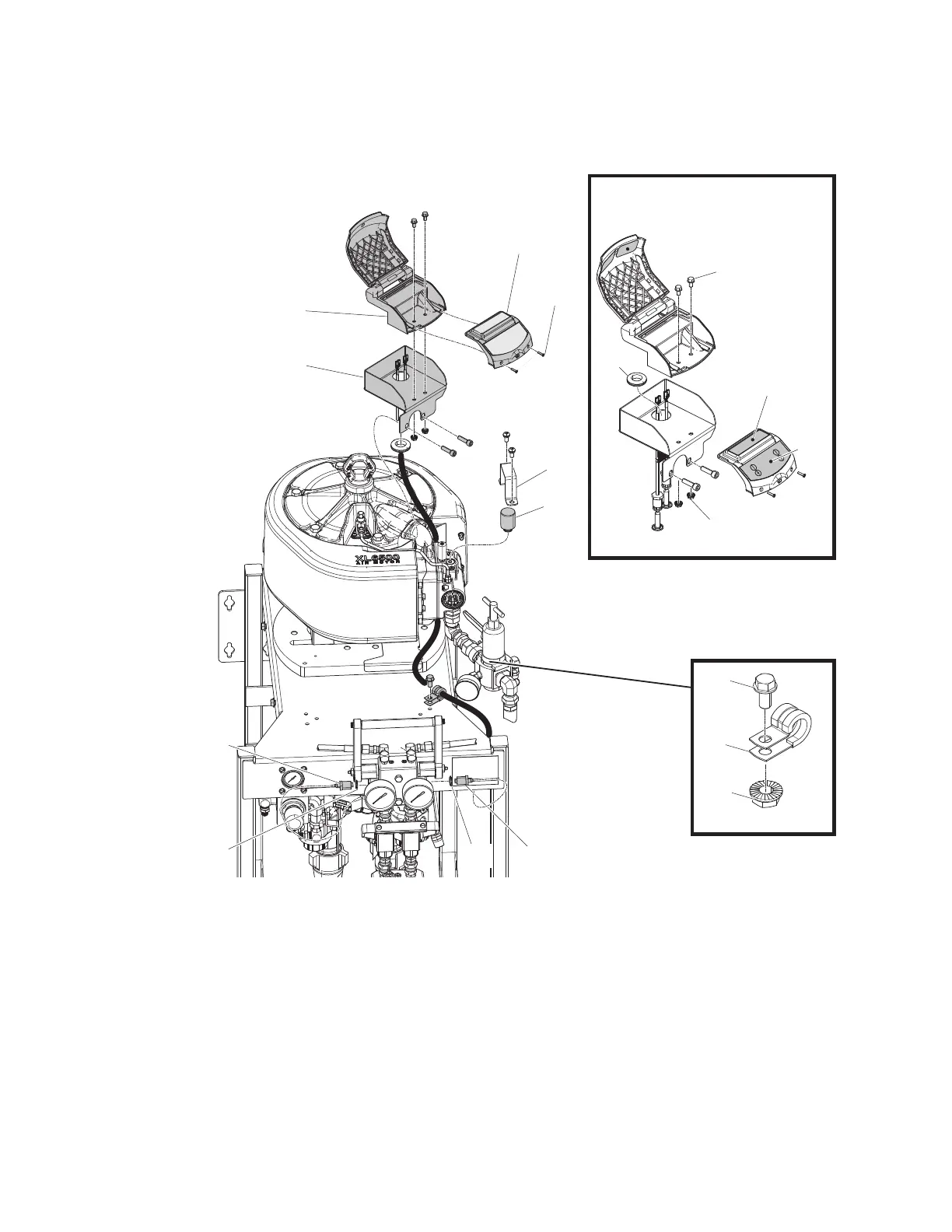

PressureTrak Kit (26C426 - XP35, 26C427 - XP50/XP70)
WLD


















Ref. Part Description Qty.
701 26C424 BRACKET, XL34 (26C426)
1
26C418 BRACKET, XL65 (26C427)
1
702 16C251 GROMMET
1
703 24Y932 HOUSING
1
704 113161 SCREW
3
705 115942 NUT, hex, flange head
3
706 24Z940 MODULE
1
707 17N936 SENSOR, PressureTrak,
assembly
2
708 15F477 SOLENOID, locking, DC
1
709 120279 SCREW, hi-low, flat hd #6 x 0.625
2
712 24V216 KIT, repair, fuse assembly
(not shown)
1
713 15F716 LABEL, warning
1
717 17R738 BRACKET, solenoid, XL
1
718 NXT405 KIT, membrane shield (pack of 20)
1
719 121399 PACKING, o-ring
2
720 128769 CLAMP, cable
1
Replacement Danger and Warning labels are
available at no cost.
Ref. Part Description Qty.
