Operation
32 3A0420ZAF

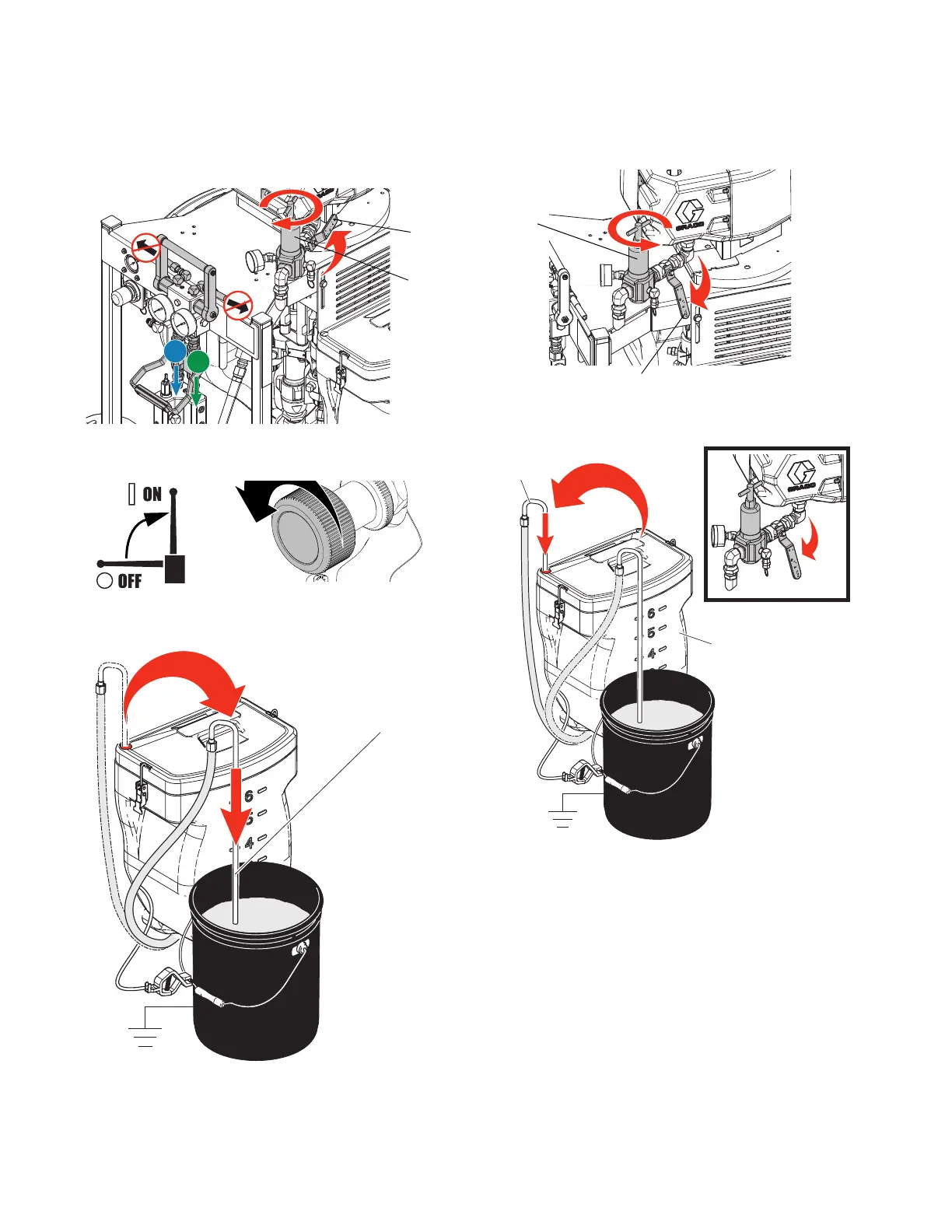

6. XP Systems only: Open the main air shutoff valve
(MA). Then slowly increase the air regulator
pressure (MB).
XP-h Systems only: Set pump valve on. Then turn
down the pressure control knob.
7. Dispense fluid into the containers until clean fluid
comes out of the A and B recirculation lines.
8. Decrease the air regulator pressure (MB). Close the
main air shutoff valve (MA).
9. Move the recirculation lines (U) back to the correct
hopper (J).
10. If using heaters, heat fluid throughout system before
spraying. See Recirculate Prior to Spraying or
Re-Prime After a Pump Runs Dry, page 34.
WLD
B
A
MB
MA
ti7108a
ti7111b
8
WLD
WLD
MA
MB
8
WLE
-

Graco XP70 Specifications

General

Fluid Output	2.0 gpm (7.6 lpm)
Fluid Delivery	2.0 gpm (7.6 lpm)
Maximum Fluid Working Pressure	7250 psi (500 bar)
Maximum Air Input Pressure	100 psi (7 bar)
Fluid Outlet Size	3/8 in npsm(m)
Wetted Parts	Stainless Steel, PTFE, UHMWPE
Maximum Pressure	7250 psi (500 bar, 50 MPa)
Hose Length	50 ft
