Operation
38 3A0420ZAF

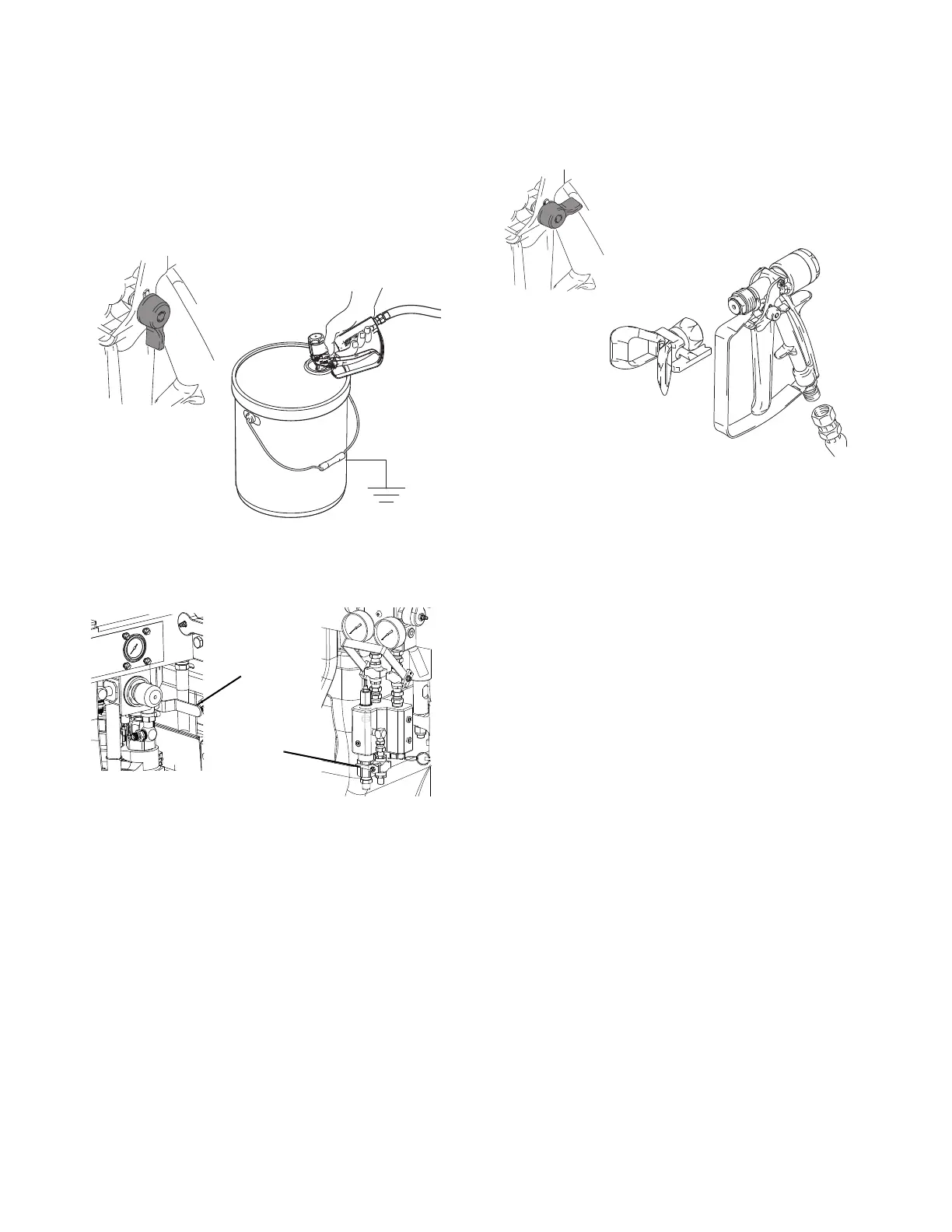

7. Disengage the trigger lock, hold the gun against a
grounded metal pail, and trigger the gun into the
pail. Use a pail lid with a hole to dispense through.
Seal around the hole and gun with a rag to prevent
splash back. Be careful to keep fingers away from
the front of the gun. Continue flushing until clean
solvent dispenses.
8. Close the solvent pump air valve (DA). Trigger the
gun to relieve pressure. Close the solvent flush
valve (FD) after relieving the pressure.
9. Follow Pressure Relief Procedure, page 30.
10. Engage the trigger lock. Disassemble and clean the
spray tip with solvent by hand. Reinstall on the gun.
WLD
FD
DA
ti1948a

Graco XP70 Specifications

General

Fluid Output	2.0 gpm (7.6 lpm)
Fluid Delivery	2.0 gpm (7.6 lpm)
Maximum Fluid Working Pressure	7250 psi (500 bar)
Maximum Air Input Pressure	100 psi (7 bar)
Fluid Outlet Size	3/8 in npsm(m)
Wetted Parts	Stainless Steel, PTFE, UHMWPE
Maximum Pressure	7250 psi (500 bar, 50 MPa)
Hose Length	50 ft
