Graco XP70 User Manual

Dimensions
88 3A0420ZAF

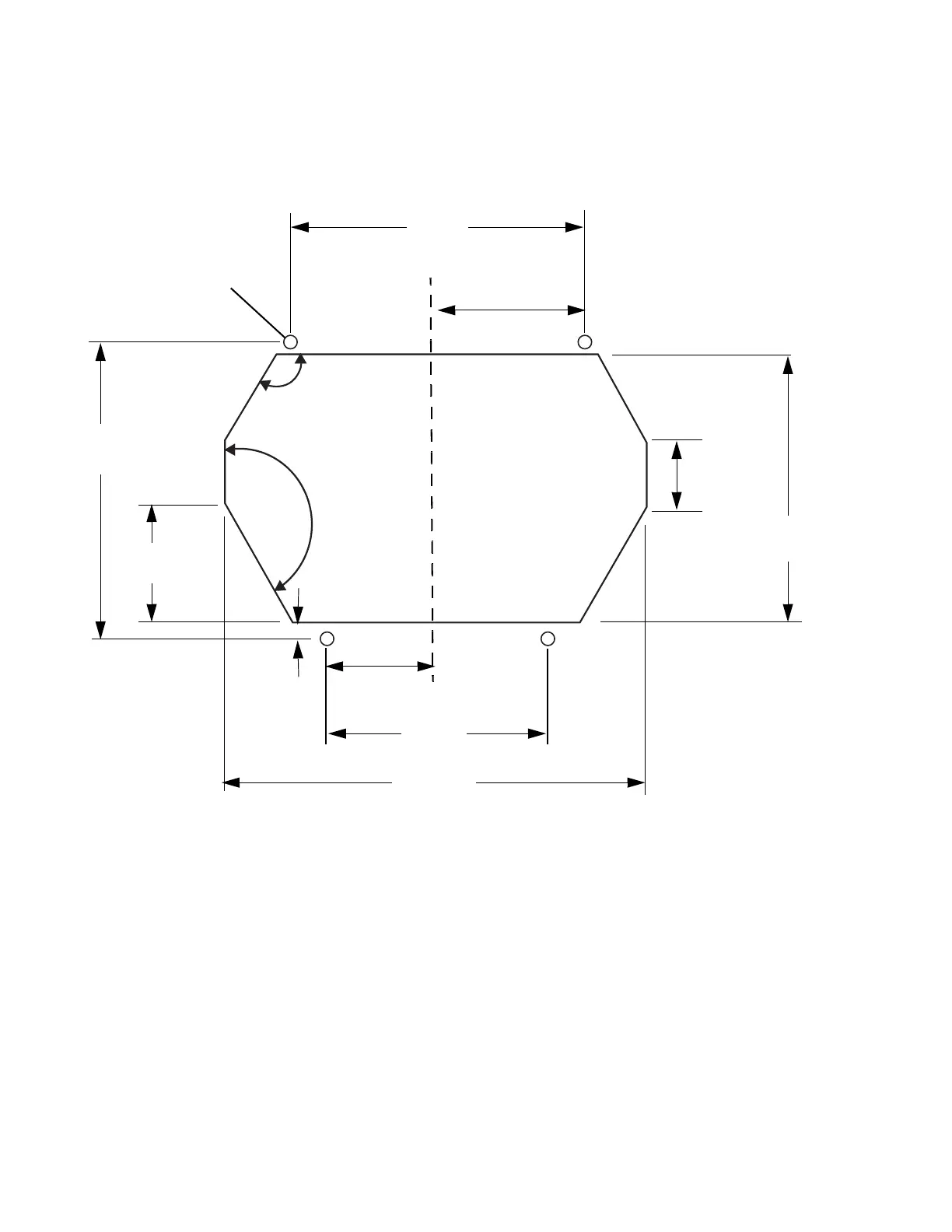

Bare Proportioner Mounting Hole Dimensions
The dimensions below is the minimum opening size for mounting a bare proportioner.
7.5 in.
(19.05 cm)
3.75 in.
(9.5 cm)
5.06 in.
(12.8 cm)
10.375 in.
(26.3 cm)
3/8-16 (4x)
10.125 in.
(25.7. cm)
14.35 in.
(36.4 cm)
9.25 in.
(23.4 cm)
0.25 in.
(0.63 cm)
150° (4x)
120° (4x)
2.25 in.
(5.7. cm)
4.05 in.
(10.2 cm)

Graco XP70 Specifications

General

Fluid Output	2.0 gpm (7.6 lpm)
Fluid Delivery	2.0 gpm (7.6 lpm)
Maximum Fluid Working Pressure	7250 psi (500 bar)
Maximum Air Input Pressure	100 psi (7 bar)
Fluid Outlet Size	3/8 in npsm(m)
Wetted Parts	Stainless Steel, PTFE, UHMWPE
Maximum Pressure	7250 psi (500 bar, 50 MPa)
Hose Length	50 ft
