Graco XP70 User Manual

Dimensions
90 3A0420ZAF

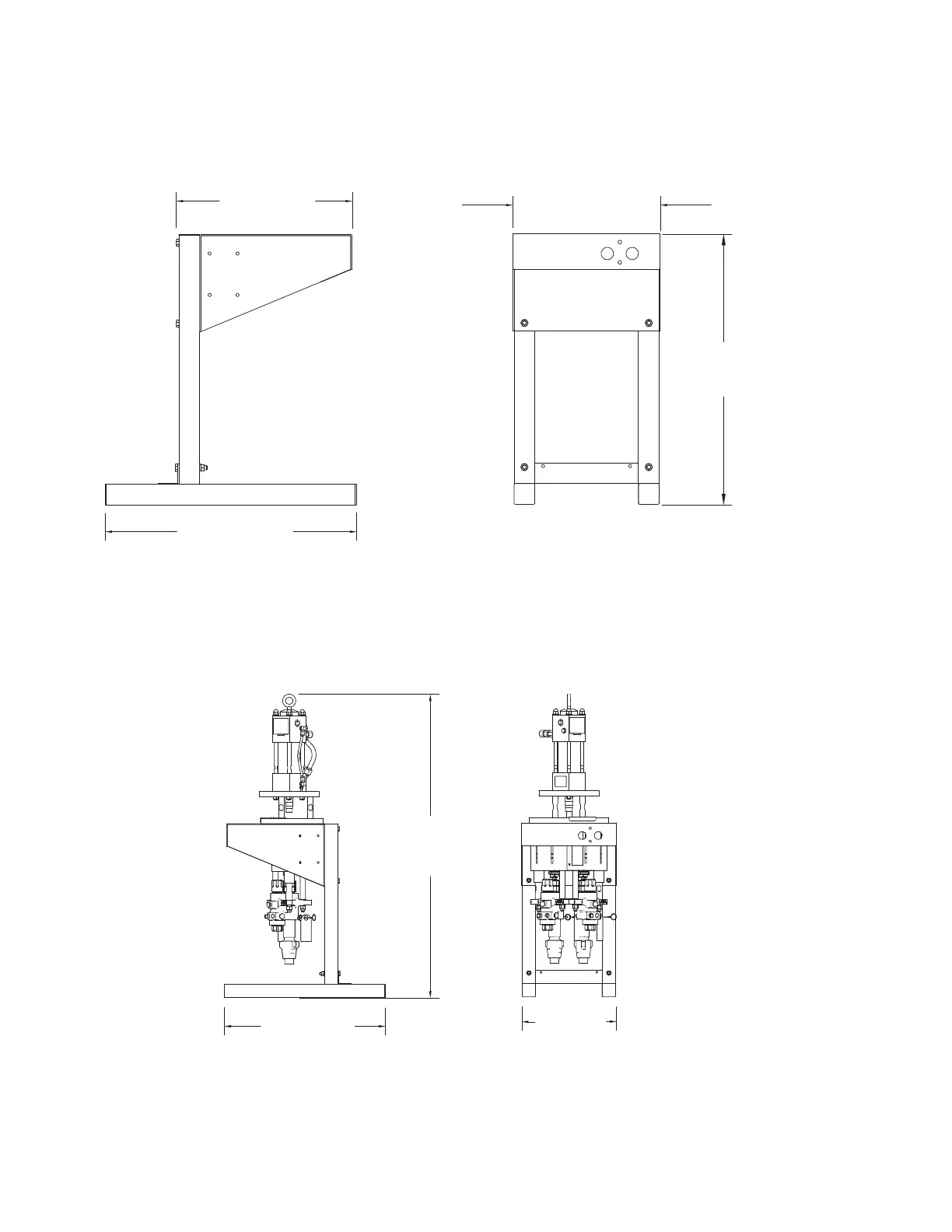

Floor Stand 24M281 Dimensions
Hydraulic Unit Dimensions
ti19047a
21.2 in.
(53.8 cm)
30.3 in.
(77.0 cm)
17.8 in.
(45.1 cm)
32.7 in.
(82.9 cm)
ti19048a
53 in.
(134.6 cm)
30.3 in.
(77.0 cm)
17.8 in.
(45.1 cm)
Shown installed on floor stand

Graco XP70 Specifications

General

Fluid Output	2.0 gpm (7.6 lpm)
Fluid Delivery	2.0 gpm (7.6 lpm)
Maximum Fluid Working Pressure	7250 psi (500 bar)
Maximum Air Input Pressure	100 psi (7 bar)
Fluid Outlet Size	3/8 in npsm(m)
Wetted Parts	Stainless Steel, PTFE, UHMWPE
Maximum Pressure	7250 psi (500 bar, 50 MPa)
Hose Length	50 ft
