GDS3705 User Manual
Version 1.0.1.16
GDS3705 Back Cover Connections

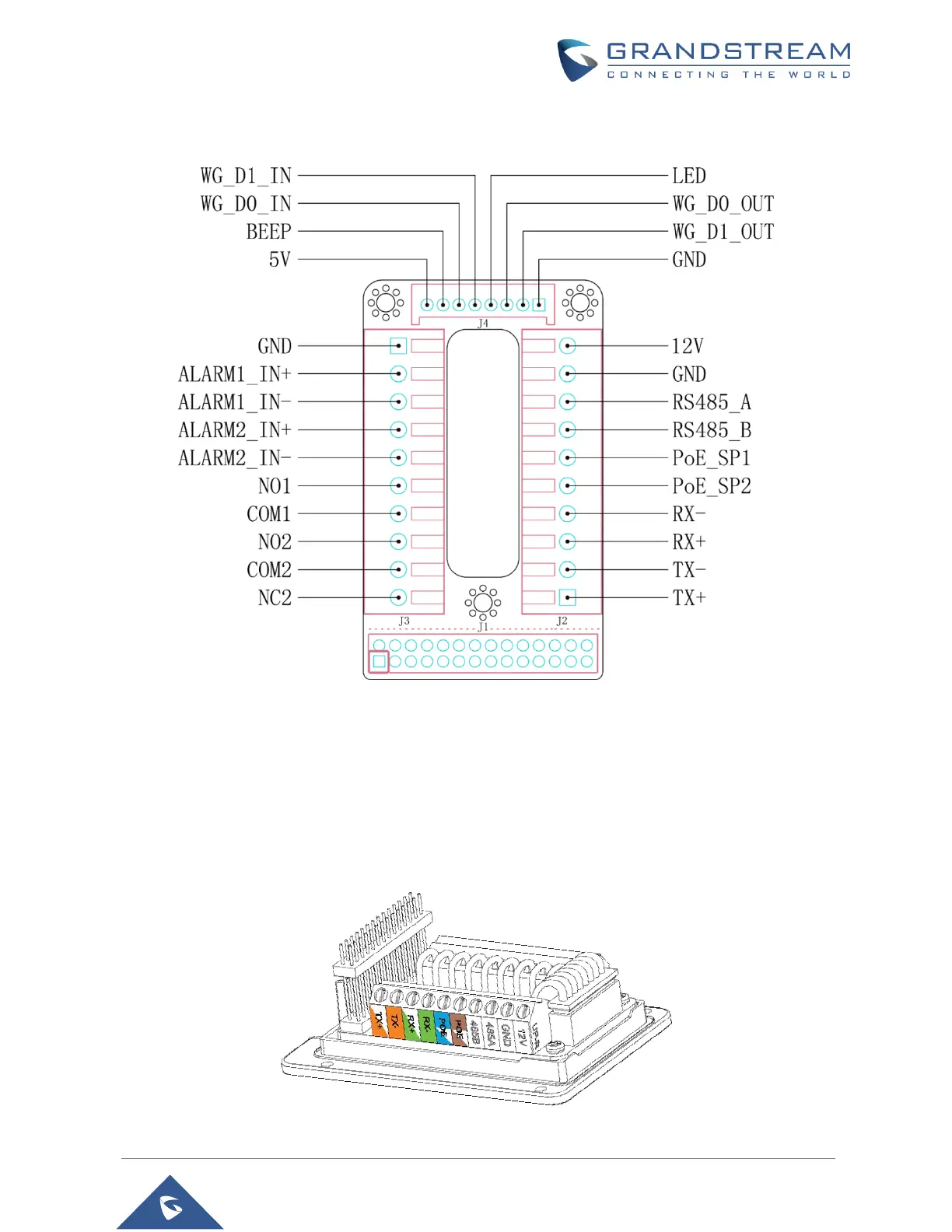

Figure 4: GDS3705 Back Cover Connections
Connection Example
To connect the GDS either by using PoE or PSU follow steps below:
 Open the Back-Cover Board of the GDS3705 which should look like following figure.
Figure 5: GDS3705 Back Cover
