Grandstream Networks GDS3705 User Manual

P a g e | 43
GDS3705 User Manual
Version 1.0.1.16
Open Door via GDS3705 with or without a SIP Call
This feature needs related matching GDS3705 firmware to work. The minimum firmware version needed:
 GDS3705: 1.0.1.16 or higher.
From GDS3705 side, the configuration is the same. Only difference is the number of doors to be controlled:
If using Local Relay controlled by GDS3705, TWO DOORS can be controlled.
If using GSC3570 Relay, ONLY ONE DOOR can be controlled. The PIN and other settings are the same
as SIP remote open door or GSC3570 secure open door.
The difference will come out at the touch screen UI operation of GSC3570.

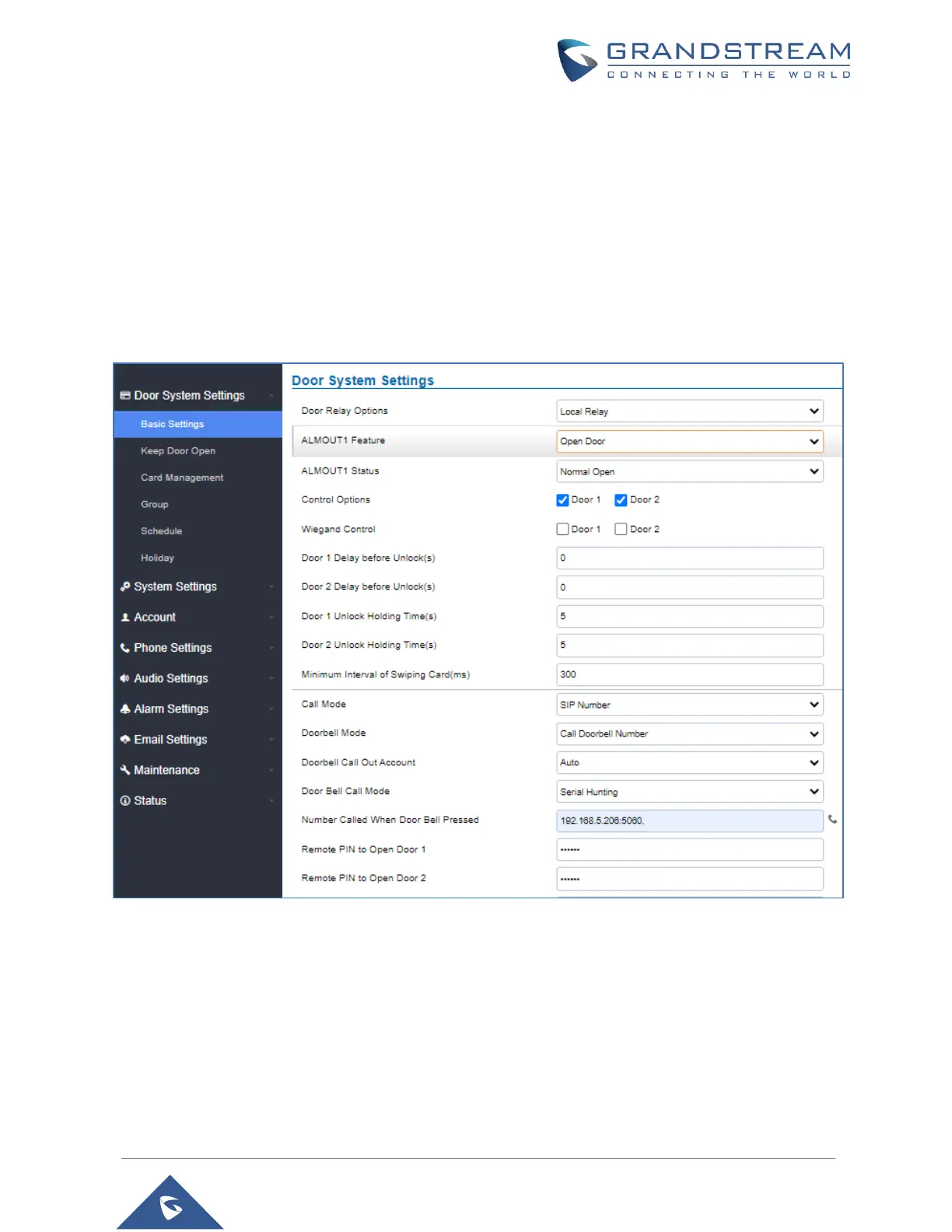

Figure 31: GDS3705 Configuration Example

Grandstream Networks GDS3705 Specifications

General

Brand	Grandstream Networks
Model	GDS3705
Category	Intercom System
Language	English
