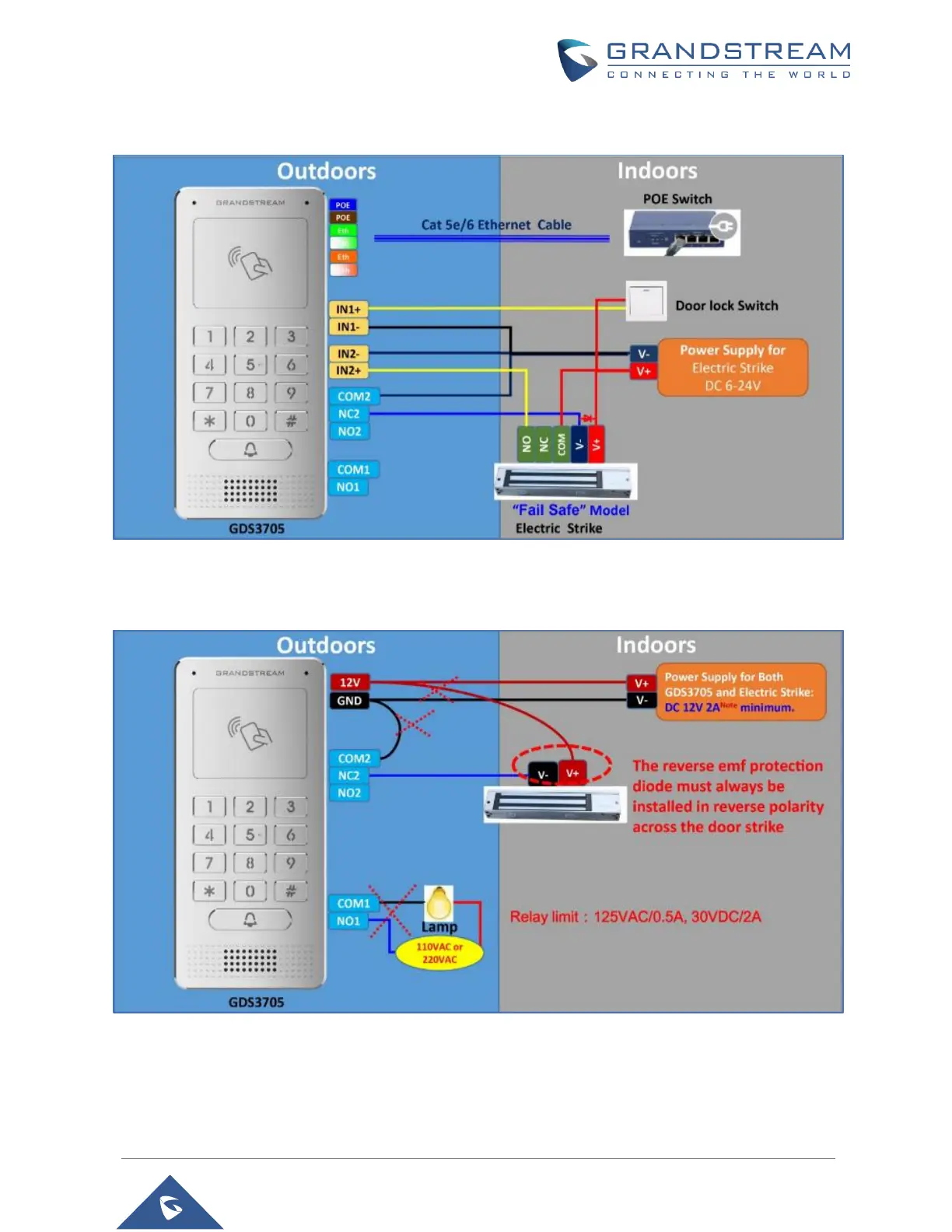

Wiring Sample using PoE to power GDS3705 and 3
rd
Party Power Supply for Electric Strike
Figure 20: Wiring Sample using PoE to power GDS3705 and 3
rd
party Power Supply for Electric Strike
Warning: The following example should be avoided when powering the electric strike.
Figure 21: Example to Avoid when Powering the Electric Strike
