P a g e | 38
GDS3705 User Manual
Version 1.0.1.16
Good Wiring Sample for Electric Strike and High-Power Device

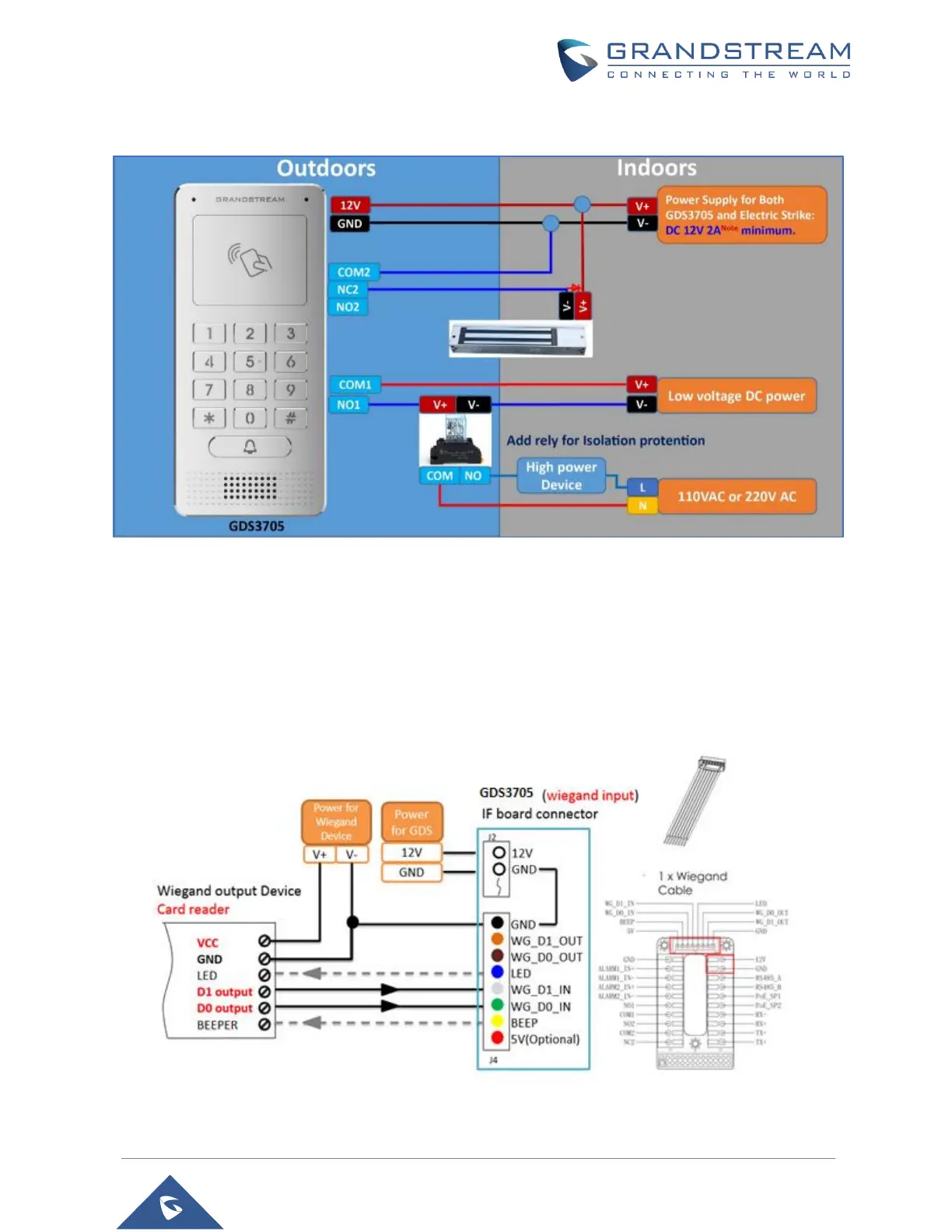

Figure 22: Electric Strike and High-Power Device Example
Wiegand Module Wiring Examples
GDS3705 package is shipped with one Wiegand cable for Input/Output Wiegand connections. The following
examples shows how to connect the Wiegand Input/Output devices to the GDS3705.
Input example with 3
rd
party power supply for Wiegand device
Figure 23: Wiegand Input Example with 3
rd
party Power Supply
