P a g e | 129

GXV3380 User Guide

Version 1.0.1.5

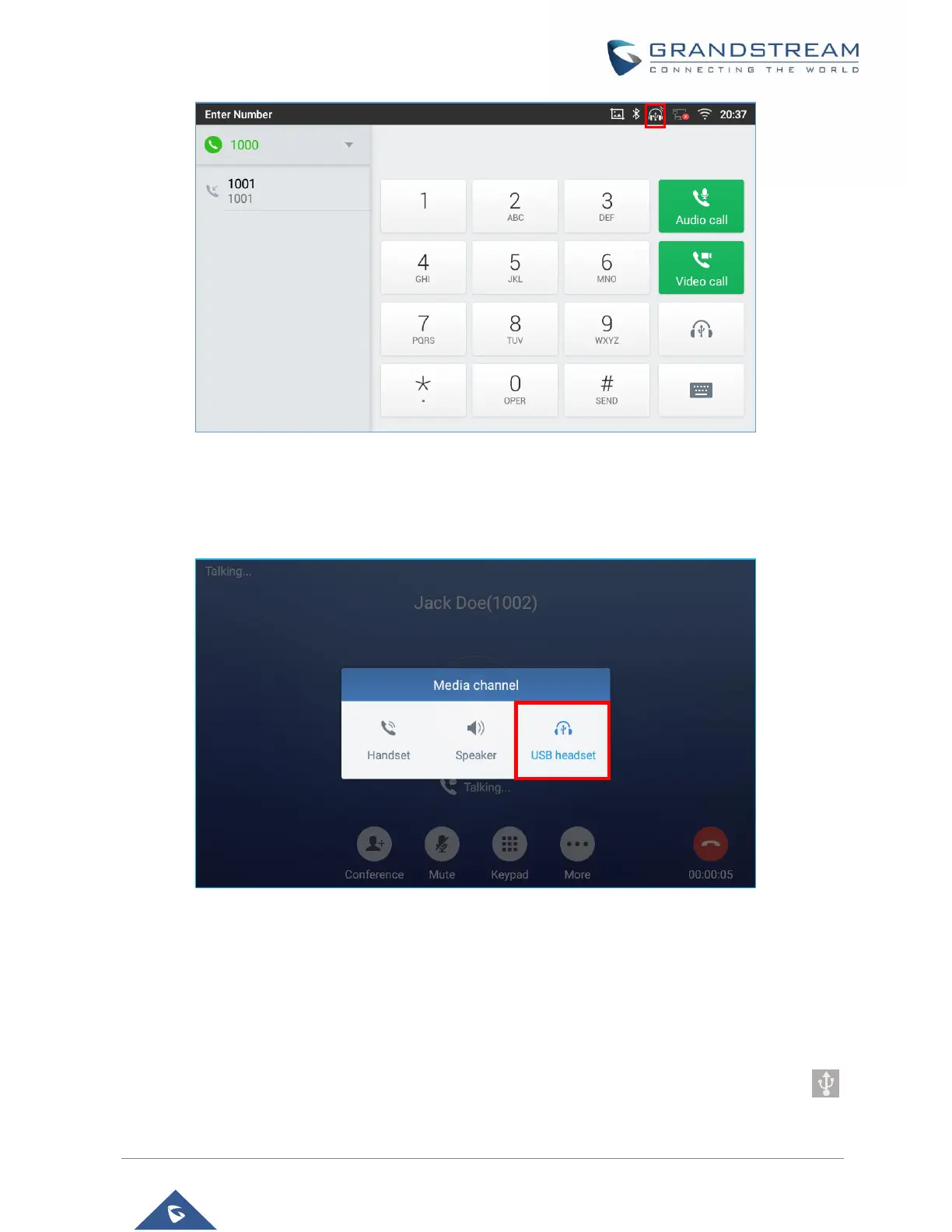

Figure 153: USB Headset Used for Call

During the call, users can tap on “More” then “Media Channel” to toggle between Handset Speaker and

USB Headset.

Figure 154: Switch Between Speaker and USB mode

USB

The GXV3380 supports USB connection with USB storage devices. To connect and access USB storage

device:

1. Insert an USB storage device into USB port at the back of the GXV3380.

2. It will take a few seconds for the GXV3380 to prepare the connection. Then the USB storage icon

will show on the status bar.
