Grandstream Networks GXV3380 User Manual

P a g e | 38
GXV3380 User Guide
Version 1.0.1.5
Use the Status Bar
The status bar on the top of the GXV3380 screen provides visual notifications for the system settings and
status, as well as quick access for important system settings. To access it, on the GXV3380 idle screen,
slowly slide down from the top to the bottom of the screen as the following figure shows.

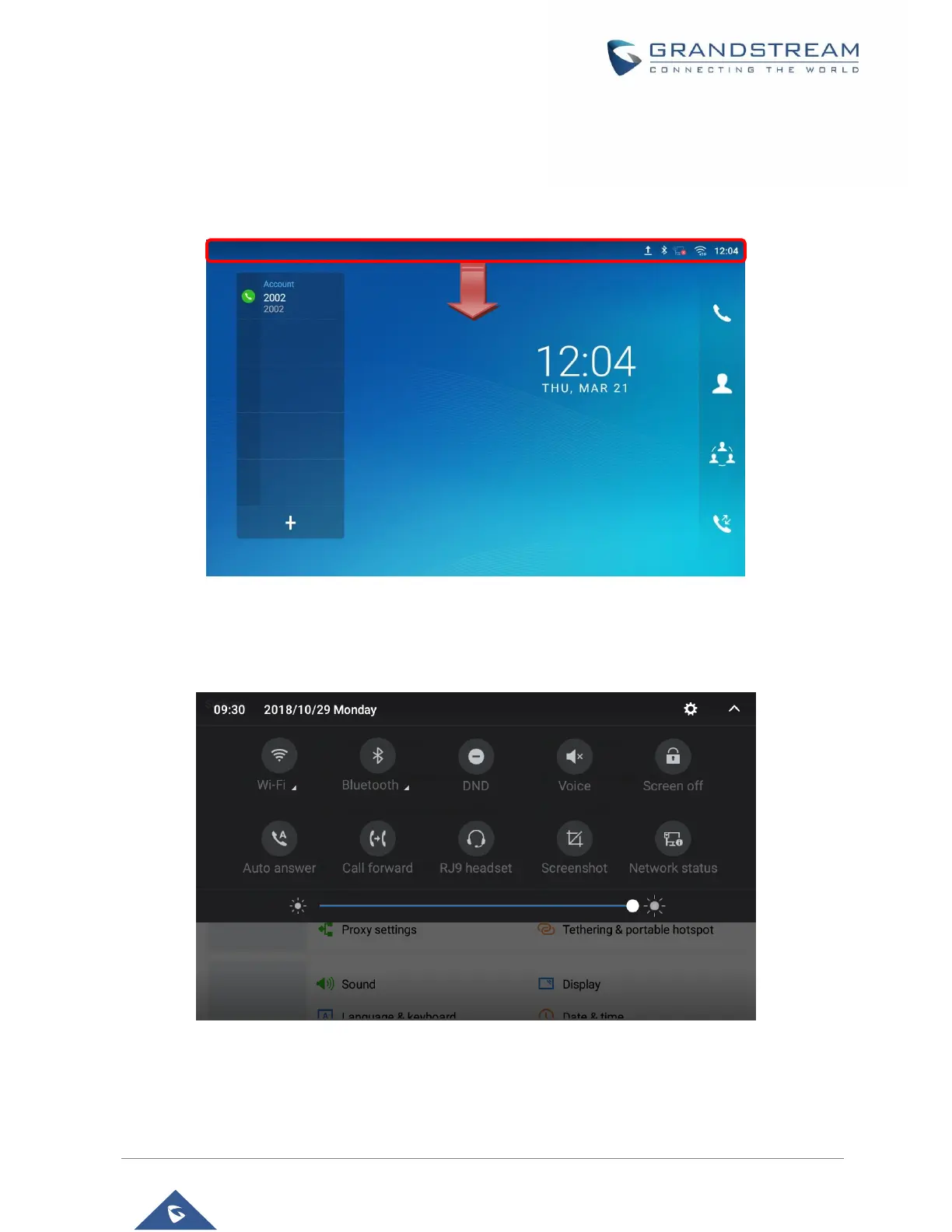

Figure 22: GXV3380 Top Status Bar
For more options on the Status Bar (brightness, call forward, RJ9 headset…) users can pull down the status
bar twice, or once with two fingers.
Figure 23: Status Bar - More Options
The running process and notifications will show up in the list. For example, the following figures indicate
that there is a notification for an available Wi-Fi network.

Grandstream Networks GXV3380 Specifications

General

Brand	Grandstream Networks
Model	GXV3380
Category	IP Phone
Language	English
