P a g e | 63

GXV3380 User Guide

Version 1.0.1.5

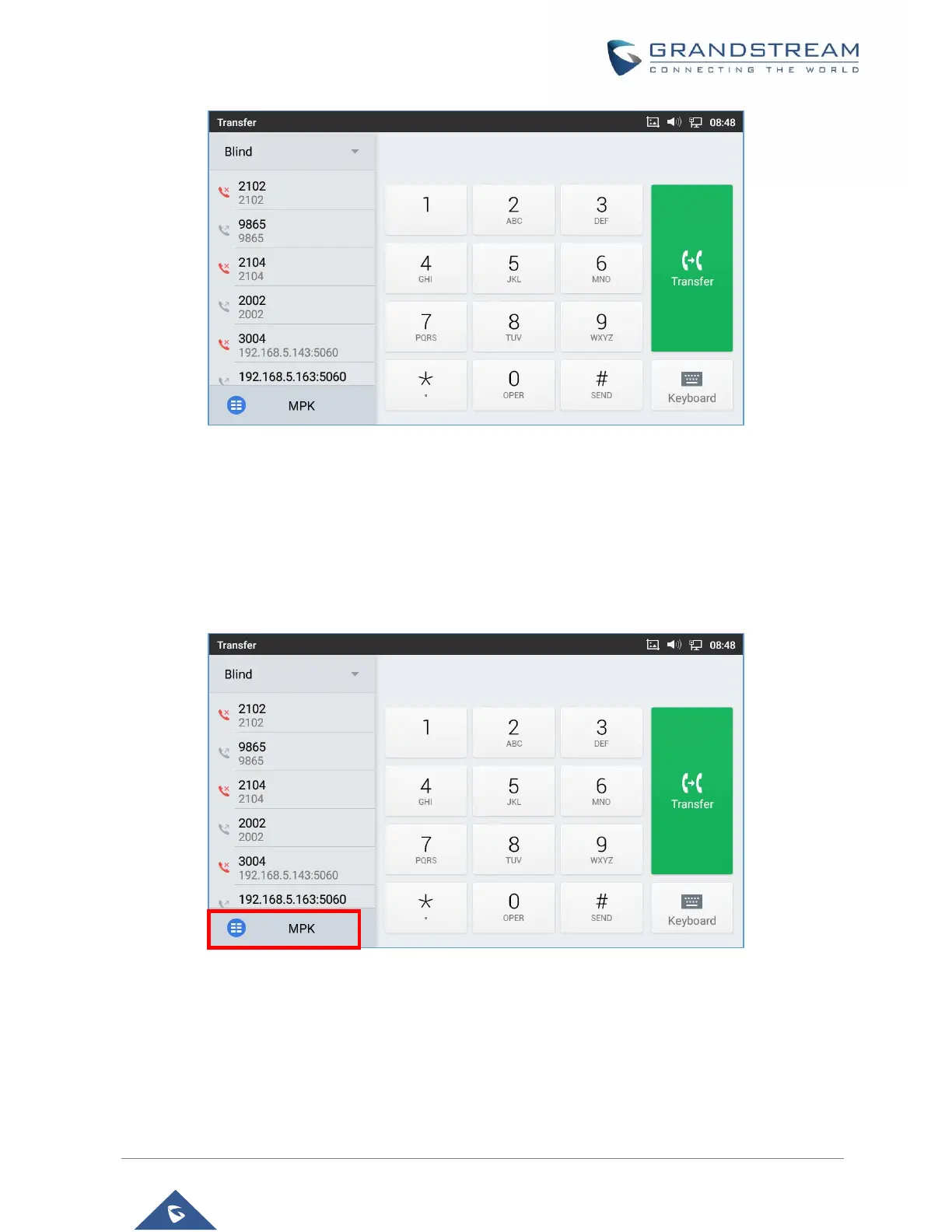

Figure 58: Attended Transfer

Transfer via MPKs

Users have the possibility to transfer calls via Transfer or non-transfer programmable keys (BLF keys)

1. During an active call, press the Transfer softkey then press on MPK

Figure 59: Transfer via MPK

2. Choose the destination to transfer calls to from the MPKs list
