P a g e | 71
UCM630xA Series User Manual
Version 1.0.9.10

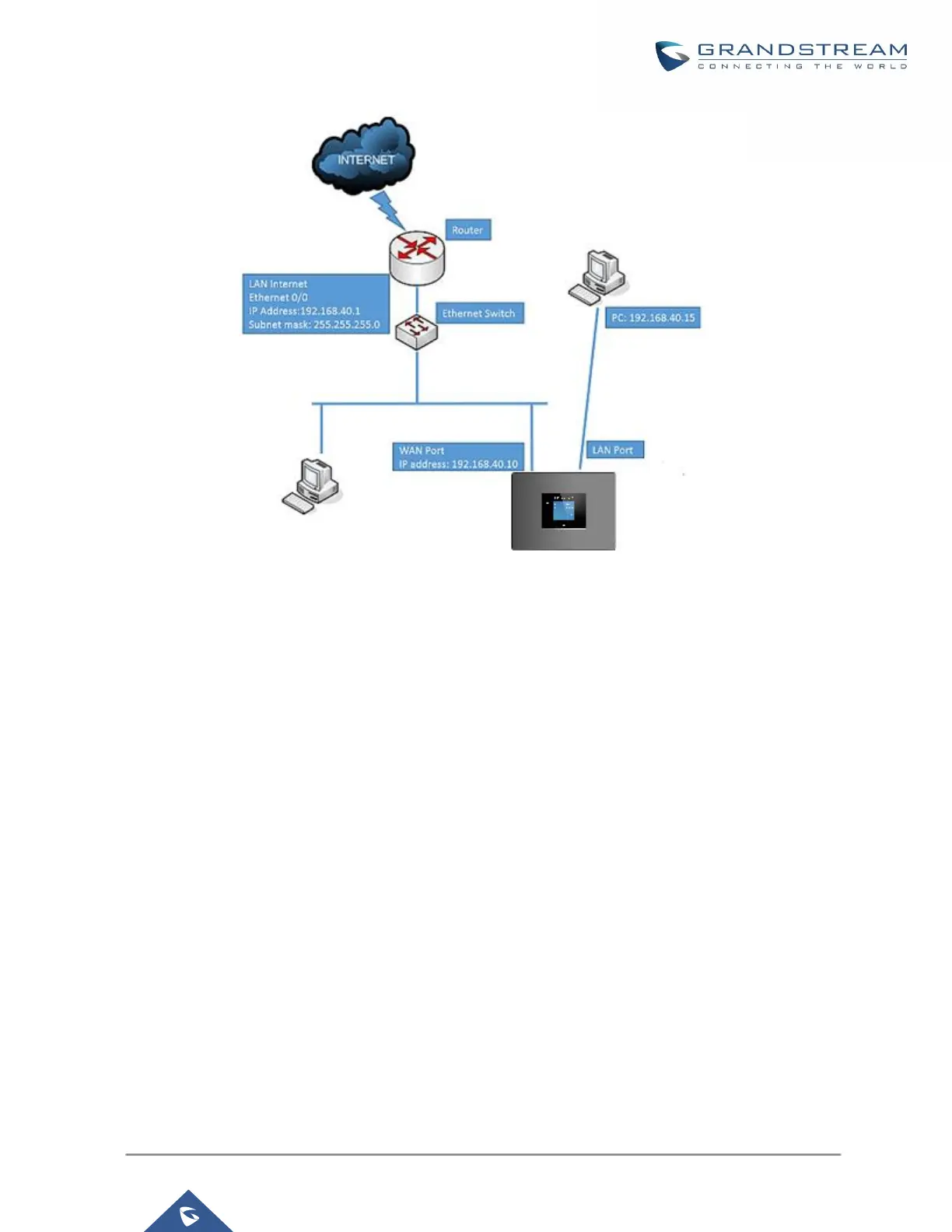

Figure 18: UCM6302A Network Interface Method: Switch
 Method: Dual
Both WAN port and LAN port are used for uplink connection. Users will need assign LAN 1 or LAN 2 as the
default interface in option "Default Interface" and configure "Gateway IP" if static IP is used for this interface.
