UCM630xA Series User Manual
Version 1.0.9.10

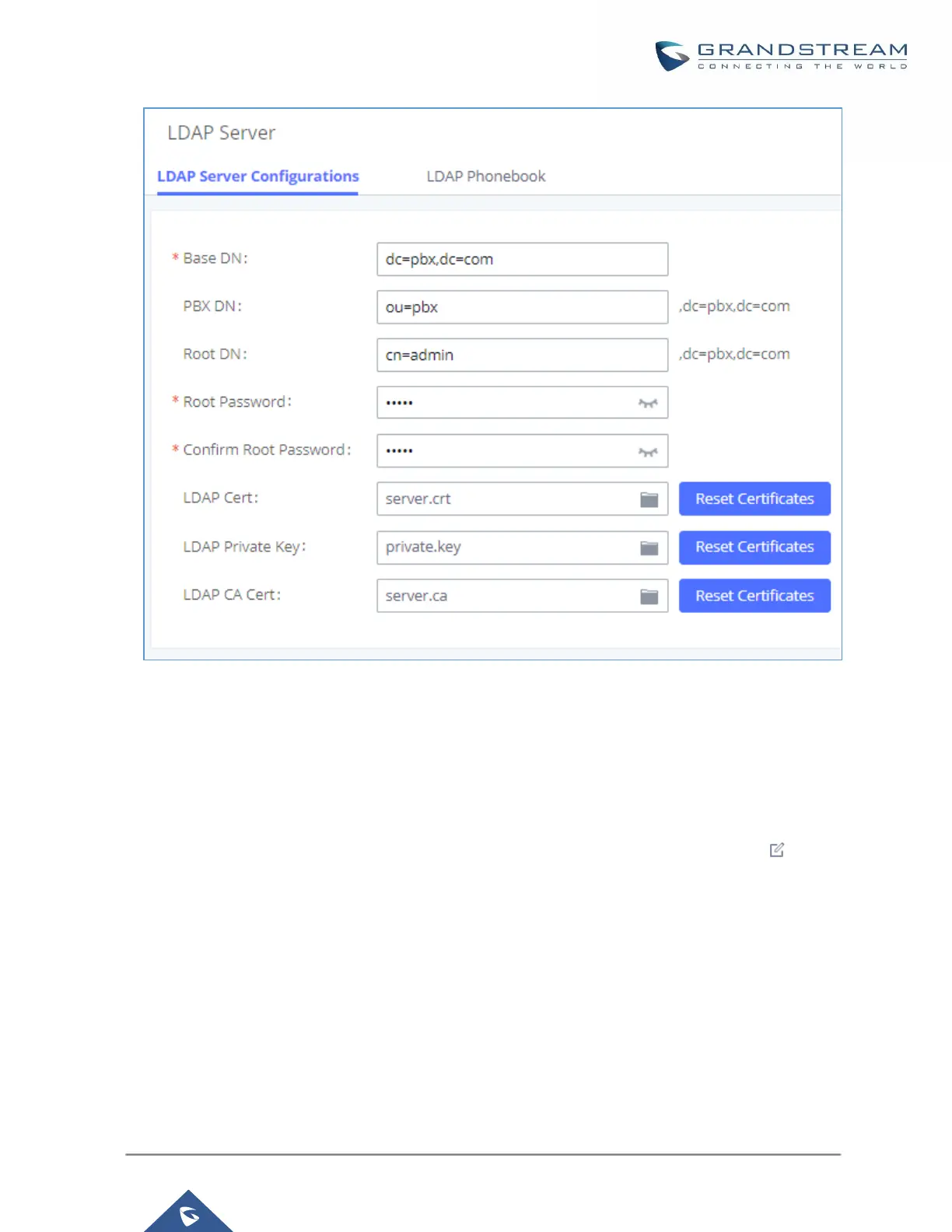

Figure 35: LDAP Server Configurations
The UCM630xA LDAP server supports anonymous access (read-only) by default. Therefore, the LDAP client
does not have to configure username and password to access the phonebook directory. The "Root DN" and
"Root Password" here are for LDAP management and configuration where users will need provide for
authentication purpose before modifying the LDAP information.
The default phonebook list in this LDAP server can be viewed and edited by clicking on for the first
phonebook under LDAP Phonebook.
The UCM630xA support secure LDAP (LDAPS) where the communication is encrypted and secure.
