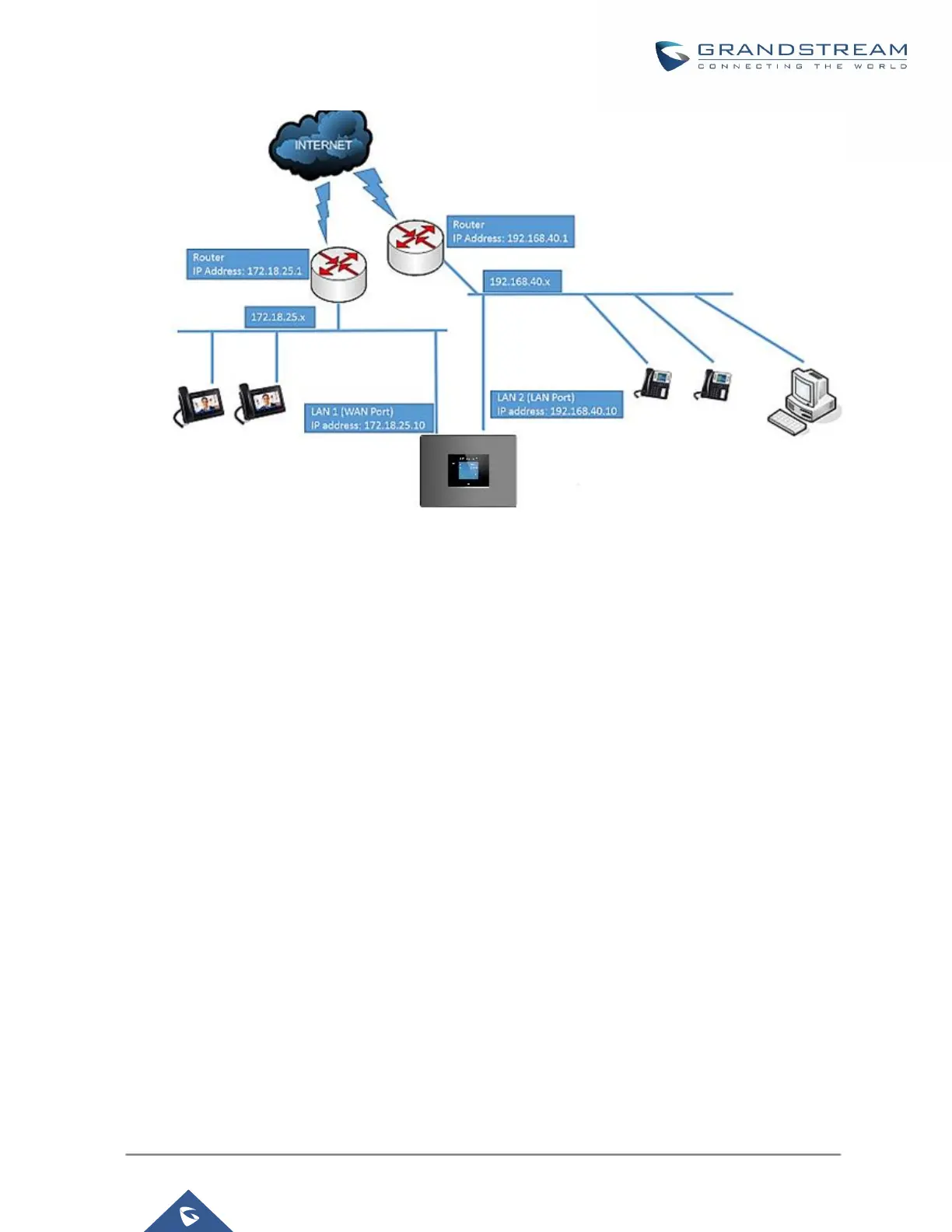

Figure 19: UCM6302A Network Interface Method: Dual
802.1X
IEEE 802.1X is an IEEE standard for port-based network access control. It provides an authentication
mechanism to device before the device can access Internet or other LAN resources. The UCM630xA supports
802.1X as a supplicant/client to be authenticated. The following diagram and figure show UCM630xA use 802.1X
mode “EAP-MD5” on WAN port as client in the network to access Internet.
