GRAPHTEC FC9000-140 - Y Slider Part

FC9000-UM-251-9370 10-8
10 PARTS LIST
10.6 Y Slider Part
No. Part No. Description Q’ty Remarks Rank
1 U792900725 Y Relay Board, PN5122-03 1 A
2 U692180322 Cable, FFC512206B 1 Pinch Roller Sensor Board A
3 U792900730 Pinch Roller Sensor Board, PN5122-04 1 A
4 U621803550 Bracket, Pinch Roller Sensor Board 1 C
5 U621833513 Bracket, Y Slider PCB 1 C
6 Core, GFC-31-12 1 D
7 U621403322 Holder, Core 1 D
8 U621803520 Tension Plate, Y Slider Roller 1 A
9 U621583390 Roller B, R1240KK1MTRP5 8 C
10 U392230020 Spacer, CU-302 2 D
11 U621803530 Shaft Pin, Roller 4 BR-PIN-FC90 C
12 U621803502 Y Slider, Y-SLIDER-FC90 1 Y-SLIDER-FC90 C
13 U621803510 Plate, Y Belt Stopper Plate 2 C
14 U621803540 Shaft Pin, Bottom Roller 2 BR-UNDER-PIN-FC90 C

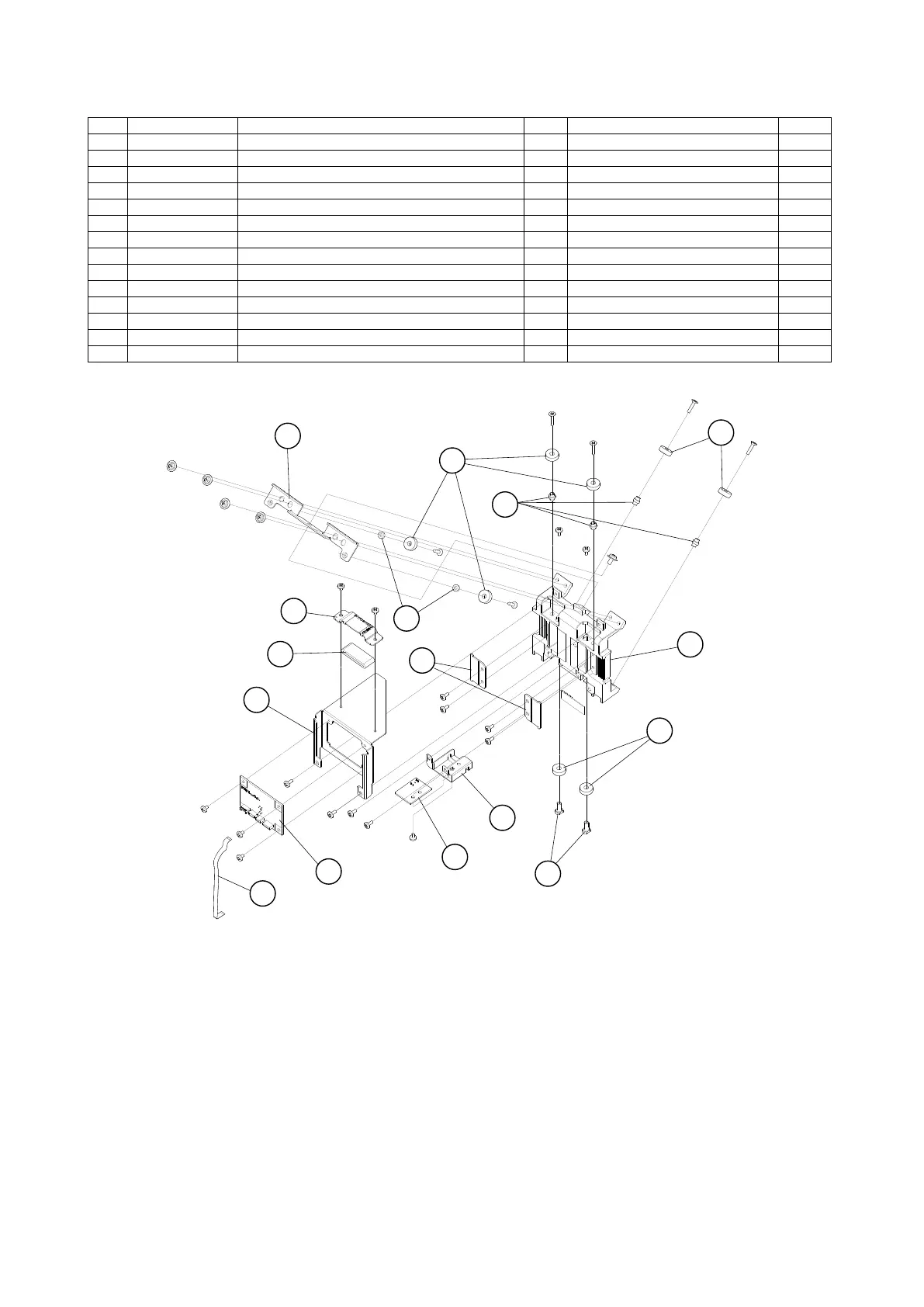

Y Slider Part
1
2
3
13
14
4
5
6
7
11
12
10
9
9
9
8
