GRAPHTEC FC9000-140 - DIP Switch Settings

FC9000-UM-251-9370 8-6
8 Electrical Adjustment
8.3 DIP Switch Settings

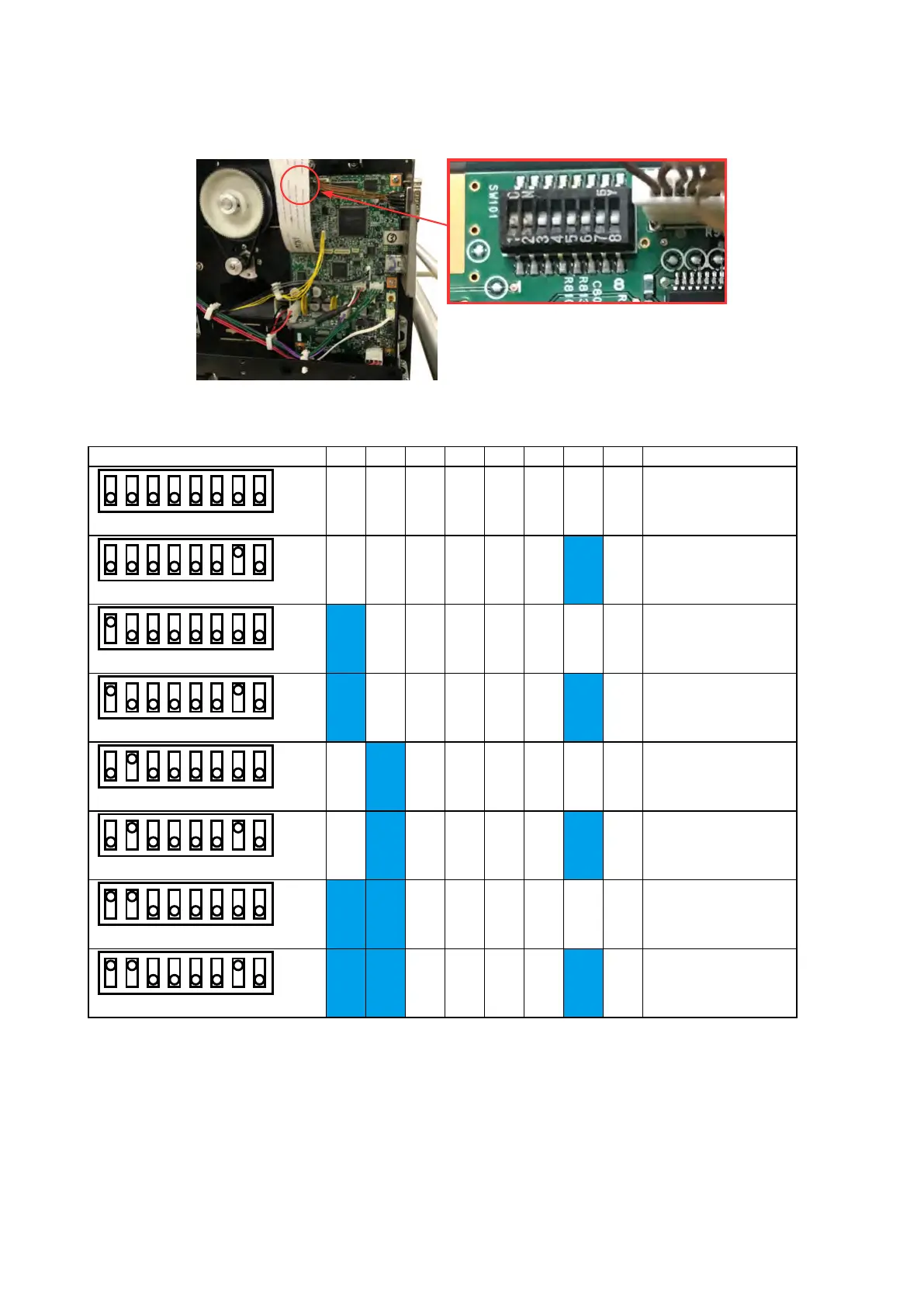

The location of DIP switch on the main board
Factory presets (Normal Mode)
This setting depends on the model.
Dip Switch (SW1) 1 2 3 4 5 6 7 8 Model
12345678
ON
OFF
OFF OFF OFF OFF OFF OFF OFF OFF FC9000-75
12345678
ON
OFF
OFF OFF OFF OFF OFF OFF ON OFF
FC9000-75
2nd pen option model
12345678
ON
OFF
ON OFF OFF OFF OFF OFF OFF OFF FC9000-100
12345678
ON
OFF
ON OFF OFF OFF OFF OFF ON OFF
FC9000-100
2nd pen option model
12345678
ON
OFF
OFF ON OFF OFF OFF OFF OFF OFF FC9000-140
12345678
ON
OFF
OFF ON OFF OFF OFF OFF ON OFF
FC9000-140
2nd pen option model
12345678
ON
OFF
ON ON OFF OFF OFF OFF OFF OFF FC9000-160
12345678
ON
OFF
ON ON OFF OFF OFF OFF ON OFF
FC9000-160
2nd pen option model
Note:
The NOV-RAM CLEAR must perform when the dip switch setting was changed from previous model setting.
