7 DISASSEMBLY AND REASSEMBLY

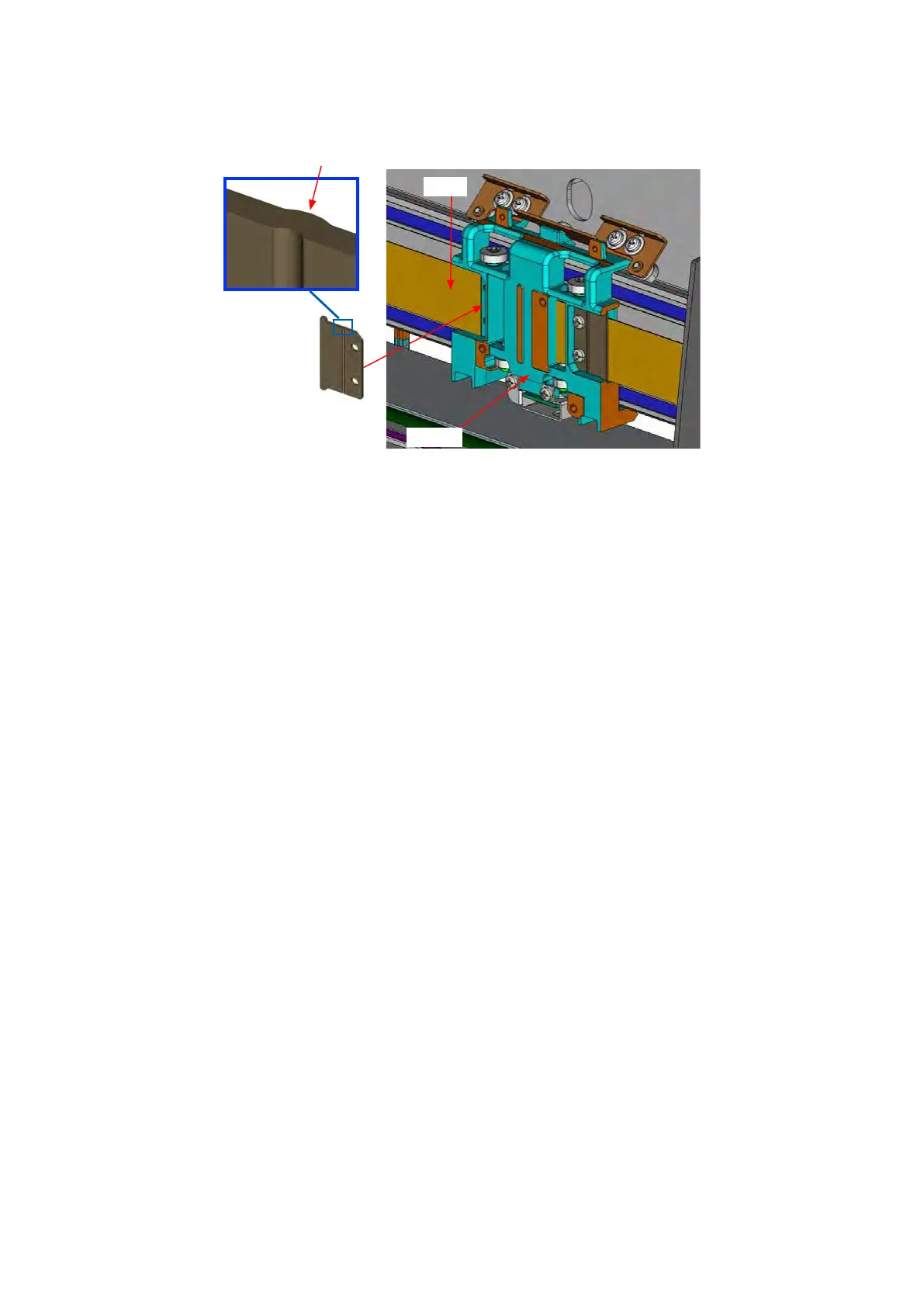

(4) There is direction for the Y-belt stopper plate, conrm it, and then attach the Y belt with the Y-belt
stopper plate to the Y slider.
This bulge must to inside.
Y belt stopper plate
Y belt
Y slider
(5) Attach the pen block (Refer to subsection 7.2.6.).
(6) Reattach the other parts in the reverse order in which they were detached.
(7) Perform the Y-belt tension adjustment (Refer to subsection 7.3.1.).
