EN - 17
SEAT ADJUSTMENT LEVER
Unlocks seat to allow operator to move seat
forward or backward and then lock in desired
position.
SEAT LATCH
Unlocks seat to allow operator to rotate seat
forward for service. See Figure 17.
ROLLOVER PROTECTION
STRUCTURE (ROPS)
Help protect operator that is wearing their
seatbelt in the event of a rollover. DO NOT
wear seatbelt when operating with ROPS in
the lowered position.
SAFETY INTERLOCK SYSTEM
Monitors the interaction of various unit
features for operator safety.
STEERING LEVERS
Control the direction and speed of unit. To
stop unit, return both steering levers to
neutral position.
ANTI-SCALP WHEELS
Help prevent the deck from contacting the
ground and scalping the lawn when passing
over a high spot.

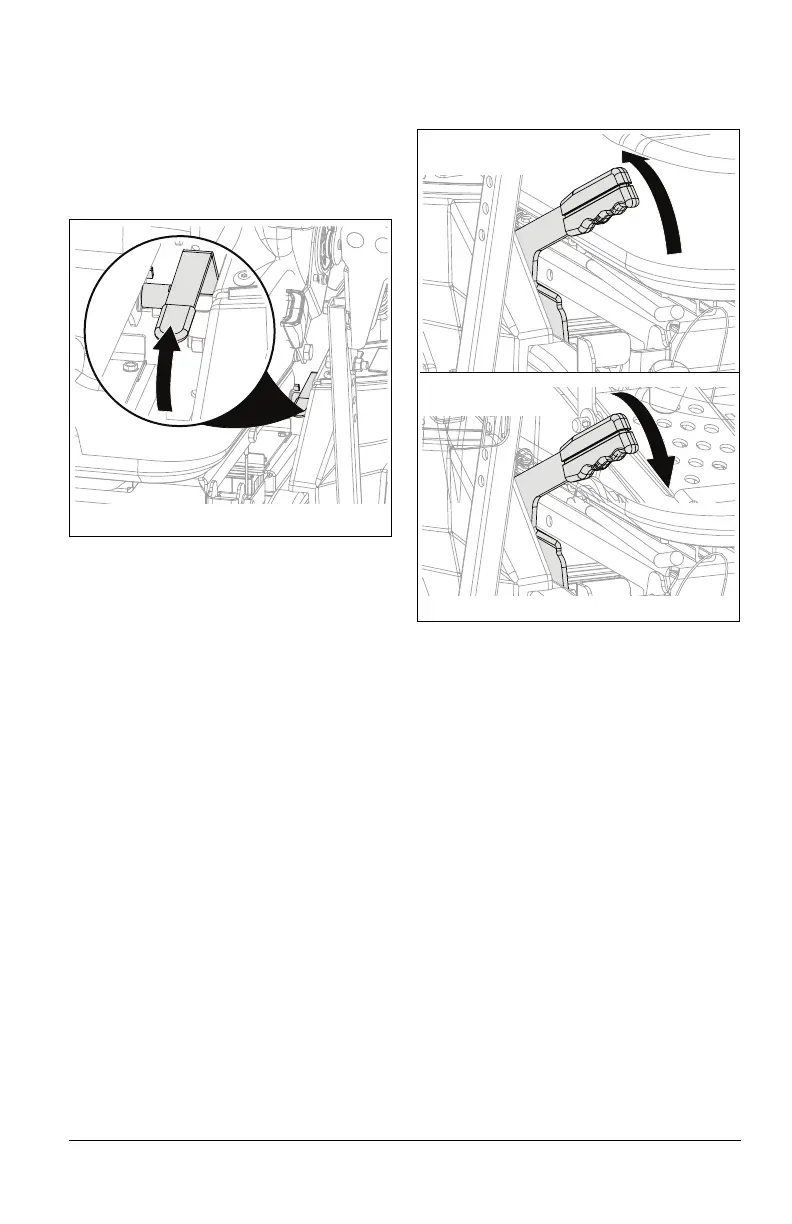

PARKING BRAKE LEVER
See Figure 18.
Controls the parking brake.
BYPASS HANDLE
Releases brake on wheel motors so unit may
be moved with the system off.
RIDE ADJUSTMENT KNOB
Adjusts seat for operator comfort.
BACKREST ADJUSTMENT
LEVER
Controls backrest angle for operator comfort.
ARMREST ANGLE ADJUSTMENT
KNOBS
Set armrest angle for operator comfort.
BUSBAR COVER
Prevents grass, debris and moisture build-up
on busbar terminals. See Figure 19.
NOTICE: AVOID DAMAGE. Always install
busbar cover when two batteries are installed
in the machine.
Parking Brake
Engaged (On)
Figure 18
Brake Released
(Off)
