Gravely Pro-Turn EV 60 - Adjust Seat; Adjust Steering Levers

EN - 35
ADJUST SEAT
See Figure 42.
Ride Adjustment Knob
NOTICE: To avoid damage, DO NOT set ride
adjustment knob outside of the maximum
range.
1. Set ride adjustment knob to the weight of
the operator.
For further adjustment:
• Turn ride adjustment knob clockwise for
a firmer ride.
• Turn ride adjustment knob
counterclockwise for a softer ride.
Set Seat Position
1. While seated, pull seat adjustment lever
inward and slide seat forward or
backward to desired position.
2. Release lever and slide seat slightly
forward or backward to lock position.
See Figure 43.
Set Backrest Angle
Pull lever on left side of seat to adjust
backrest angle.
Set Armrest Angle
Turn height adjustment knob clockwise to
raise the front of armrest or counterclockwise
to lower front of armrest.
ADJUST STEERING LEVERS
Adjust Height
The steering lever height may be adjusted for
operator comfort.
See Figure 44.
1. Remove key and wait for moving parts to
stop and for hot parts to cool.
2. Remove steering lever hardware and
remove steering lever from lower control
arm.
3. Position steering lever at desired height
and align with lower control arm. Secure
with original hardware.
WARNING: AVOID INJURY.
Make all seat adjustments
with the unit stopped, parking
brake engaged and key switch
in the off position.

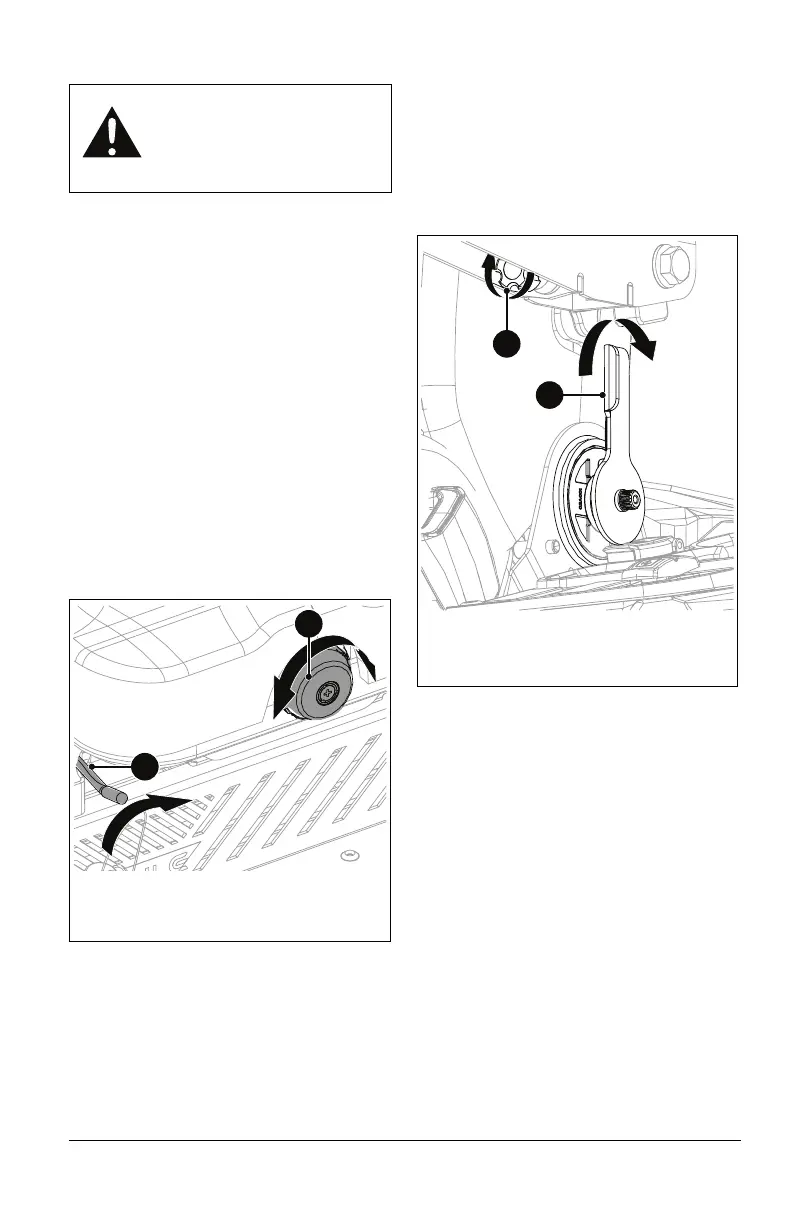

Figure 42
1. Seat Weight Adjustment Knob
2. Seat Adjustment Lever
1
2
1
2
1. Backrest Adjustment Lever
2. Armrest Height Adjustment Knob
Figure 43
