Grizzly G1026 Instruction Manual

G1026 Heavy-Duty Shaper
-9-
Unpacking
The Model G1026 Shaper is shipped from the
manufacturer in a carefully packed carton. If you
discover the machine is damaged after you’ve
signed for delivery, and the truck and driver are
gone, you will need to file a freight claim with
the carrier. Save the containers and all packing
materials for possible inspection by the carrier
or its agent. Without the packing materials, fil
-
ing a freight claim can be difficult. If you need
assistance determining whether you need to file
a freight claim, or with the procedure to file one,
please contact our Customer Service.
Piece Inventory
Qty
Box 1:
• Magnetic Switch .........................................
1
• FWD/REV Switch ....................................... 1
Box 2:
• Fence Assembly ......................................... 1
• Fence Facing .............................................. 1
Box 3:
• Handwheel ................................................. 1
• Miter Gauge .............................................. 1
• Handle for Handwheel ............................... 1
• Spindle
1
⁄2" .................................................. 1
• Spindle
3
⁄4" .................................................. 1
• Spindle 1" ...................................................
1
• Spindle Nut
1
⁄2" ........................................... 2
• Spindle Nut
3
⁄4" ........................................... 2
• Spindle Nut 1" ............................................
2
• Spacers* ................................................... 18
• Draw Bar & Nut .......................................... 1
• Spindle Wrench Set ................................... 3
• Safety Guard .............................................. 1
• Safety Guard Shaft .................................... 1
• Starting Pin ................................................ 3
• Hold Downs ................................................ 4
• Hold Down Bars ........................................ 2
• Hold Down Brackets .................................. 4
• Hex Wrench 5mm ...................................... 1
• Spindle Washer
1
⁄2" ..................................... 2
• Spindle Washer
3
⁄4" ..................................... 2
• Spindle Washer 1" ......................................
2
• Hardware .................................................... 1
—Set Screw
5
⁄16"-18 x
3
⁄8" ........................... 4
—Hex Nut
5
⁄16"-18 ....................................... 6
—Flat Hd Screw
5
⁄16"-18 x
3
⁄4" ..................... 2
—Flat Washer
5
⁄16" ...................................... 4
—Flat Hd Screw
5
⁄16"-18 x 1
1
⁄2" ................... 4
• Extension Bracket w/Lock knob ................. 1
• Lock Handle ............................................... 1
• Guard Extension Bar .................................. 1
• Shaft Mount Bracket w/Set Screw ............. 1
Refer to Page 46 for a detailed listing of spacers supplied.
In the event that any nonproprietary parts are
missing (e.g. a nut or a washer), we would be
glad to replace them, or replacements can be
obtained at your local hardware store.

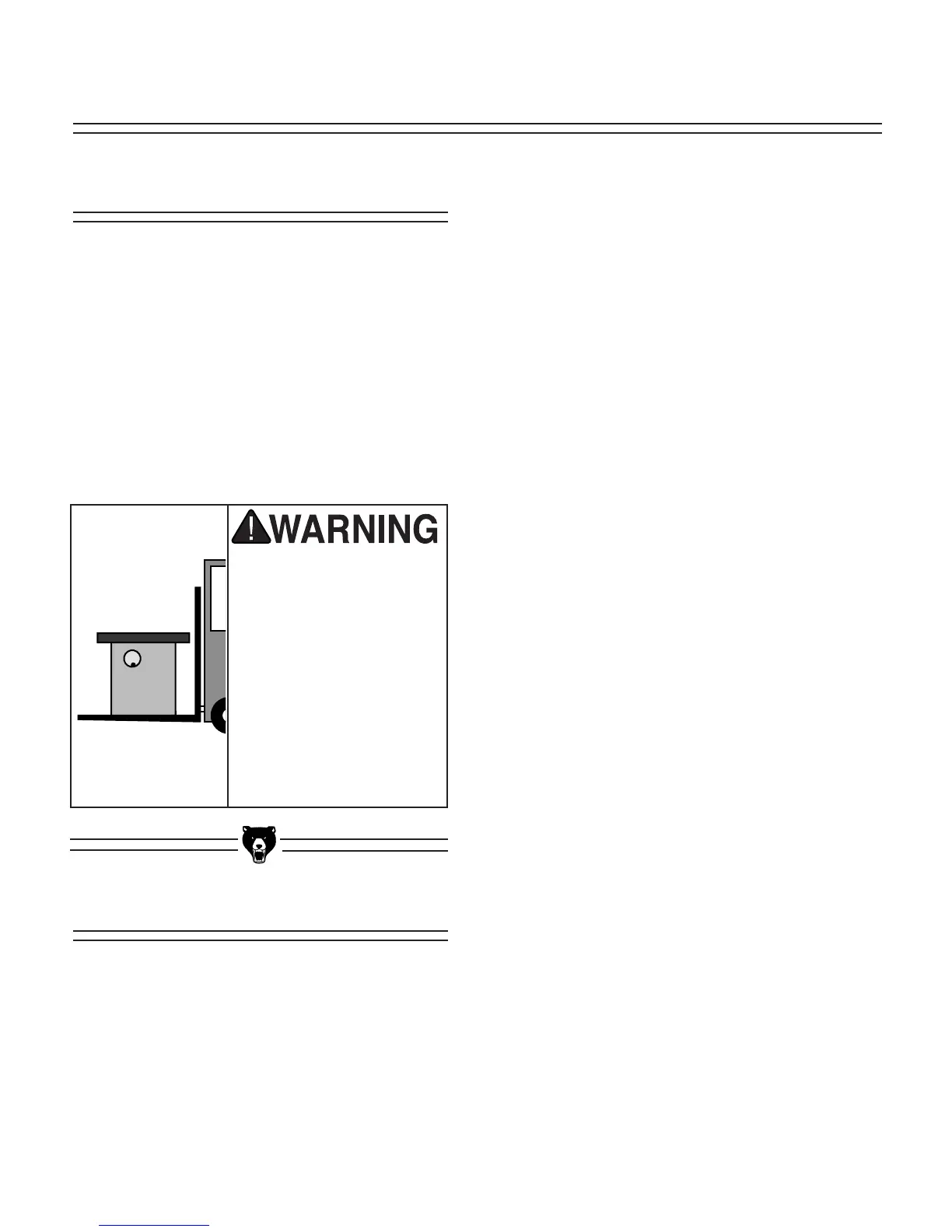

The G1026 is a heavy
machine, 353 lbs. ship
-
ping weight. DO NOT
over-exert yourself
while unpacking or
moving your machine
– consider using power
equipment to move the
machine. Serious per
-
sonal injury may occur
if safe moving methods
are not followed.
SECTION 5: SET UP
NOTICE
A full parts list and breakdown can be found
toward the end of this manual. For easier assem
-
bly, or to identify missing parts, please refer to the
detailed illustrations at the end of the manual.
After all the parts have been removed from the
carton, you should have:
