Grizzly G1026 Instruction Manual

-42-
G1026 Heavy-Duty Shaper

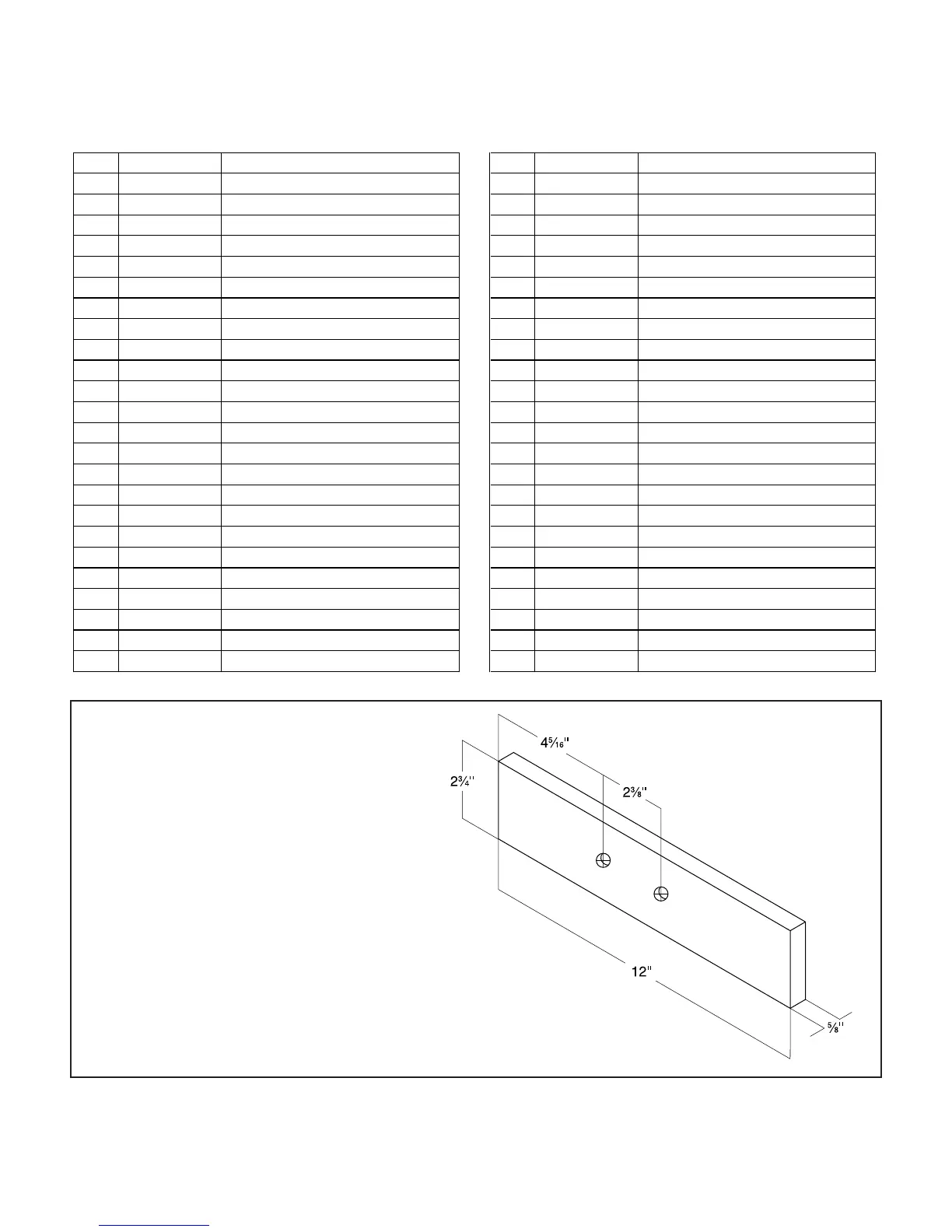

We regret to inform you that the wood
facing for the G1026 Shaper fences are
no longer available as a replacement
part. For your convenience we have
included a measured drawing so you may
construct you own. We apologize for any
inconvenience this may cause you.
Stand Assembly Parts List
REF PART # DESCRIPTION REF PART # DESCRIPTION
1 P1026001 STAND BODY 29
P1026029 MAIN FENCE HOUSING
2 P1026002 EXTENSION WING 30 PSB14 CAP SCREW 3/8-16 X 1
3 PB18 HEX BOLT 3/8-16 X 1-1/4 31A P1026031A FENCE MOUNT LEFT
4 PLW04 LOCK WASHER 3/8 32 P1026032 SWITCH MOUNT BRACKET
5 PS07 PHLP HD SCR 1/4-20 X 3/8 33 PSW01 3 H.P. MAGNETIC SWITCH
6 P1026006 COVER 35 PSW03 FWD/REV SWITCH
7 PB21 HEX BOLT 3/8-16 X 3/4 36 P1035034 BRACKET
8 PW02 FLAT WASHER 3/8 37 P1035031 SWITCH BOX
9 P1026009 TABLE INSERT 38 P1071075 STRAIN RELIEF
10 P1026010 TABLE INSERT 39 P1035033 SWITCH BOX COVER
11 P1026011 TABLE INSERT 40 PHTEK1 SELF-TAPPING SCREW
12 P1026012 STARTING PIN 41 P1026041 SCALE
13 PFH21 FLAT HD SCREW 10-24 X 3/4 42 P1026042 GROMMET
14 1035010 BARREL SCREW 43 P1026043 MOTOR CORD
15 P1026015 TABLE 44 P1026044 POWER CORD (LONG)
16 PFH07 FLAT HD SCREW 5/16-18 X 1-1/2 44A P1026044A POWER CORD (SHORT)
18A P1026018A FENCE MOUNT RIGHT 45 PSW01-1 REPLACEMENT SCREW
21 PW07 FLAT WASHER 5/16 46 P1026046 LOCK HANDLE
22 PN02 HEX NUT 5/16-18 47 G8588 GRIZZLY NAMEPLATE
23 PSS03 SET SCREW 1/4-20 X 3/8 48 P1026048 ID/WARNING LABEL
24 PSB16 CAP SCREW 3/8-16 X 3/4 50 P1026050 ELECTRICITY LABEL
25 P1026025 HAND KNOB 3/8 51 P1026051 SAFETY GLASSES LABEL
26 PSS17 SET SCREW 5/16-18 X 5/16 52 P1026052 READ MANUAL LABEL
27A P1026027A FENCE ADJ SCREW 53 P1026053 HAND/CUTTER LABEL
28 P1026028 ADJ SCREW BRACKET 54 P1026054 UNPLUG MACHINE LABEL
