G1026 Heavy-Duty Shaper
4. Replace and tighten the Phillips head screws
and inspect with a straightedge.

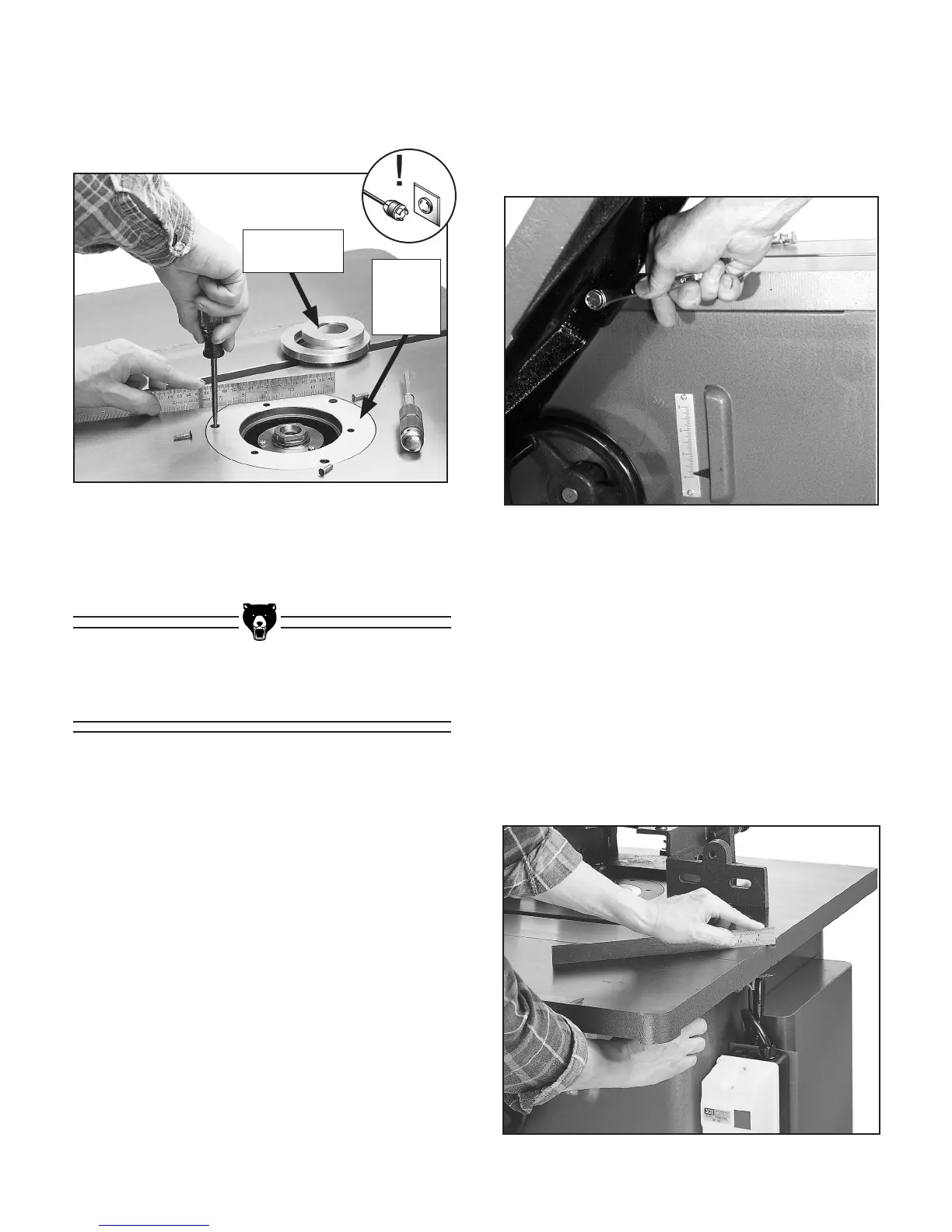

Figure 13. Leveling table insert.
3. Using a straightedge and a flathead screw-
driver, turn the barrel screws clockwise or
counterclockwise to level the cast iron insert
with the table as shown in
Figure 13.
Aluminum
Inserts
Figure 15. Adjusting to ensure flatness.
7. Adjust the wing up or down at the last bolt
(Figure 15). If necessary, use a clamp and
some wood blocks to make the two surfaces
flush. Tighten the final bolt when the two sur
-
faces are flush
.
Extension Wing
The cast iron wing extends your work surface
area to provide support for larger workpieces.
To install the extension wing:
1. Make sure the contact surfaces are free of
dirt or grit.
2. Remove the three
3
⁄8-16 x 1
1
⁄4" hex bolts and
lock washers already mounted to the table.
3. Insert the hex bolts with lock washers through
the wing and thread them into the holes at
the front of the shaper. Leave the bolts loose,
for now.
4. Raise the wing on one side and make sure it
is flush with the table edge, then tighten the
first bolt. See Figure
14.
Figure 14. Installing extension wing.
6. Make sure the wing edge is flush at the first
two bolts and that the bolts are tight.
Note: The end of the wing at the last bolt
may not be flush with the surface of the table.
Don’t be alarmed.
Note: By raising or lowering the far end of the
wing, you can locate the center of the wing
flush with the shaper table.
5. Secure the center bolt.
Cast
Iron
Insert
