G1026 Heavy-Duty Shaper
-13-

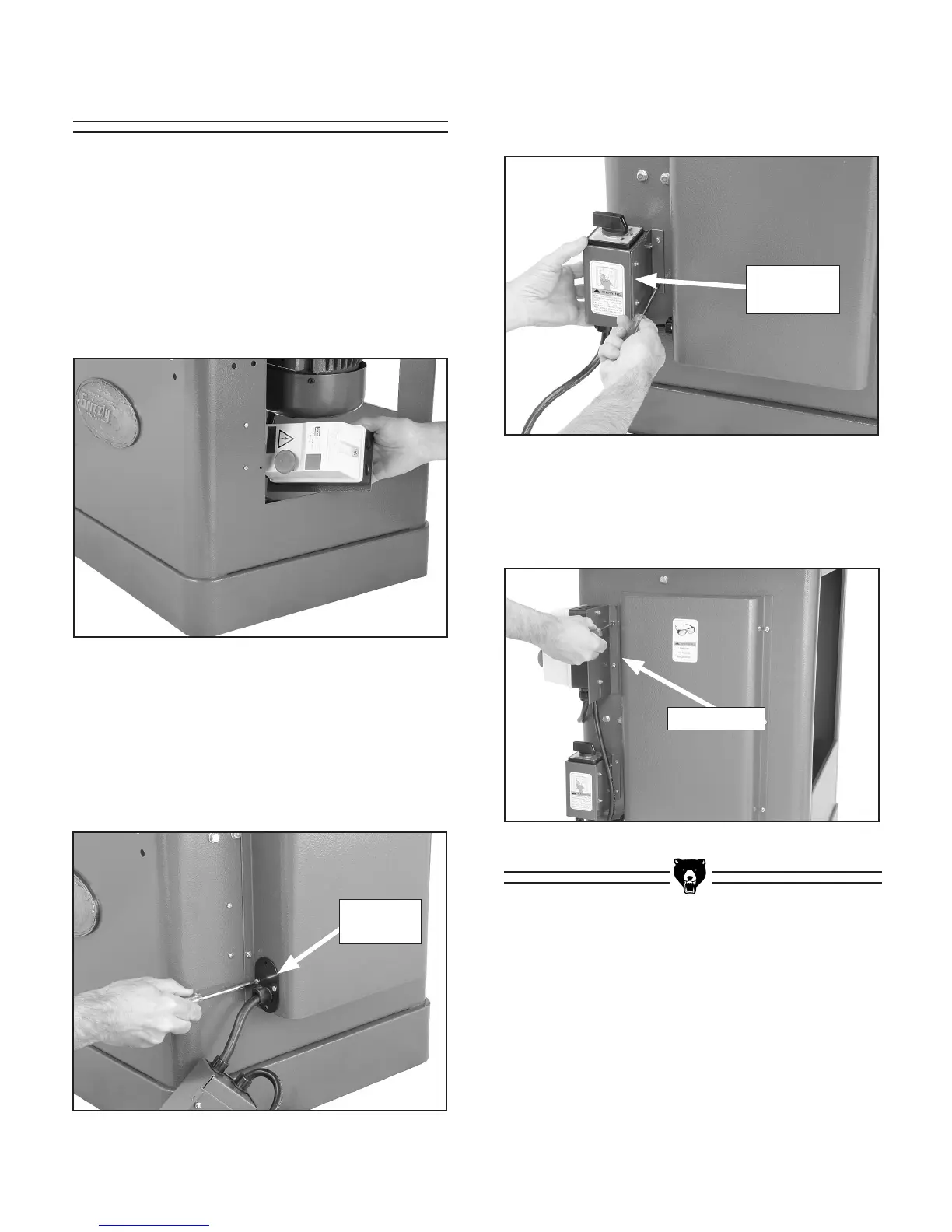

Figure 5. Securing grommet to motor cover.
Switch
To install the switch:
1. KEEP SHAPER DISCONNECTED FROM
POWER!
2. Slide the grommet plate, FWD/REV switch,
and magnetic switch between the motor and
the cabinet (
Figure 4) and remove the grom-
met plate and switches from the cabinet.
3. Reinstall the motor cover.
4. Install the grommet plate, as shown in Figure
5, using the screws and nuts already mount-
ed in the motor cover.
Figure 4. Removing magnetic switch from
cabinet.
Grommet
Plate
Figure 6. Securing FWD/REV switch to cabinet.
5. Mount the FWD/REV switch to the cabinet, as
shown in
Figure 6, using the screws already
mounted in the cabinet at that location.
FWD/REV
Switch
6. Mount the magnetic switch to the cabinet, as
shown in
Figure 7, using the screws already
mounted in the cabinet at that location.
Figure 7. Securing mag switch to cabinet.
Mag Switch
To Next Page
