4. Attach the second hanger bracket assembly (86) to the backshield (84) using two 7/16" x 1-1/4"
HHCS bolts (14) and 7/16" flange nuts (37).
5. Slide the connecting shaft (87) into the hanger bracket assembly (86).
6. Attach one end of second flight section (85) to the connecting shaft (87) in the first hanger bracket
assembly (86) and the other to the connecting shaft (87) in the second hanger bracket assembly
(86) using two 5/8" x 4" HHCS bolts (15) and 5/8" stover nuts (49) per end connection.
7. Repeat the above steps to continue installing the remaining flight sections and the short flight
section (89) to the backshield.

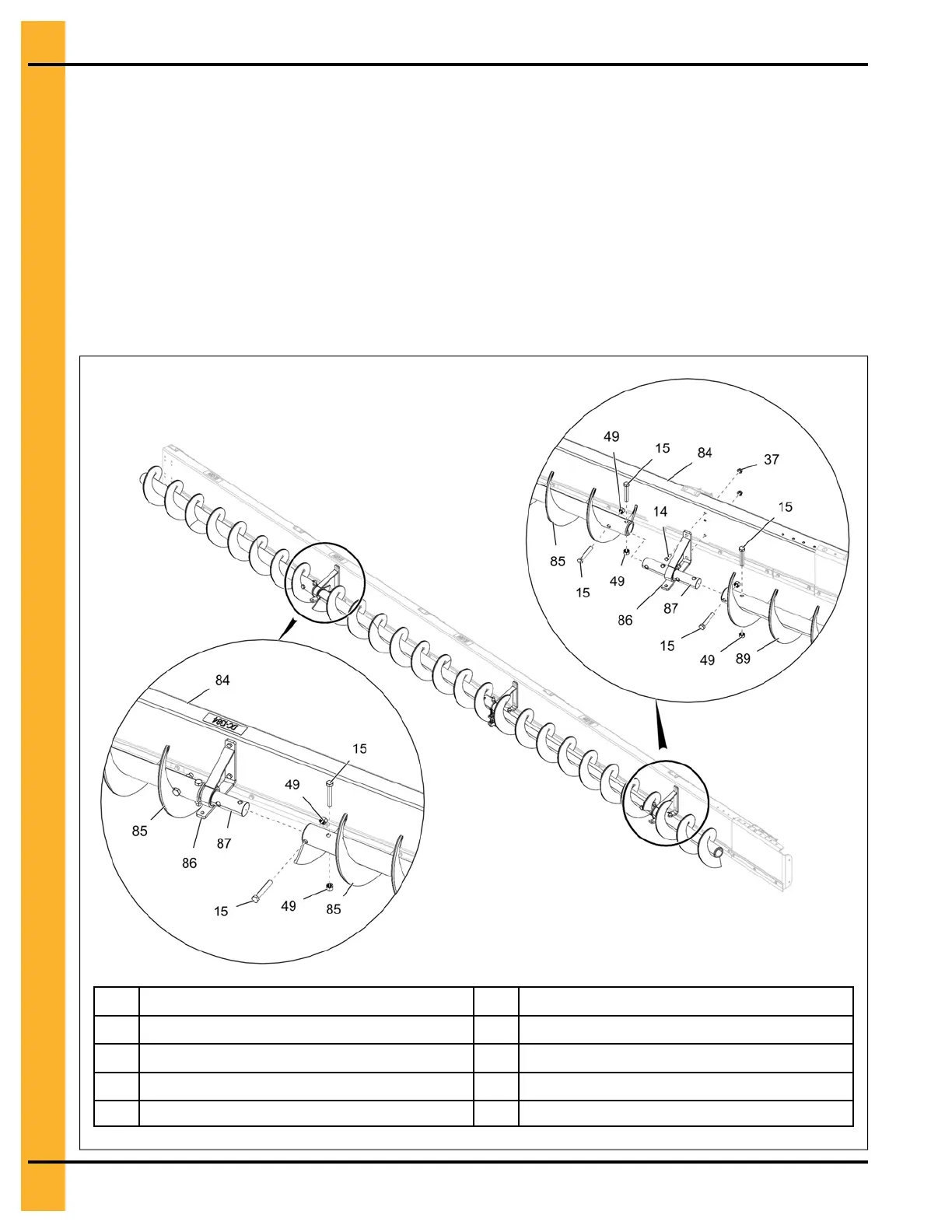

Figure 3-21 Attaching the second flight section with hanger bracket to the backshield
14 7/16" x 1-1/4" HHCS bolt 85 Flight section
15 5/8" x 4" HHCS bolt 86 Hanger bracket assembly
37 7/16" flange nut 87 Connecting shaft
49 5/8" stover nut 89 Short flight section
84 Backshield
