Chapter 3: Installation
13.Assemble the belt guard (133) to the belt guard brackets (132) using 3/8" x 1" flange bolts (10) and
3/8" threaded insert (135).

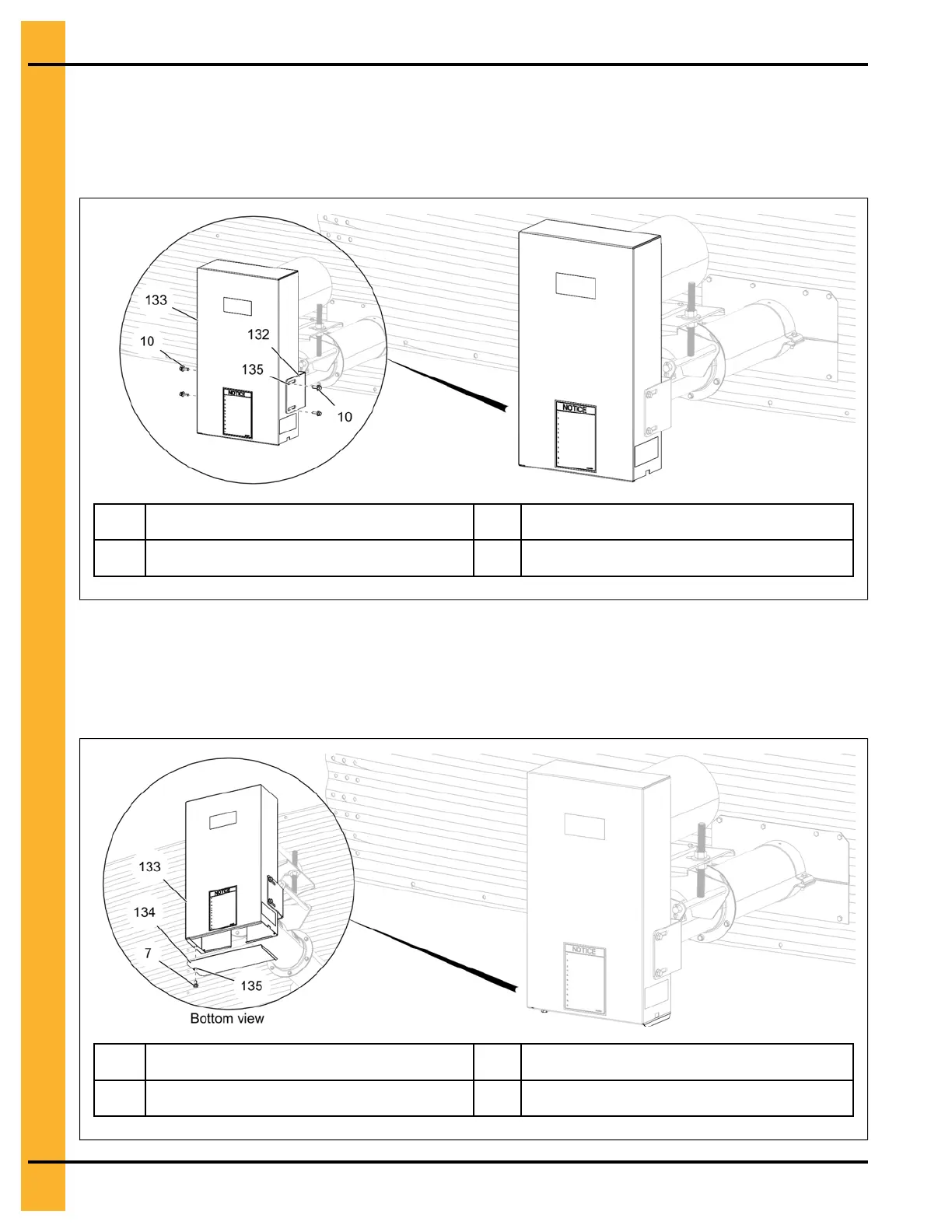

Figure 3-55 Installing the belt guard
10
3/8" x 1" flange bolt
133
Belt guard
132
Belt guard brackets
135 3/8" threaded insert
14.Slide the belt guard bottom cover (134) into the belt guard (133) and install using 3/8" x 3/4" flange
bolt (7) and 3/8" threaded insert (135).
Figure 3-56 Installing the belt guard bottom cover
7
3/8" x 3/4" flange bolt
134
Belt guard bottom cover
133
Belt guard
135 3/8" threaded insert
54
PNEG-2308 Chain Loop Power Sweep
