Chapter 3: Installation
11.Untie and align the belts (131) to the sheaves (123 and 129) and tighten them by adjusting the nuts
(44) of the weld rod (128) on the motor mount plate (125).

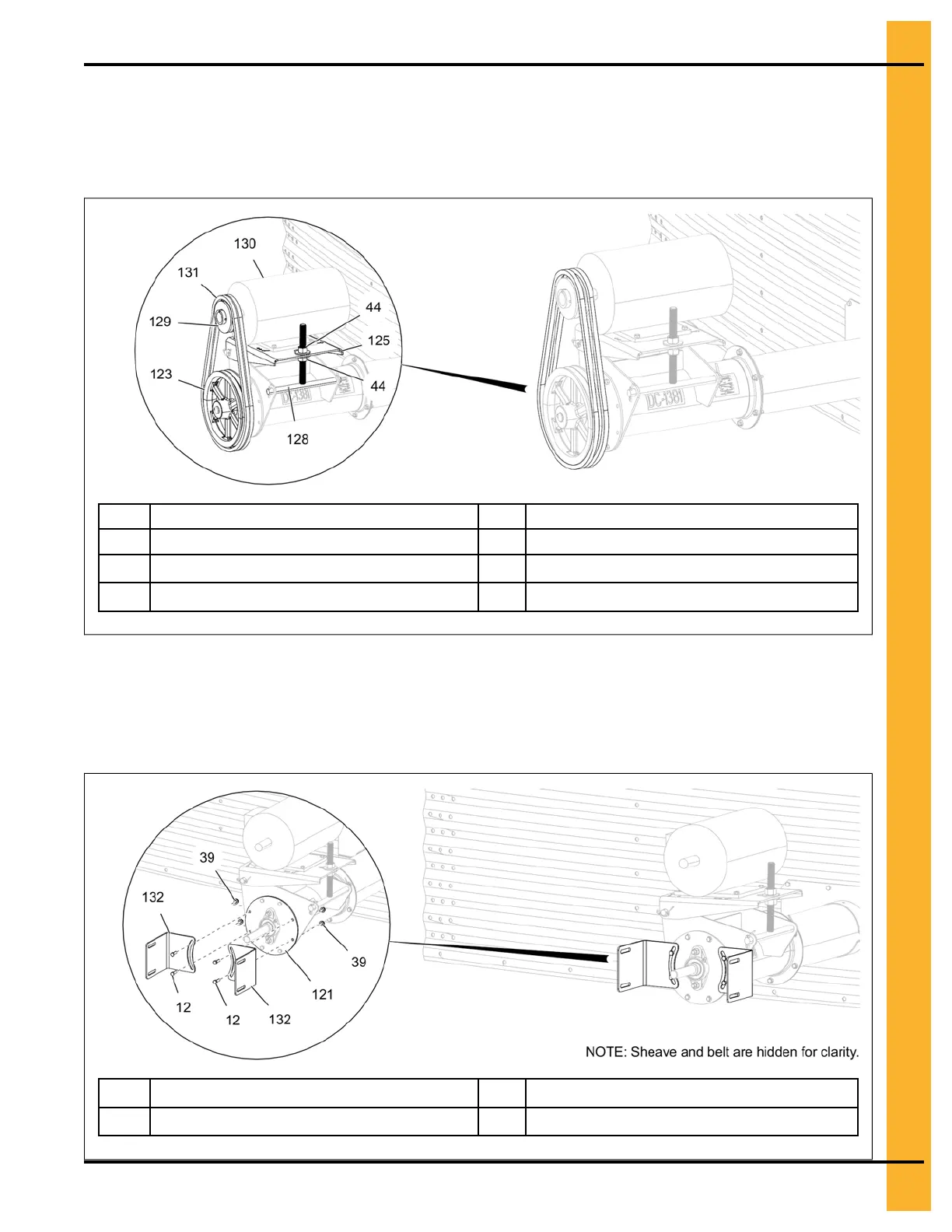

Figure 3-53 Installing the belt
44 3/4" hex nut 129 Motor sheave
123 Sheave 130 Motor
125
Motor mount plate
131 Belt
128
Adjustment weld rod
12.Install the belt guard brackets (132) to the bearing plate assembly (121) using 5/16" x 1" HHCS bolt
(12) and 5/16" flange nuts (39).
Figure 3-54 Installing the belt guard brackets
12 5/16" x 1" HHCS bolt 121
Bearing plate
39
5/16" flange nut
132
Belt guard brackets
