Chapter 3: Installation
9. Install the motor sheave (129) to the motor (130) shaft using key (124).
10.Install the motor (130) along with sheave (129) to the motor mount plate (125) using 5/16" x 3/4"
flange bolts (4) and 5/16" flange nuts (39).

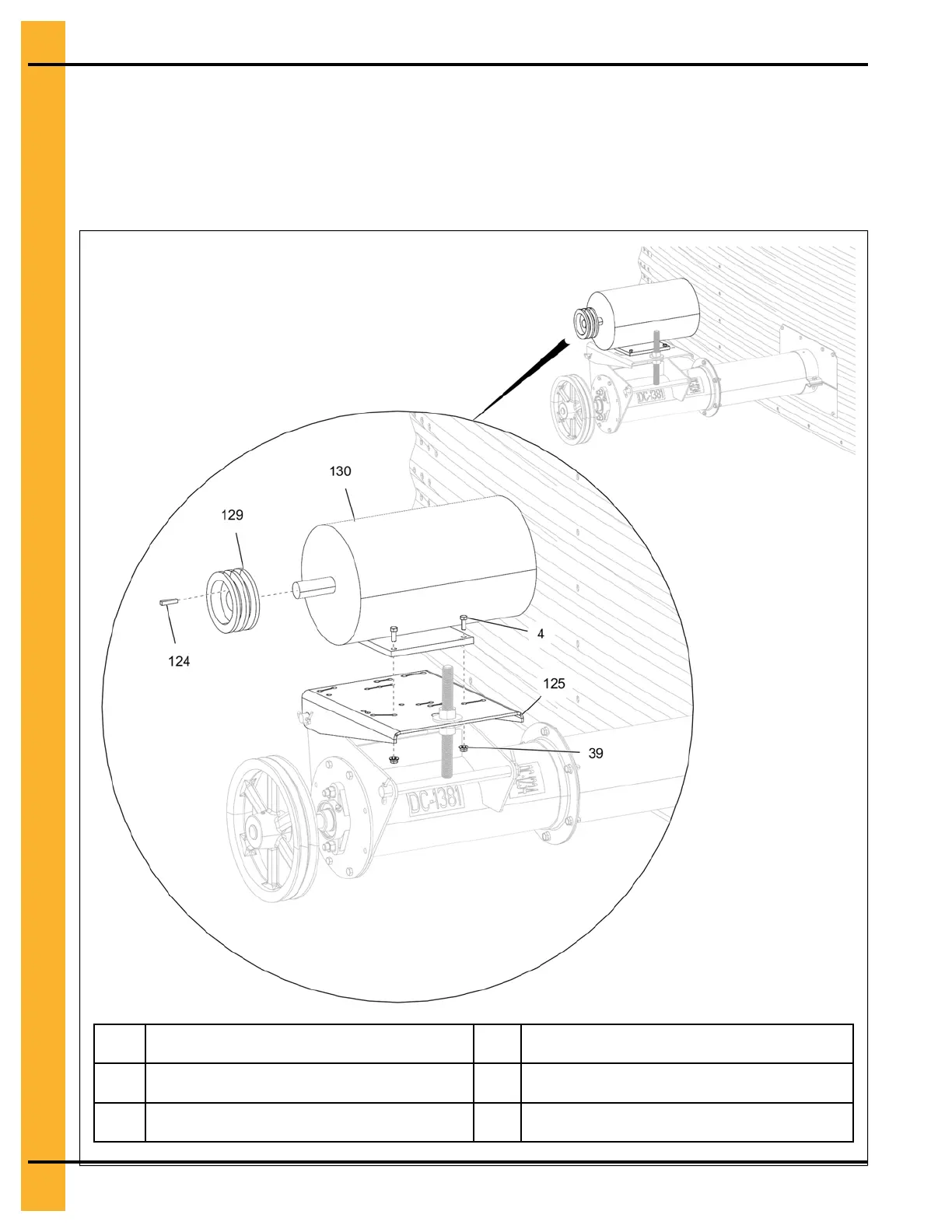

Figure 3-52 Installing the motor
4
5/16" x 3/4" flange bolt
125
Motor mount plate
39
5/16" flange nut
129 Motor sheave
124
Key
130 Motor
