GW Instek GPT-12004 - Page 113

OPERATION
113

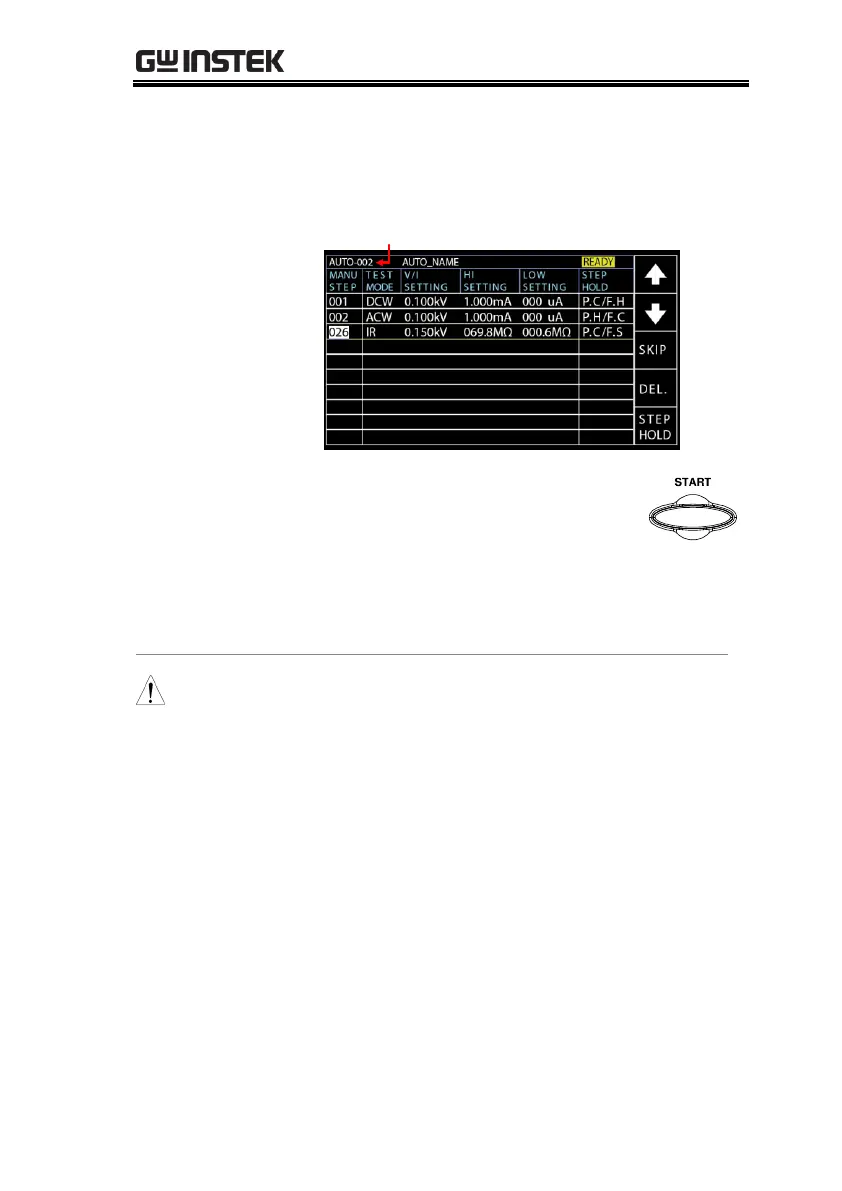

3. Repeat the step 1 to form another group of
AUTO-002 test as the following display
shown.
AUTO-002 comprising 3 MANU steps
4. After the previous steps, return to
the AUTO-001 test page followed
by pressing START button for
automatic test. The AUTO-002 test
will ensue from the end of AUTO-
001 test. The continuous AUTO
tests are thus established perfectly.
Note
 Up to 5 groups of AUTO tests can be
interconnected. The former 4 groups of
AUTO tests, due to CON occupation, owns
up to 9 MANU steps, respectively, whereas
the last group can own up to 10 MANU
steps. Thus, it is 46 MANU steps at the
maximum for a continuously interconnected
AUTO test.
 The interconnected groups of AUTO test are
limited in serial numbers. That is to say,
when initializing from AUTO-005, for
example, the next group will be definitely
AUTO-006 followed by AUTO-007, if
available, and so forth up to 5 groups.
