GW Instek GPT-12004 - LAN Remote Interface

REMOTE CONTROL
189
Stop bit
1
Flow control
None

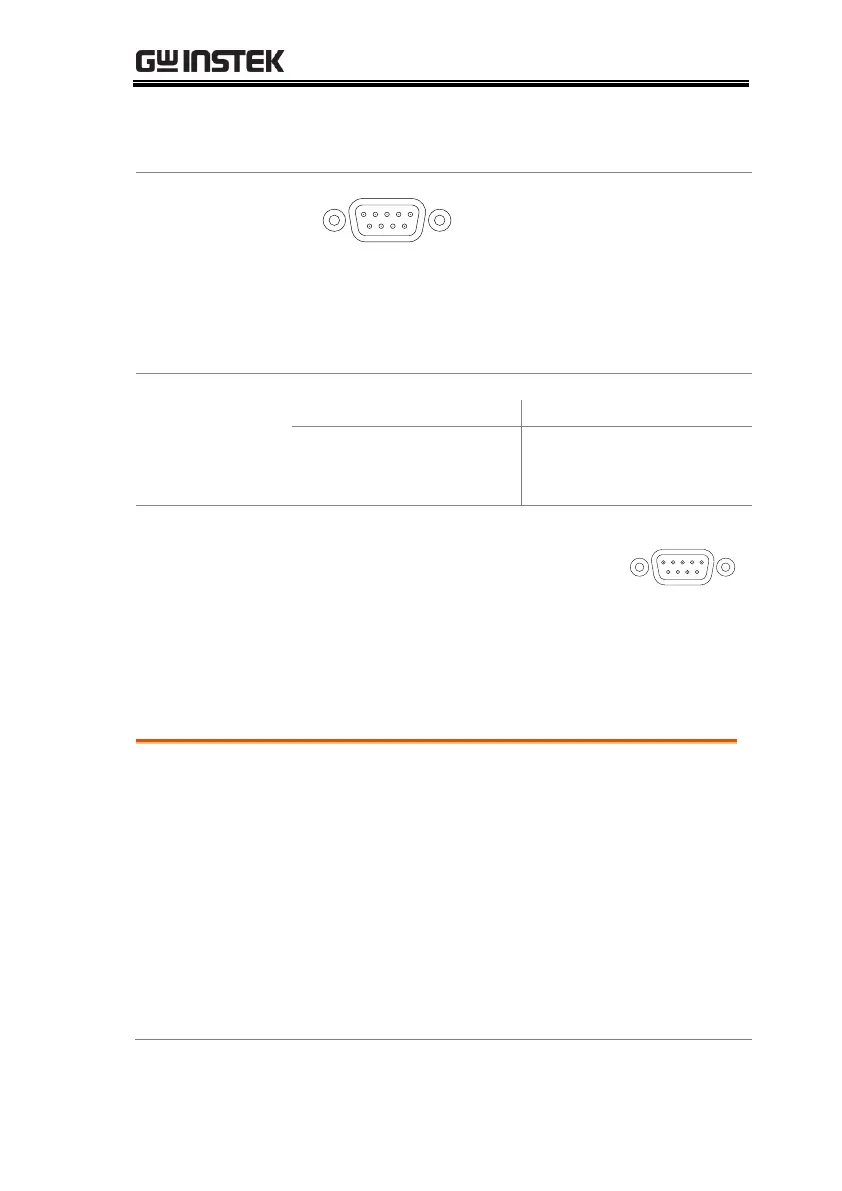

Pin Assignment
1 2 3 4 5
6 7 8 9
1: No connection
2: RxD (Receive Data)
3: TxD (Transmit Data)
4: No connection
5: GND
6-9: No connection
Connection
PC
Tester
DB9 Pin
Signal
Signal
DB9Pin
2
RxD
TxD
3
3
TxD
RxD
2
5
GND
GND
5
Panel operation
1. Connect the Null modem cable to
the rear panel RS232 port.
RS232
2. Set the Interface to RS-232 from the
SYSTEM mode.
Page 137
LAN Remote Interface
LAN
Configuration
Connection
RJ-45 cable
DHCP
ON, OFF
Socket Port
00000 – 65000
IP Address
0-255, 0-255, 0-255, 0-255
Subnet Mask
0-255, 0-255, 0-255, 0-255
Gateway
0-255, 0-255, 0-255, 0-255
MAC
XX:XX:XX:XX:XX:XX:
(it varies by LAN card)
