EXTERNAL CONTROL
181
External Control Overview
The External Control section describes the front panel REMOTE
terminal connection and the rear panel SIGNAL I/O port.
Remote Terminal Overview
Overview
The REMOTE terminal connector is a standard
5-pin DIN terminal suitable for a remote
controller.
WARNING
Keep any cables that are connected to the
REMOTE terminal away from the HIGH VOLTAGE
and RETURN terminals.

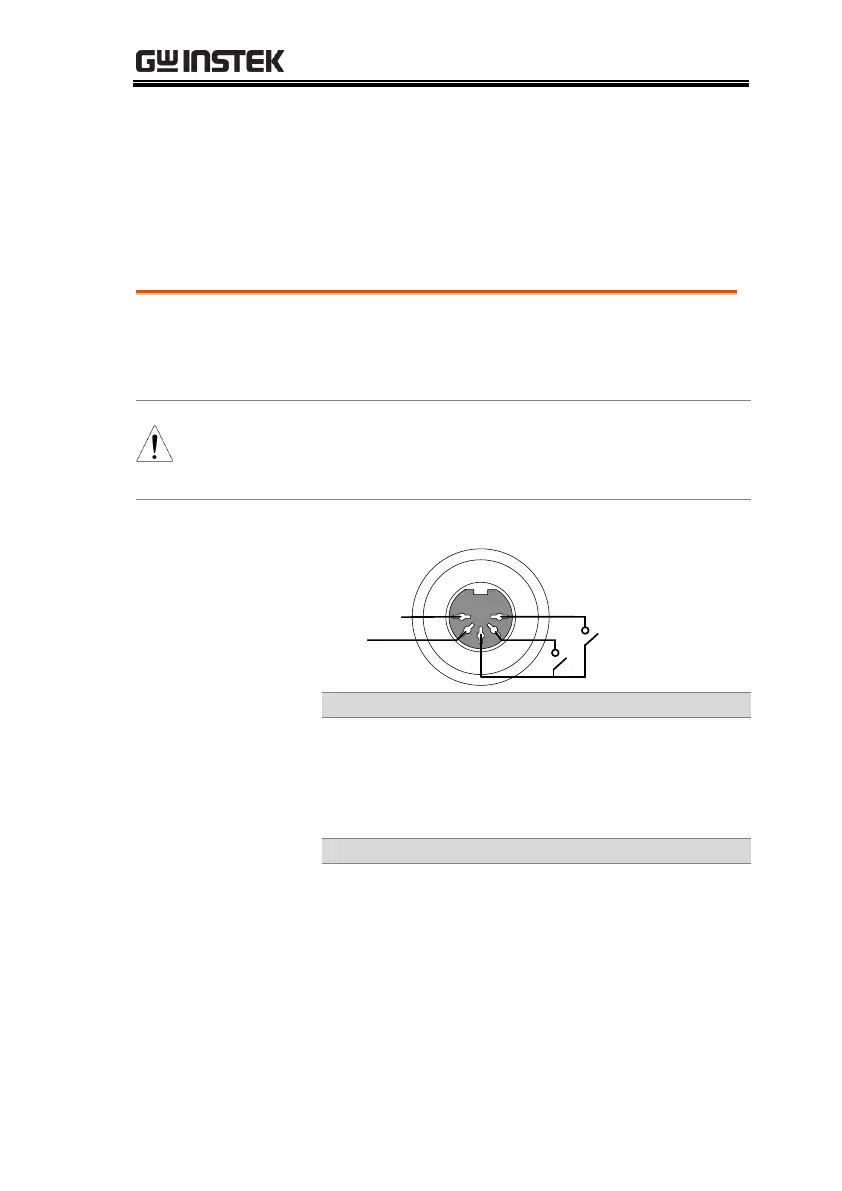

Pin Assignment
and Connection
REMOTE
3
5
2
4
1
+5V
COM
RMT_START
RMT_STOP
Pin
Pin name
Description
1
RMT_STOP
Remote Stop signal
2
COM
Common line
3
COM
Common line
4
RMT_START
Remote Start signal
5
+5V
+5V Output
Signal Properties
High level input voltage
3.3V~5.0V
Low level input voltage
0~0.8V
Input period
minimum of 1ms
