GPT-10000 Series User Manual
16

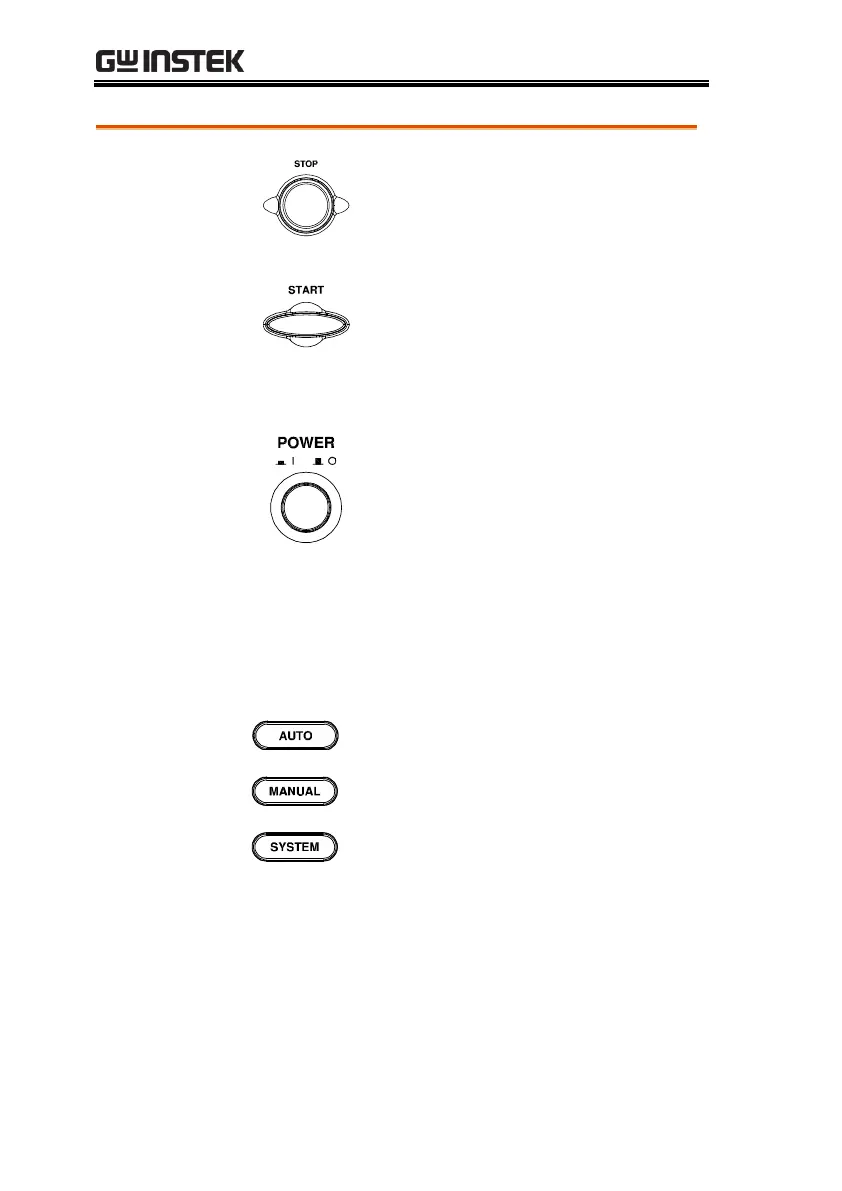

STOP button
The STOP button is used to
stop/cancel tests. The STOP button
will also put the safety analyzer in the
READY status to begin testing.
START button
The START button is used to start tests.
The START button can be used to start
tests when the tester is in the READY
status. Pressing the START button will
put the tester in the TEST status.
POWER switch
Turns the power on. The safety tester
will always start up with the setting
which was performed and executed
from the last test.
Test Function
Keys
The keys indicate the 5 testing functions including
ACW, DCW, IR, GB and CONT. Pressing one of
the keys enters the function settings.
Display
7” Color TFT LCD display in 800 X 480 resolution
AUTO button
Press to enter the AUTO test mode.
MANUAL button
Press to enter the MANUAL test mode.
SYSTEM button
Press to enter the SYSTEM mode.
Soft Keys
The Soft keys correspond to the menu keys directly
above on the main display.
