GW Instek GPT-12004 User Manual

GPT-10000 Series User Manual
184

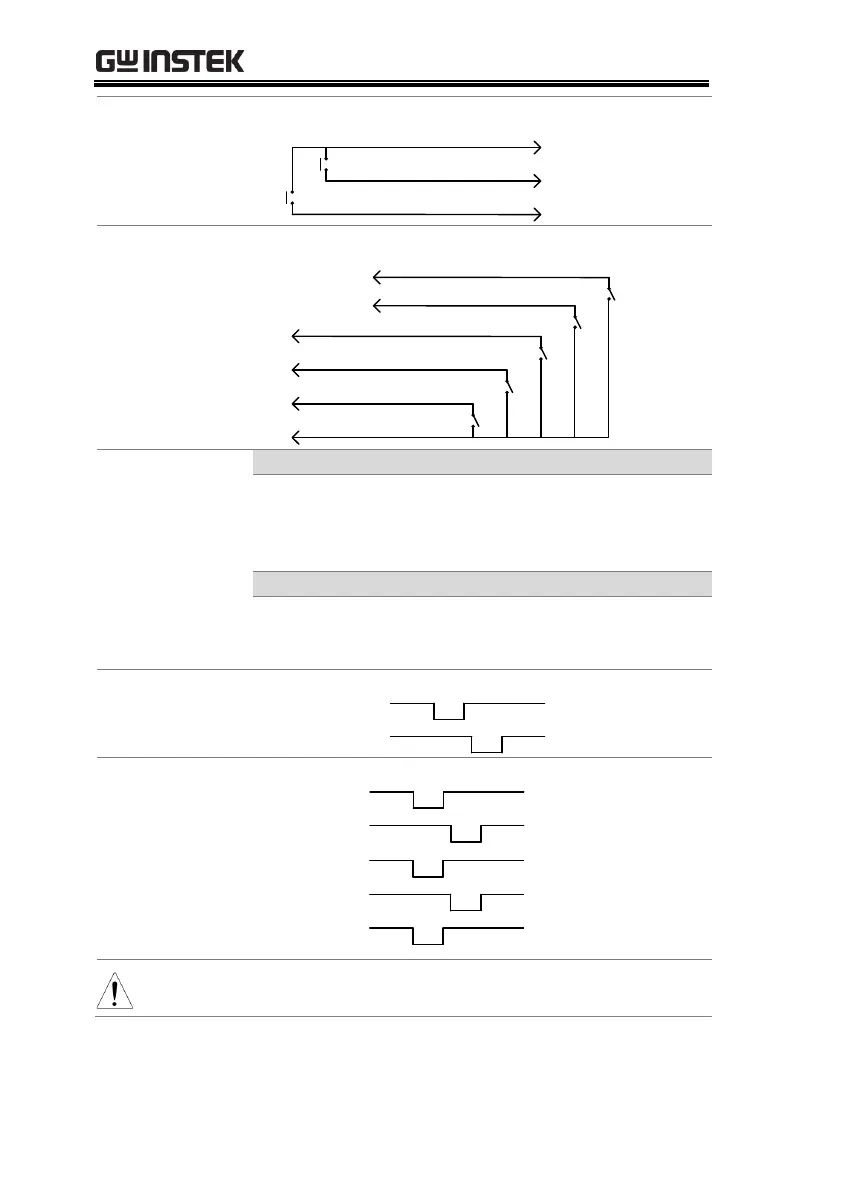

Input Connection
PIN 4 INPUT_STOP
PIN 5 INPUT_COM
PIN 3 INPUT_START
Output
Connection
PIN 9 OUTPUT 3
PIN 15 OUTPUT COM
PIN 11 OUTPUT 5
PIN 10 OUTPUT 4
PIN 7 OUTPUT 1
PIN 8 OUTPUT 2
Signal Properties
Input Signals
High level input voltage
5V ~ 32V
Low level input voltage
0V ~ 1V
Low level input current
Maximum of -5mA
Input period
Minimum of 1ms
Output Signals
Output Type
Relay form A
Output Rated Voltage
30VDC
Maximum output current
0.5A
Input Stop and
Input Start
Timing
INPUT_STOP
INPUT_START
Output Timing
OUTPUT 1
OUTPUT 2
OUTPUT 3
OUTPUT 4
OUTPUT 5
Note
Output is able to be deployed by programming.
