GW Instek GPT-12004 User Manual

GPT-10000 Series User Manual
278
WAIT TIME
0.0~999.9s
TIMER (Test Time)
0.3s~999.9s
2
TIMER Accuracy
+/-(100ppm+20ms)
GND
ON/OFF
NOTE: It is required to implement GND OFFSET action when IR Ground Mode is On.
1
When IR Ground Mode is On, 50V~1200V the maximum 30Gohm,1250V~5000V the
maximum 10Gohm measurement range is guaranteed.
2
When IR Ground Mode is On, test time starts from 0.5 second.

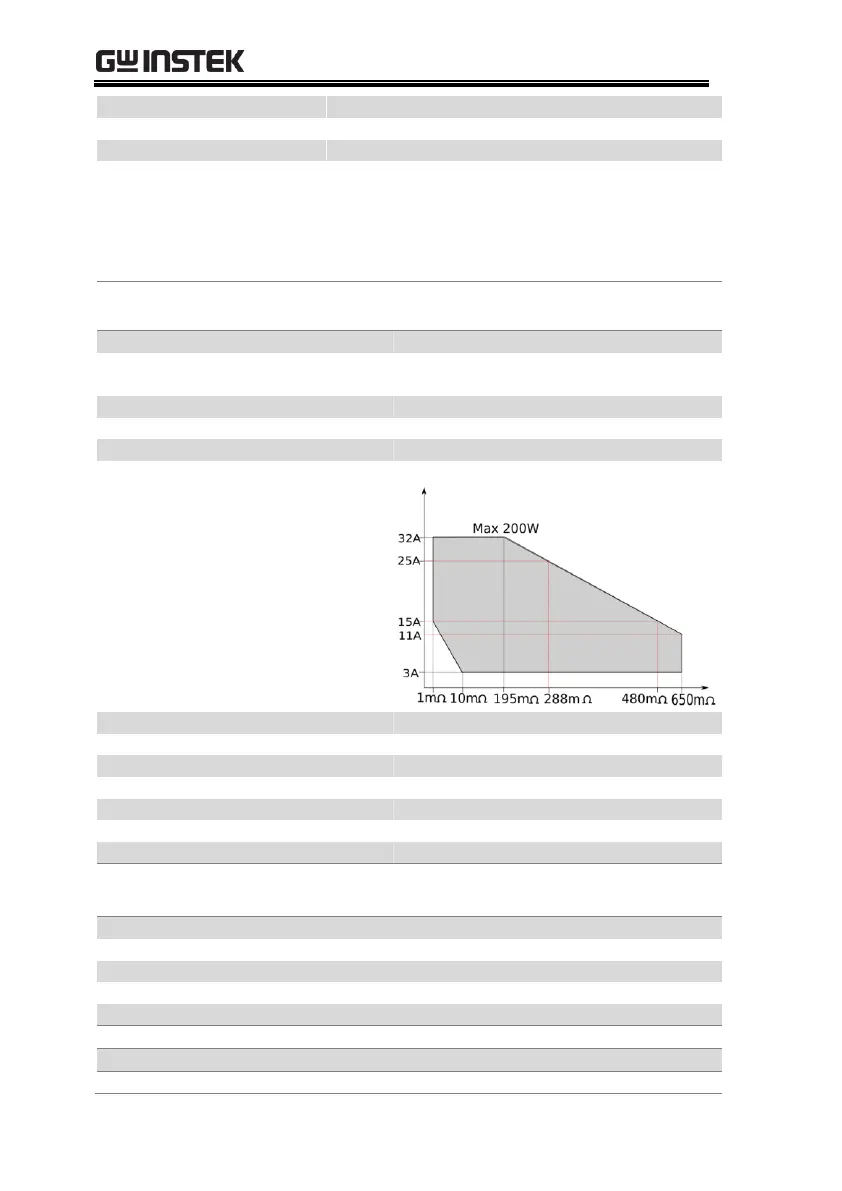

Ground Bond Test
Output Current Range
3.00A~32.00A
Output Current Accuracy
±(1% of setting+0.2A) when 3A≤I ≤8A
±(1% of setting+0.05A) 8A < I ≤ 32A
Output Current Resolution
0.01A
Test Voltage
Approximately max. 8VAC (open-circuit)
Frequency
50Hz/60Hz selectable
Ohmmeter Measurement Range
1mΩ ~ 650mΩ
Ohmmeter Measurement Resolution
0.1mΩ
Ohmmeter Measurement Accuracy
±(1% of reading+2mΩ)
Ohmmeter Judgment Accuracy
±(1% of setting+2mΩ)
Window Comparator Method
Yes
TIMER (Test Time)
0.3s~999.9s
TIMER Accuracy
+/-(100ppm+20ms)
GND
ON/OFF
Continuity Test
Output Current
100mA(DC)
Ohmmeter Measurement Range
0.10Ω~70.00Ω
Ohmmeter Measurement Resolution
0.01Ω
Ohmmeter Measurement Accuracy
±(10% of reading+2Ω)
Ohmmeter Judgment Accuracy
±(10% of setting+2Ω)
Window Comparator Method
Yes
TIMER (Test Time)
0.3s~999.9s
TIMER Accuracy
+/-(100ppm+20ms)
