OPERATION
45

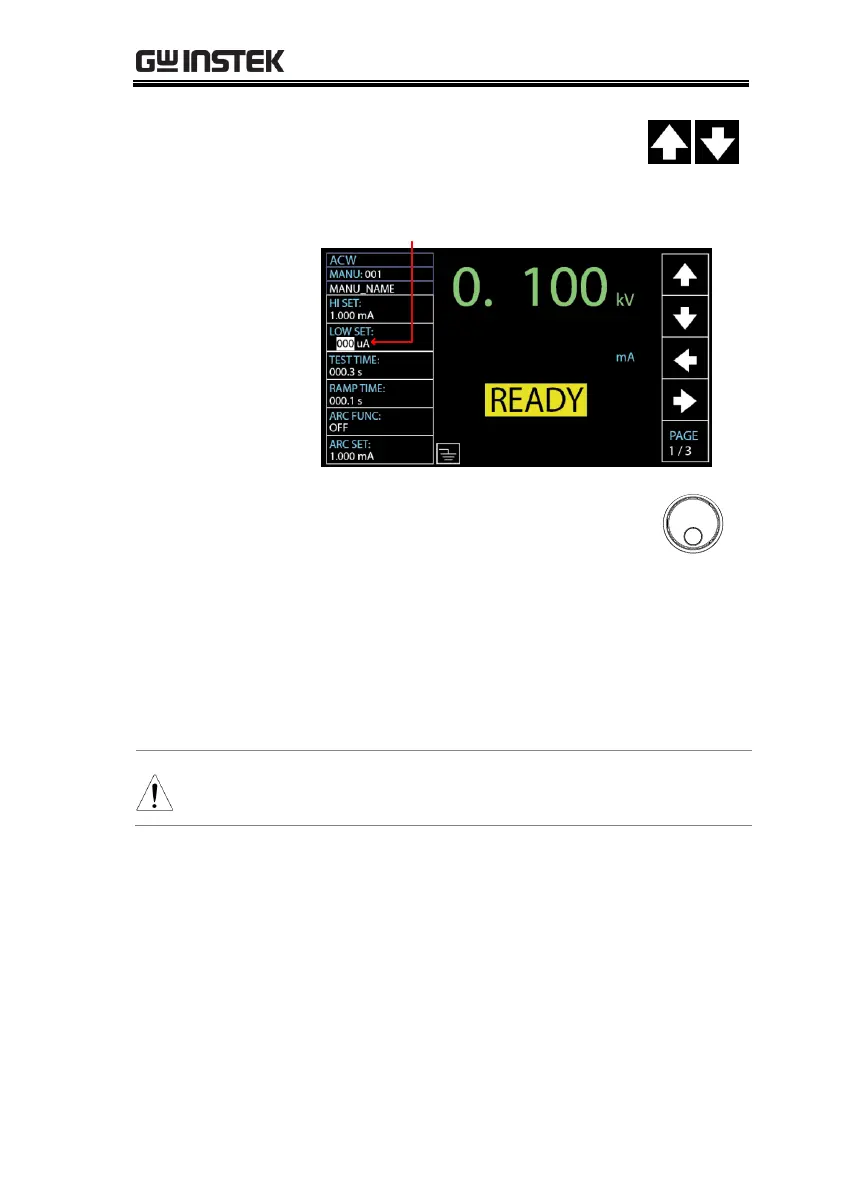

3. Press the UP / DOWN arrow soft-
keys to bring the cursor to the
LOW SET setting.
LOW SET cursor
4. Use the scroll wheel to set the
LOW SET limit.
ACW (LOW)
DCW (LOW)
IR (LOW)
GB (LOW)
CONT (LOW)
000µA~41.99mA (GPT-12XXX)
000µA~109.9mA (GPT-15XXX)
000µA~10.99mA (12XXX/15012)
001µA~20.99mA (GPT-15XXX)
000.1MΩ~49.99GΩ
000.0mΩ~649.9mΩ
00.00Ω~79.99Ω
Note
*Please note that the resolution of the measured
value depends on the resolution of HI SET setting.
