GPT-10000 Series User Manual
52
ACW
DCW
IR
000.0s~999.9s
000.0s~999.9s
000.0s~999.9s
Ramp Down
Duration
Indicator

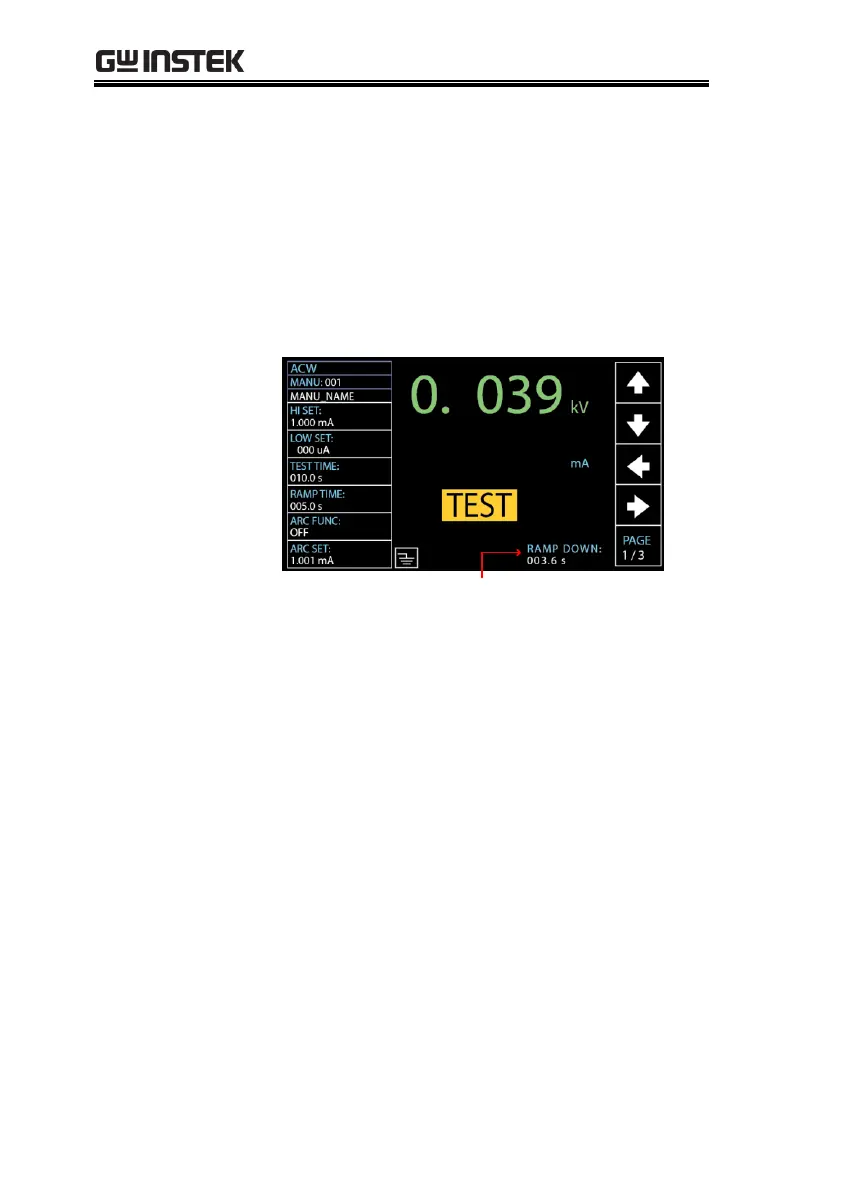

After the set TEST TIME is fully completed, a
section at the lower right corner of display
shows the counting duration of RAMP DOWN,
which will run to the set value by user. See the
screenshot shown below.
RAMP DOWN duration indicator
