GW Instek GPT-12004 User Manual

GPT-10000 Series User Manual
98
2. The tester will immediately restore back to the
READY status after PASS judgment. However,
if the PASS HOLD is activated, PASS judgment
will persist until the set duration of PASS
HOLD is fully met. Refer to page 65 for details.
In addition, pressing the STOP
button during the set duration of
PASS HOLD can return to READY
status immediately.
Note
The START button is disabled when the buzzer is
beeping.

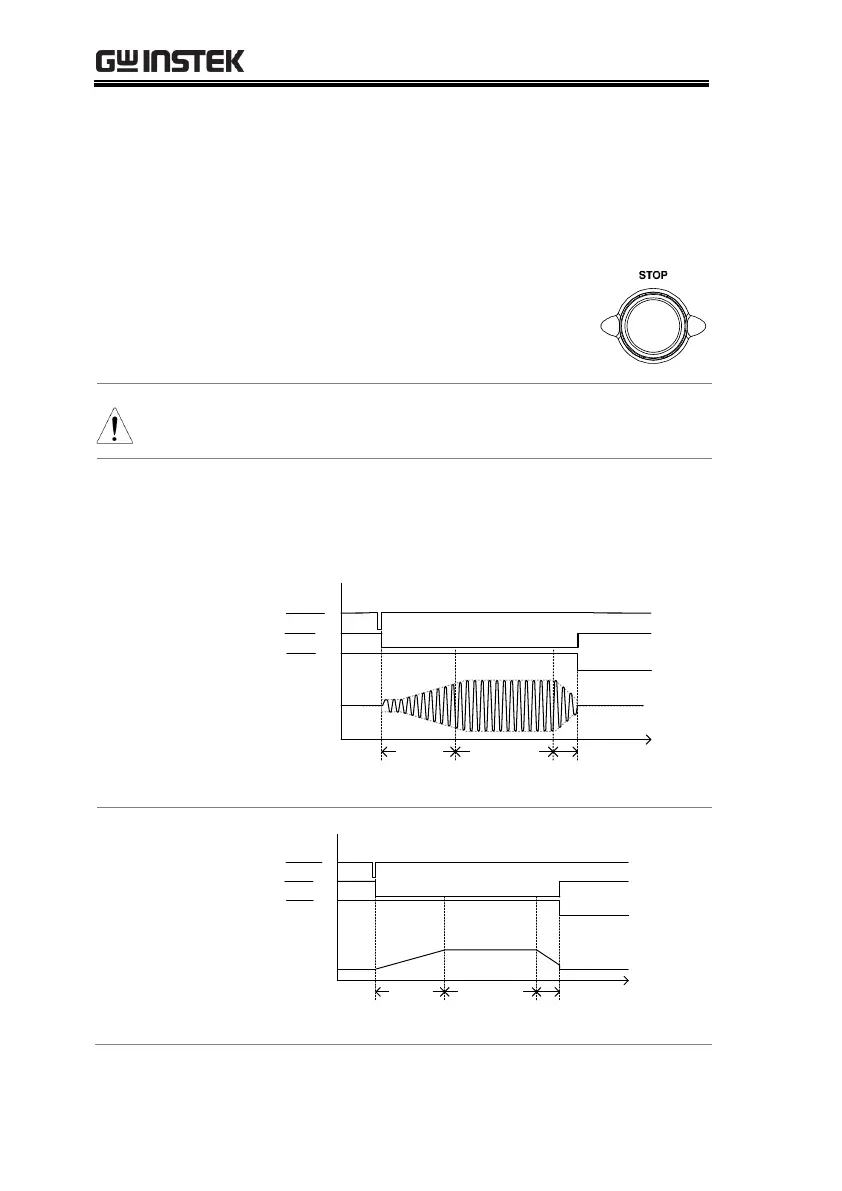

PASS Timing
Diagrams
The timing diagrams below show the ACW, DCW,
IR, GB and CONT timing for the START status,
TEST status and PASS judgment.
ACW PASS
Timing
RAMP DOWN
& DISCHARGE
Output V
time
START
TEST
PASS
RAMP
UP
TEST TIME
DCW PASS
Timing
Output V
time
START
TEST
PASS
RAMP
UP
TEST TIME
RAMP DOWN
& DISCHARGE
