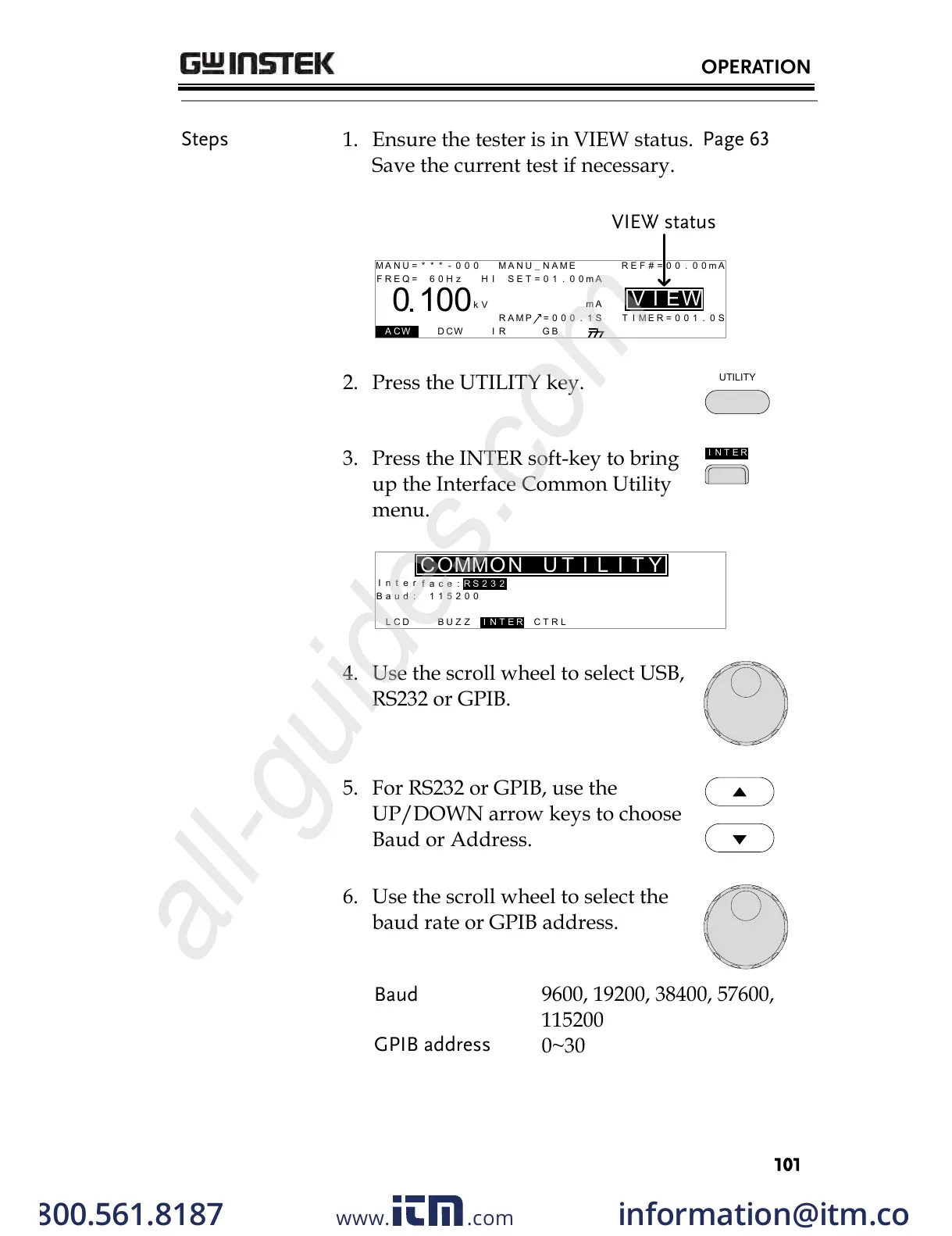

OPERATION
101
Steps
1. Ensure the tester is in VIEW status.
Save the current test if necessary.
Page 63
I R G B
E
A CW D CW
F R E Q = 0 H z 6
0
100
k V
EIV
MT I E = 0 0 1 . 0 SR
0 0 m AER F =# 0 .0
1 . 0 0 m AIH ES = 0T
0 0 . 1 S0A M P =R
W
MM A UN N A_0M A N U = * * * - 0 0
m A
VIEW status
2. Press the UTILITY key.
UTILITY
3. Press the INTER soft-key to bring
up the Interface Common Utility
menu.
N T EI R
I n t
L C D B U Z Z N T EI R C T R L
MOC MO
U N T I L I T Y
B u d :a 1 1 5 2 0 0
R S 2 3 2f a c :e
e r
4. Use the scroll wheel to select USB,
RS232 or GPIB.
5. For RS232 or GPIB, use the
UP/DOWN arrow keys to choose
Baud or Address.
6. Use the scroll wheel to select the
baud rate or GPIB address.
Baud
GPIB address
9600, 19200, 38400, 57600,
115200
0~30
