CONFIGURATION
113
Note
Function setting F-89 (Show Version) can only be
viewed, not edited.
Configuration settings F-90~ F-98 cannot be edited in
the Normal Function settings. Use the Power On
Configuration settings. See page 114 for details.

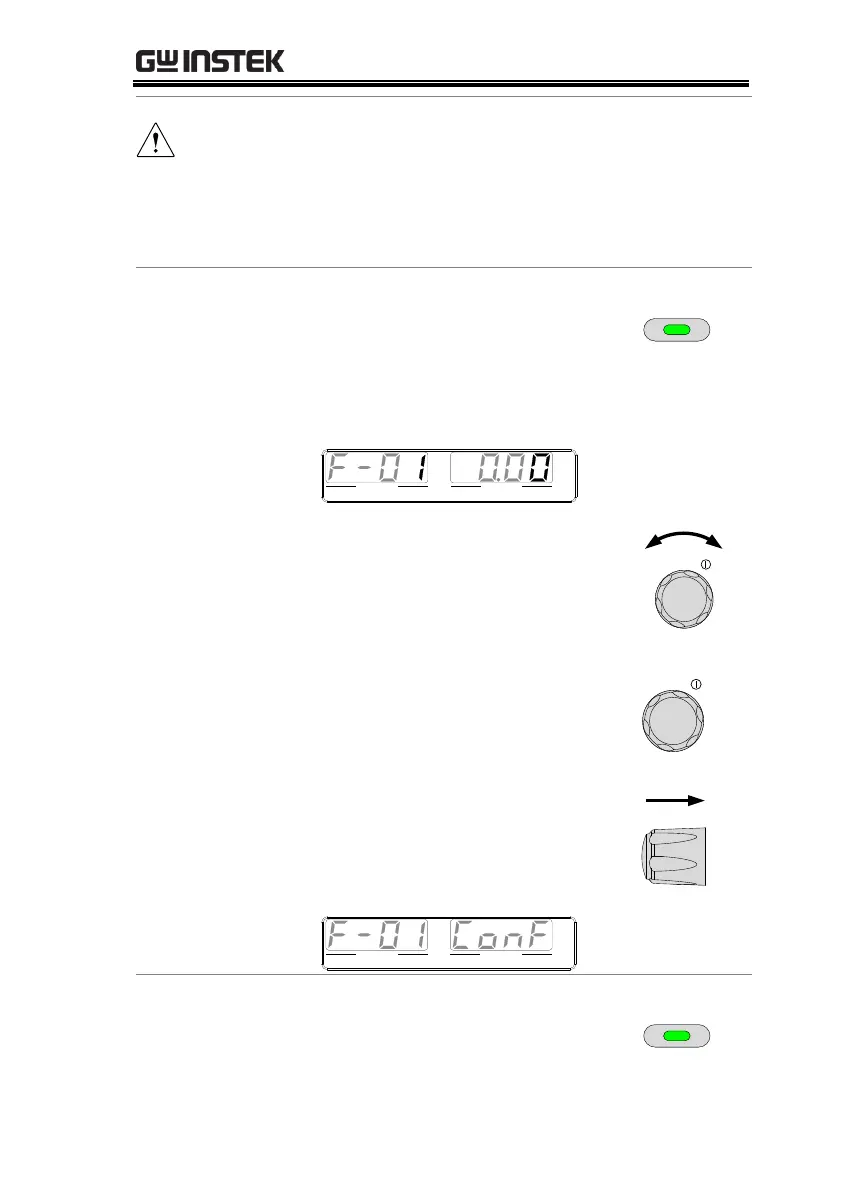

Steps
1. Press the Function key. The
function key will light up.
Function
2. The display will show F-01 on the left and the
configuration setting for F-01 on the right.
VOLTAGE CURRENT
VSR LAN RMT ERR DLY ALM ISR M 1 M 2 M 3 RUN
C V C C
V A
3. Rotate the Voltage knob to change
the F setting.
Voltage
Range
F-00~F-61, F-70~F-78,
F-88~F-98, F100~F122
4. Use the Current knob to set the
parameter for the chosen F setting.
Current
Press the Voltage knob to save the
configuration setting. ConF will be
displayed when it is configuring.
Voltage
VOLTAGE CURRENT
VSR LAN RMT ERR DLY ALM ISR M 1 M 2 M 3 RUN
C V C C
V A
Exit
Press the Function key again to exit
the configuration settings. The
Function key light will turn off.
Function
