PSU Series User Manual
150
Isolated External Current Control of Voltage Output
Background
Current control of the voltage output uses the
isolated current option (PSU-ISO-I). A current of
4~20mA is used to control the full scale voltage of
the instrument, where:
Output voltage = full scale voltage × ((external
current-4mA)/16mA)

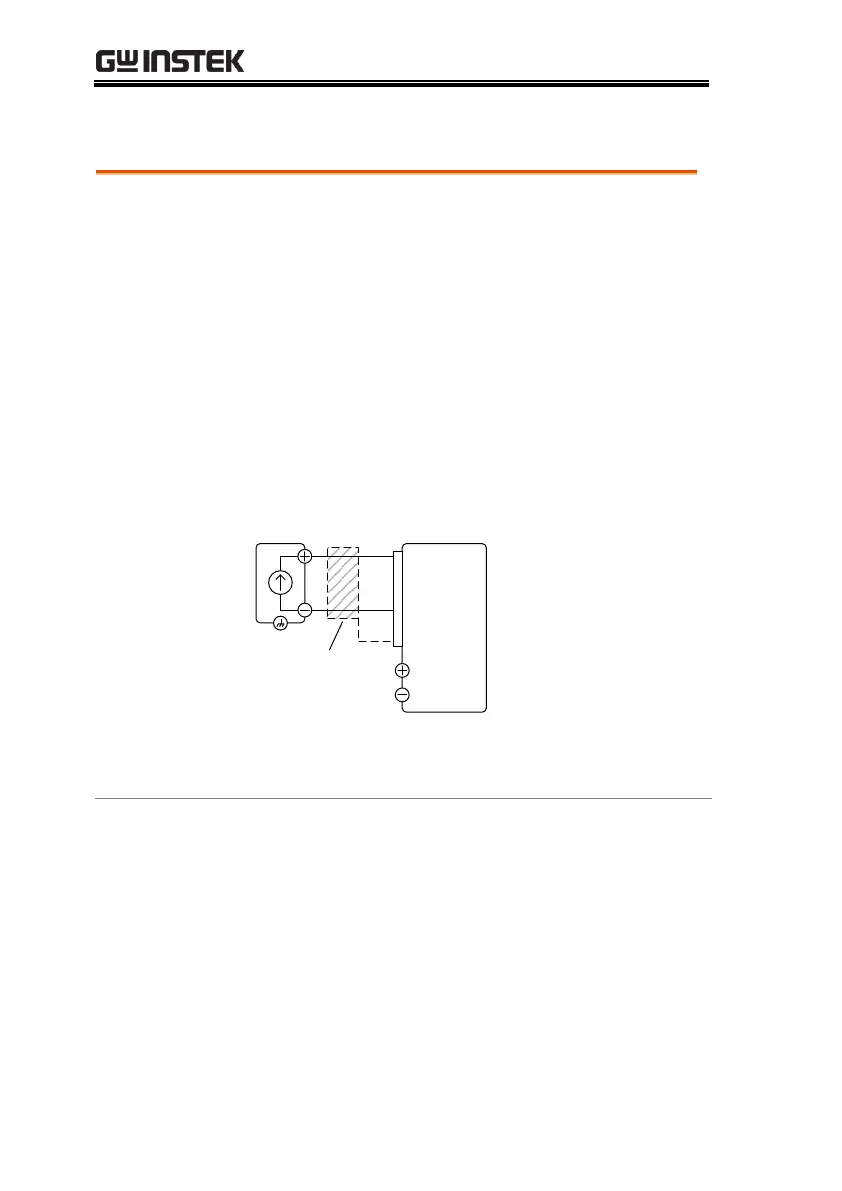

Connection
When connecting the external current source to the
isolated analog option, use shielded or twisted
paired wiring.
PSUEXT-I
Isolated
Current
Option
4
2
Output
Terminal
2 core shielded
wire or twisted
pair
1or8
 Pin4(GND_ISO) → EXT-I (-)
 Pin2(+VPROG_ISO) → EXT-I (+)
 Pin 1 or 8 (Shield) → Wire shield
