Using the Output Terminal Cover
Steps

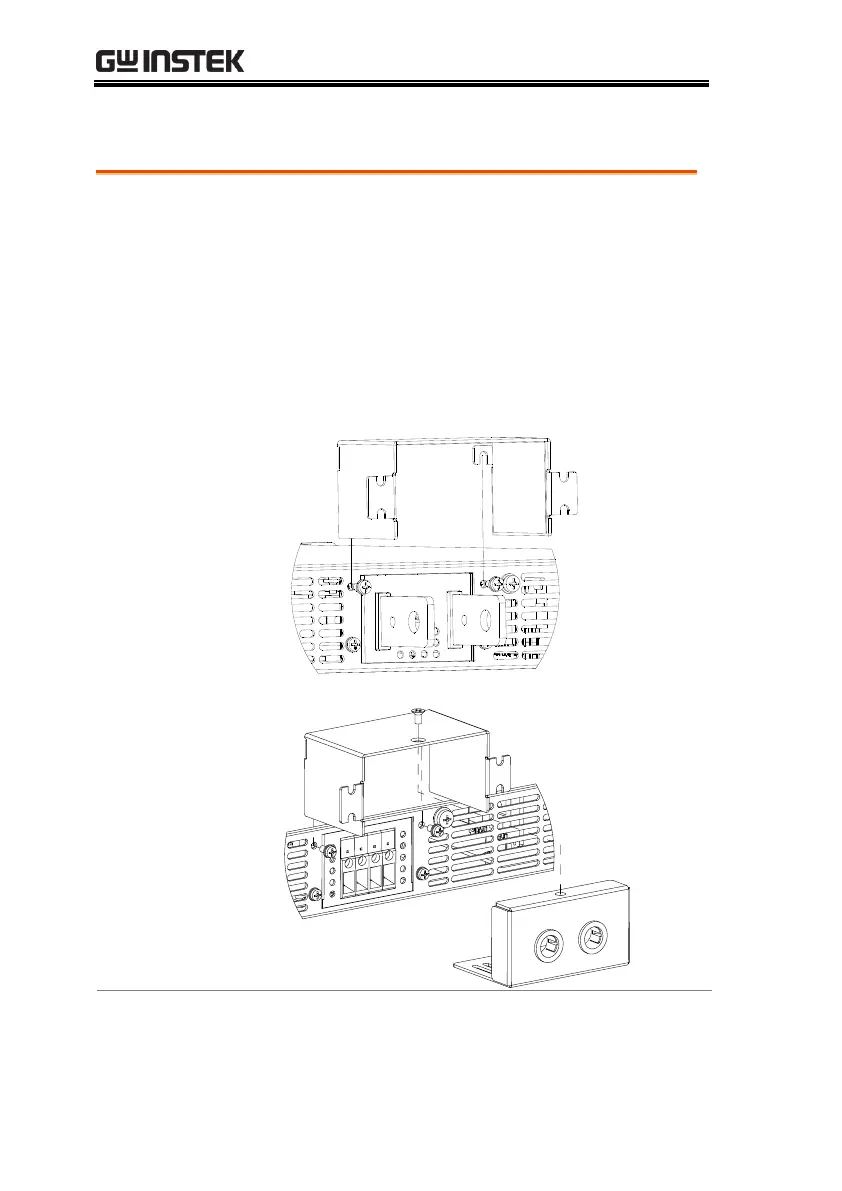

1. Partially unscrew the 2 screws beside the
terminals.
2. Line-up the notches in the cover with the 2
screws.
3. Tighten the screws to secure the cover over the
terminals.
(PSU 6-200, 8-180,
12.5-120, 15-100,
20-76, 30-50,
40-38, 50-30,
60-25)
2-M3x6L SCREW
(PSU 80-19,
100-15, 150-10,
300-5, 400-3.8,
600-2.6)
Removal
Reverse the procedure to remove the terminal
covers.
