OPERATION
43
Using the Rack Mount Kit
The PSU series are designed to be directly
mounted into 19 inch 1U rack mounts.
The PSU can be installed using the sliding mounts
(GW Part number: GRM-001). See the GRM-001
manual for installation instructions.

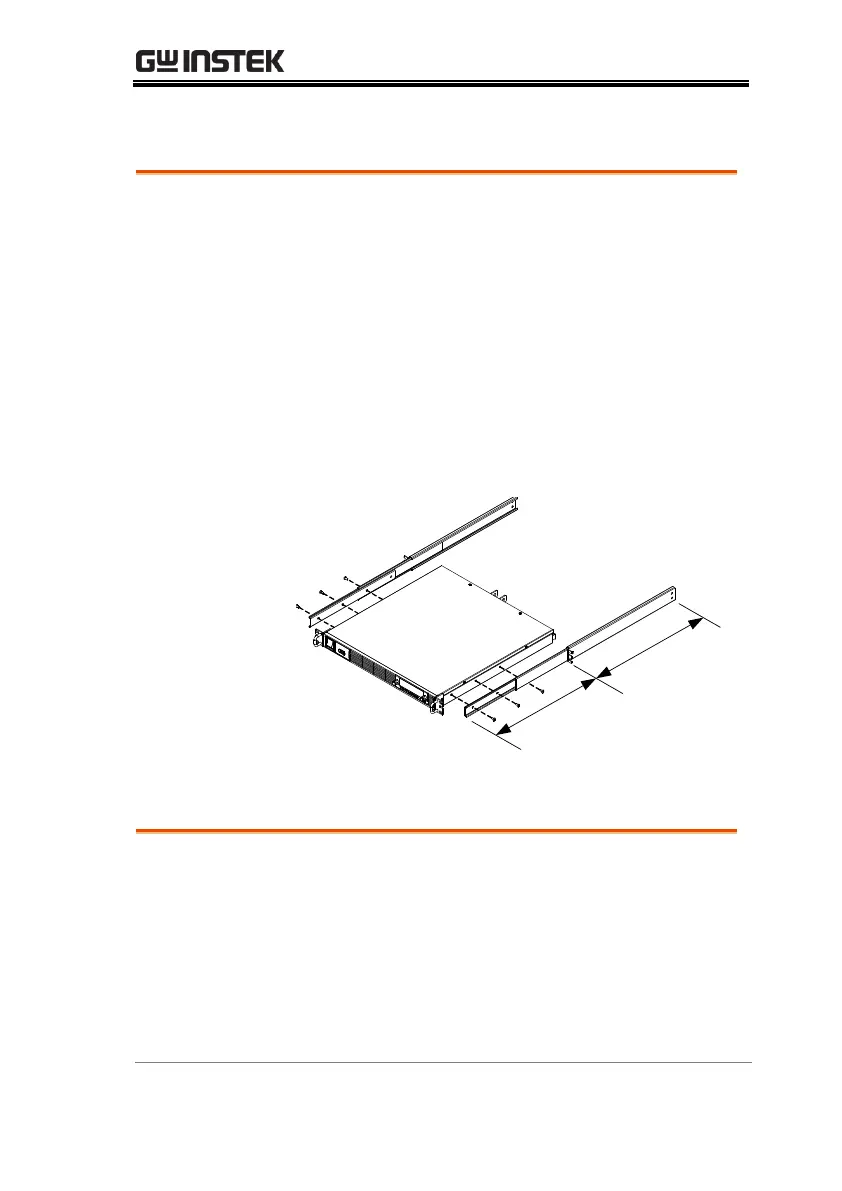

Rack mount
diagram: Sliding
mounts
The following diagram shows the approximate
dimensions of the GRM-001 sliding mounts. These
sliding mounts should only be used within racks with
a depth of 500mm.
How to Use the Instrument
The PSU power supplies use a novel method of
configuring parameter values only using the
voltage or current knobs. The knobs are used to
quickly edit parameter values at 0.01, 0.1 or 1 unit
steps at a time.
When the user manual says to set a value or
parameter, use the steps below.
