ANALOG CONTROL
121
External Voltage Control of Voltage Output
Background
External voltage control of the voltage output is
accomplished using the analog control connector
on the rear panel. There are two external voltage
control ranges, 0~5V and 0~10V, depending on the
F-97 configuration. See page 110 for details.
For 0~10V:
Output voltage = full scale voltage x (external
voltage/10)
For 0~5V:
Output voltage = full scale voltage x (external
voltage/5)

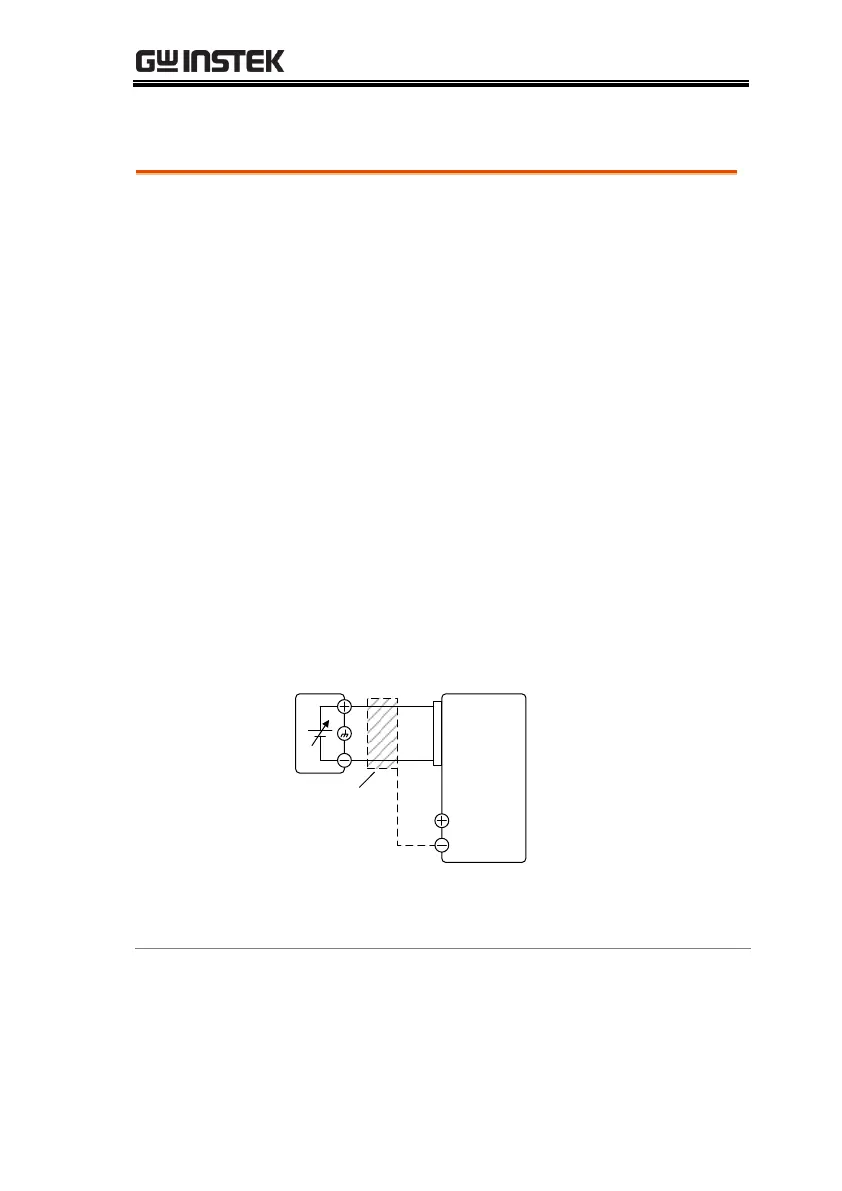

Connection
When connecting the external voltage source to the
analog connector, use shielded or twisted paired
wiring.
PSUEXT-V
Analog
connector
23
22
Output
Terminal
2 core shielded
wire or twisted
pair
Pin23 → EXT-V (-)
Pin22 → EXT-V (+)
Wire shield → negative (-) output terminal
