PSU Series User Manual
122

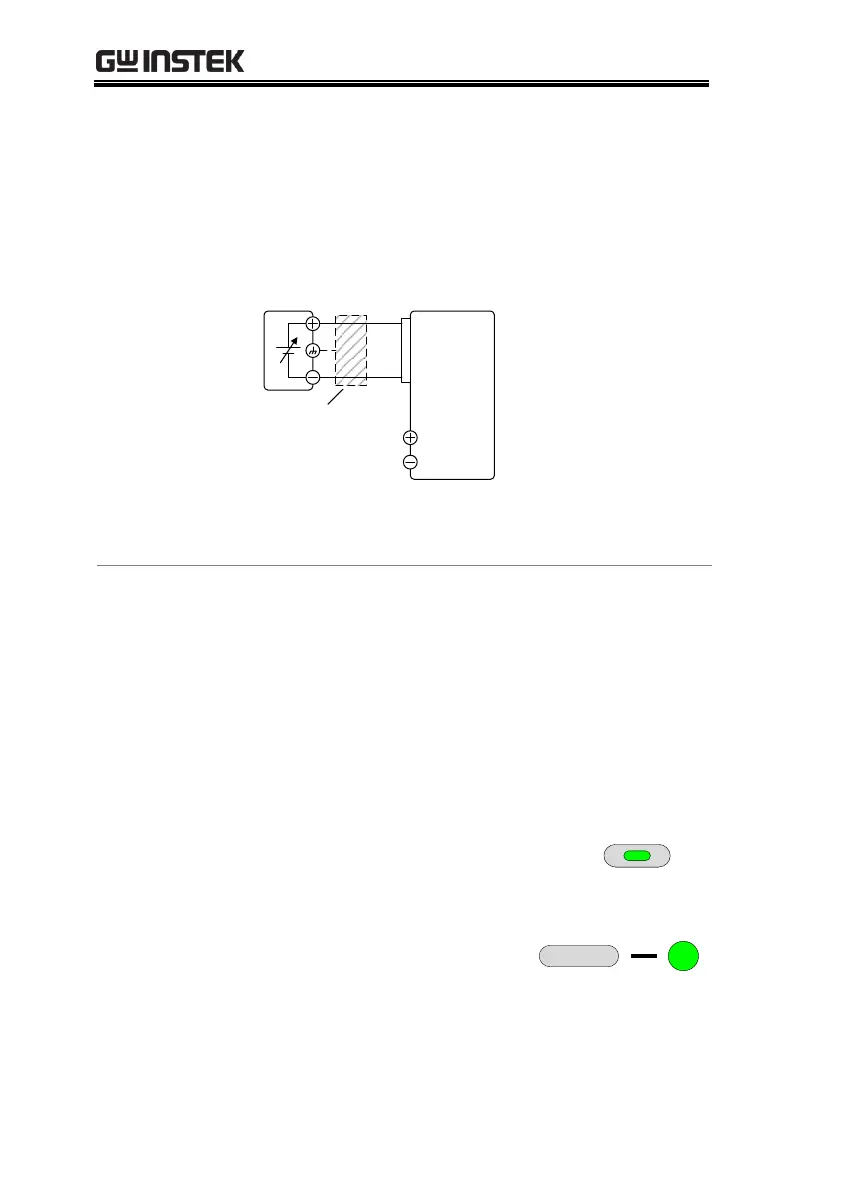

Connection- alt.
shielding
If the wire shield needs to be grounded at the
voltage source (EXT-V), then the shield cannot also
be grounded at the negative (-) terminal output of
the PSU power supply. This would short the
output.
PSUEXT-V
Analog
connector
23
22
Output
Terminal
2 core shielded
wire or twisted
pair
Pin23 → EXT-V(-)
Pin22 → EXT-V(+)
Wire shield → EXT-V ground (GND)
Panel operation
1. Connect the external voltage according to the
connection diagrams above.
2. Set the F-90 power on
configuration setting to 1 (CV
control Ext voltage).
Page 114
Be sure to cycle the power after the power on
configuration has been set.
3. Press the Function key and confirm
the new configuration settings
(F-90=1).
Function
4. Press the Output key. The
voltage can now be
controlled with the External
voltage.
Output
