PSU Series User Manual
146

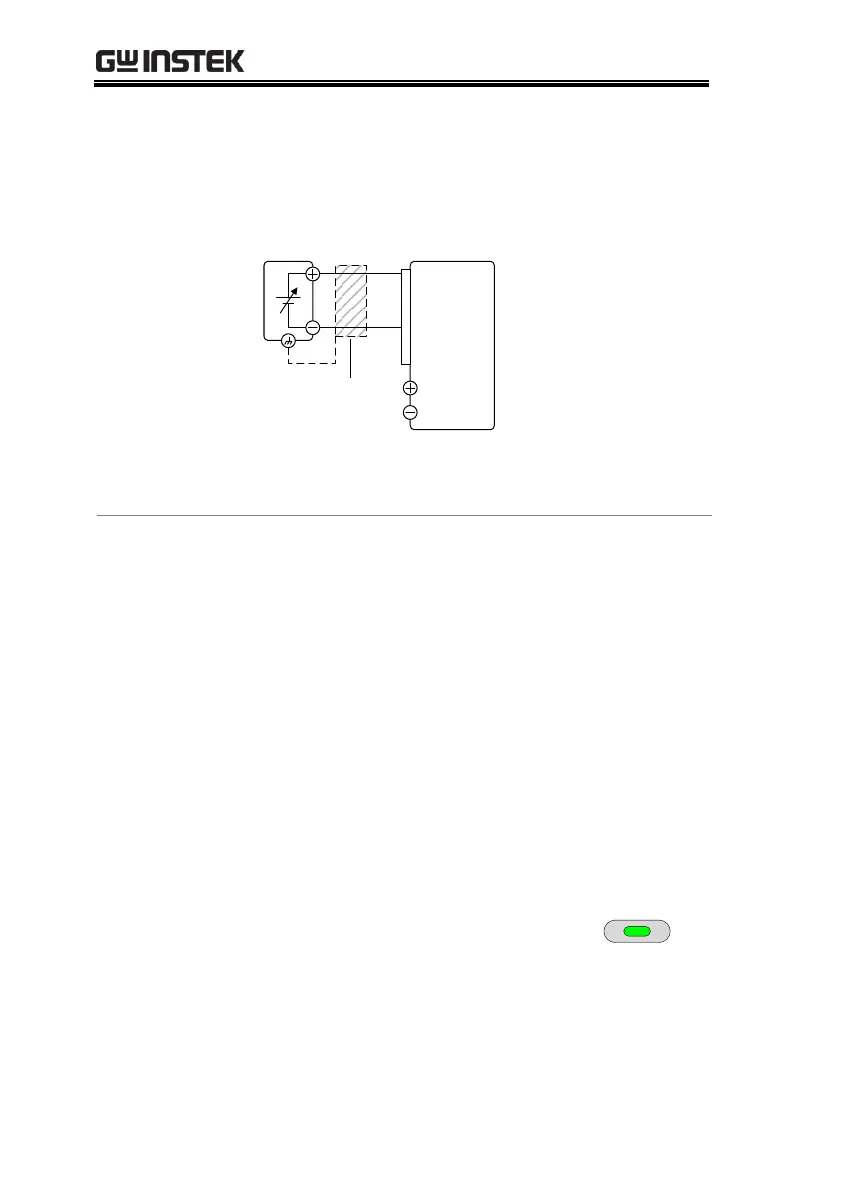

Connection- alt.
shielding
If the wire shield needs to be grounded at the
voltage source (EXT-V), then it can be connected as
shown below.
PSUEXT-V
Isolated
Voltage
Option
4
2
Output
Terminal
2 core shielded
wire or twisted
pair
Pin4(GND_ISO) → EXT-V (-)
Pin2(+VPROG_ISO) → EXT-V (+)
EXT-V ground (GND) → Wire shield
Panel operation
1. Connect the external voltage according to the
connection diagrams above.
2. Set the F-90 power on
configuration setting to 4 (Control
by Isolated Board).
Page 114
3. Set the F-97 power on
configuration setting to 0 (0~5V
control range) or to 1 (0~10V
control range).
Page 114
Be sure to cycle the power after the power on
configuration has been set.
4. Press the Function key and confirm
the new configuration settings
(F-90=4, F-97=0 or 1).
Function
