PSU Series User Manual
168
F-72 = 0 or 1
Data bits: 0=7 or 1=8
F-73 = 0 ~3
Parity: 0 = none, 1 = odd, 2 =
even
F-74 = 0 or 1
Stop bits: 0 = 1, 1 = 2
F-75 = 0
TCP: 0 = SCPI
F-76 = 00~30
UART address for multi-unit
remote connection.
F-77 = 0
Disable Multi-Drop mode.

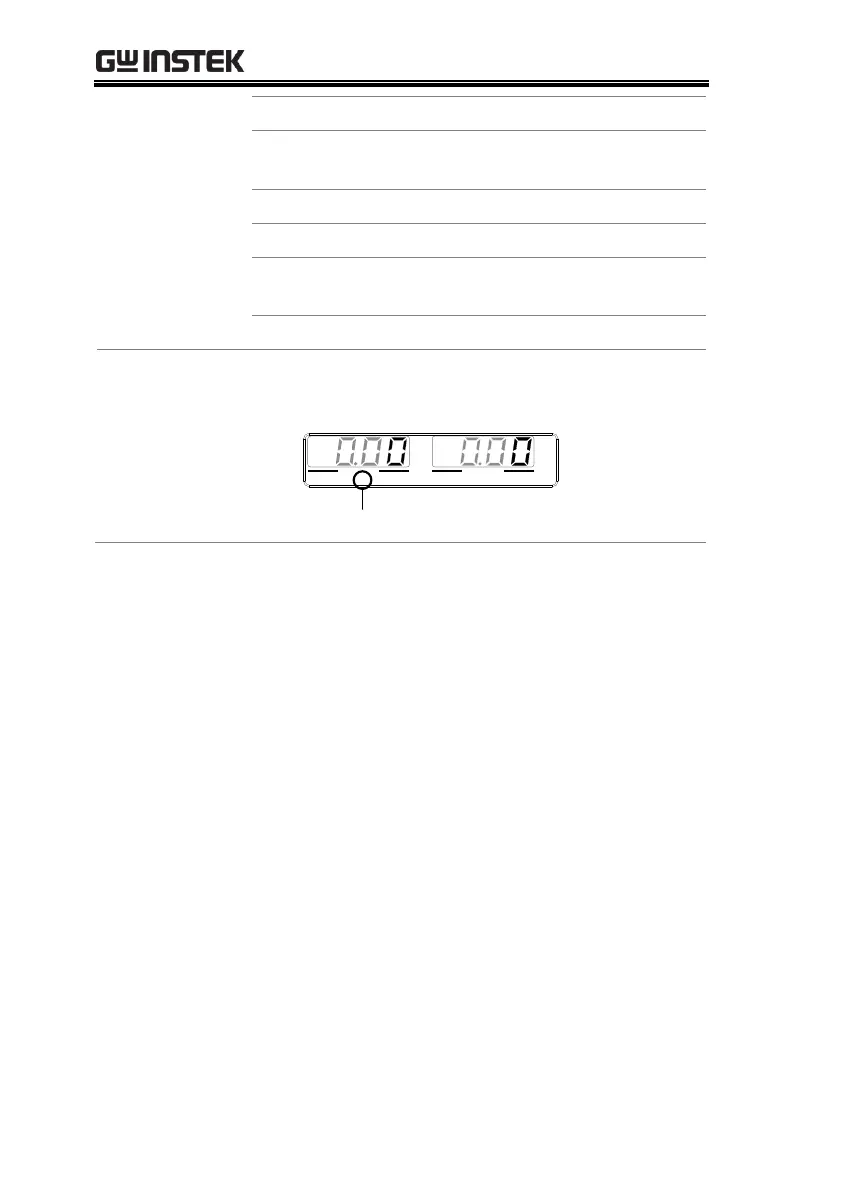

4. The RMT indicator will turn on when a remote
connection has been established.
RMT indicator
AV
VOLTAGE CURRENT
VSR LAN RMT ERR DLY ALM ISR M 1 M 2 M 3 RUN
C V C C
