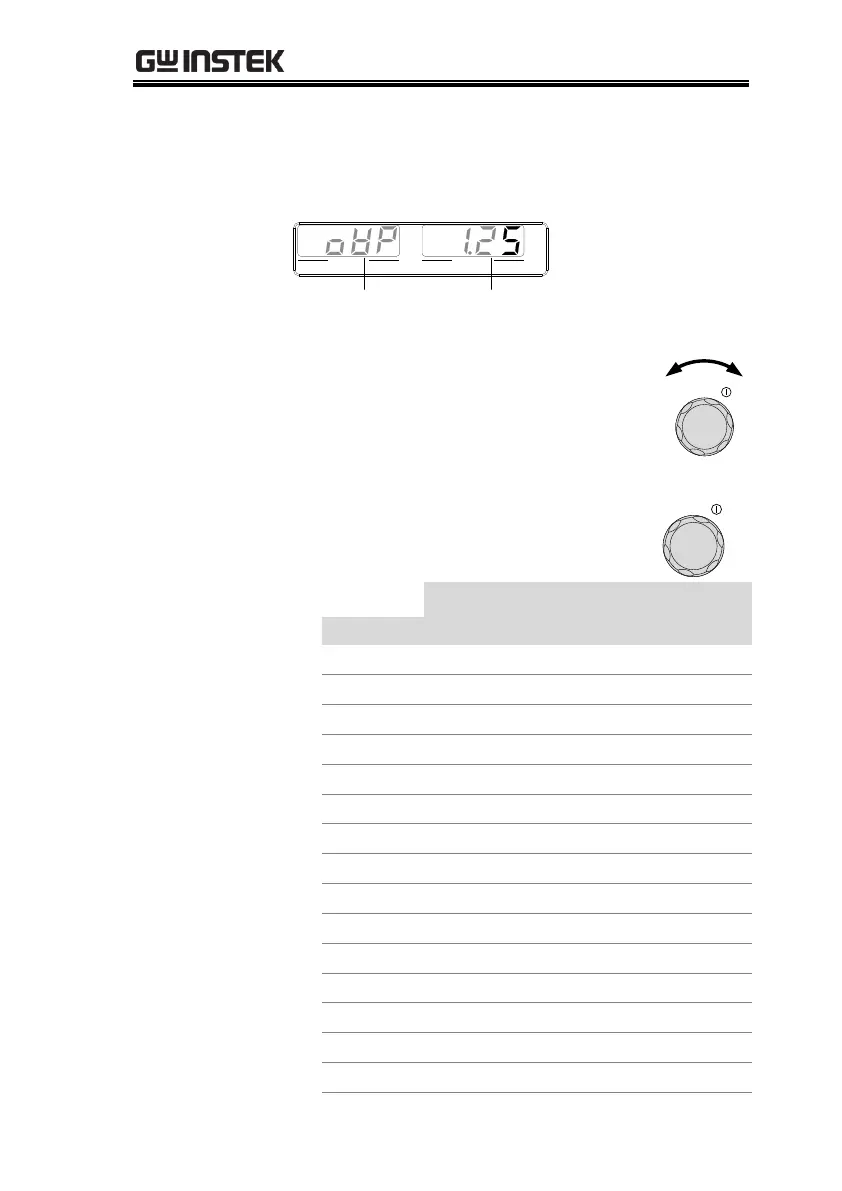

2. The OVP protection function will be displayed
on the voltage display and the setting will be
displayed on the current display.
Protection
function
VOLTAGE CURRENT
VSR LAN RMT ERR DLY ALM ISR M 1 M 2 M 3 RUN
C V C C
V
Protection
setting
A
Choose a
Protection
Function
3. Use the Voltage knob to select a
protection function.
Voltage
Range
OVP, OCP, UVL
Setting the
Protection Level
4. Use the Current knob to set the
protection level for the selected
function.
Current
Setting Range
PSU Model
OCP
OVP
UVL
6-200
5~220
0.6~6.6
0~6.3
8-180
5~198
0.8~8.8
0~8.4
12.5-120
5~132
1.25~13.75
0~13.12
15-100
5~110
1.5~16.5
0~15.75
20-76
5~83.6
2~22
0~21
30-50
5~55
3~33
0~31.5
40-38
3.8~41.8
4~44
0~42
50-30
3~33
5~55
0~52.5
60-25
2.5~27.5
5~66
0~63
80-19
1.9~20.9
5~88
0~84
100-15
1.5~16.5
5~110
0~105
150-10
1~11
5~165
0~157.5
300-5
0.5~5.5
5~330
0~315
400-3.8
0.38~4.18
5~440
0~420
600-2.6
0.26~2.86
5~660
0~630
